Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | FR300 |
Minimum Order Quantity: | 1000 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | ABS | Chipset: | MTK 7620N |
---|---|---|---|
Flash: | 4M | RAM: | 32M |
Band: | 2.4GHz-2.483GHz | Port: | 1*10/100 WAN, 4*10/100 LAN |
High Light: | 300mbps wireless n router,wireless n dual band router |

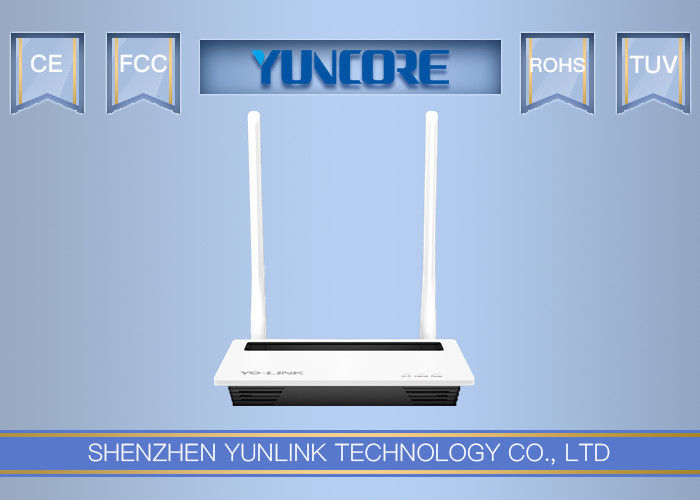

Comply with IEEE 802.11n 2T2R MIMO Technology, equipped with 6dBi omni antennas, FR300 provides 300Mbps high transmission rate to guarantee the freely Ethernet at home or office.
Support multiple SSID and tag VLAN, offer wireless network isolation to ensure the safety of different guest networking. It support QoS based on IP Address and MAC address to control the end user’s bandwidth.
Optimized user interface, multiple operation including Gateway, Wireless AP, WiFi Repeater, and cloud server remote management, user easy to setup and maintenance the stable wireless signal in different environment.
Features:
1. Support Multi SSID up to 4
2. Supports PPPoE/Dynamic IP/Static IP
3. OpenWRT Supported
Spec:
Standard | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,CSMA/CA,CSMA/CD,TCP/IP,DHCP,ICMP,NAT,PPPoE | ||
Chipset | MTK MT7620N | ||
Interface |
LAN 3*10/100M Auto MDI/MDIX RJ45 ports.; WAN 1*10/100M Auto MDI/MDIX RJ45 port Reset button |
||
SDRAM | 32M | ||
Flash | 4M (Max 8M) | ||
Antenna | 2* 6dBi omni fix Antenna | ||
LED | PWR, NET, WIFI | ||
Size | 176.9mm*120.2mm*29.0mm | ||
Weight | 200g | ||
Frequency Band | 2.4GHz-2.4835GHz | ||
Data Rate |
11n: 300/270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps 11g: 54/48/36/24/18/12/9/6M(adaptive) 11b: 11/5.5/2/1M(adaptive) |
||
RF Output Power |
11n: @MCS7:14±2DB, @MCS0:16±2 DB. 11g: @54M:15±2DB, @6M:17±2 DB. 11b: @11M:18±2DB, @1M:19±2 DB. |
||
Transmission Distance | Indoor :50m | ||
Access Protocol | CSMA/CA,CSMA/CD,TCP/IP,ICMP,NAT,PPPoE, DHCP , Wired static , Wifi Client ,UDP, DDNS, | ||
Security | WEP 64/128bit;MAC based Association; SSID broadcast disable; Wi-Fi Protection Access (TBD),WPA,WPA2, Built-in firewall | ||
Receive Sensitivity |
11n: -65dbm@MCS7, -88dbm@MCS0. 11g: -70dbm@54Mbps, -88dbm@6Mbps. 11b: -80dbm@11Mbps, -94dbm@1Mbps, |
||
Channels: |
2412~2462 MHz (US) 11 channels 2412~2472 MHz (EU) 13 channels 2412~2484 MHz (Japan) 14 channels |
||
WLAN Modulation Scheme | BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM) | ||
SDRAM | 32M | ||
Flash | 4M (Max 8M) | ||
Antenna | 2* 6dBi omni fix Antenna | ||
LED | PWR, NET, WIFI | ||
Operation Temperature | 0°C ~ 50°C ambient temperature | ||
Storage Temperature | -20°C~ 70°C ambient temperature | ||
Humidity | 5% ~ 95% (Non-condensing) | ||
Power | (Output DC12V, 05A;Input 110V/220V) | ||
Support system | Windows® 2000, XP 32/64, Vista 32/64, Linux,MAC,Windows 7 |
Working Diagram:
