Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | MR700 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | Metal | Chipset: | RTL8309M |
---|---|---|---|
PoE: | IEEE802.3af | Power: | 72W |
Port: | 8*10/100 PoE Port | Giftbox: | White Neutral |
High Light: | home network router,network distribution box |

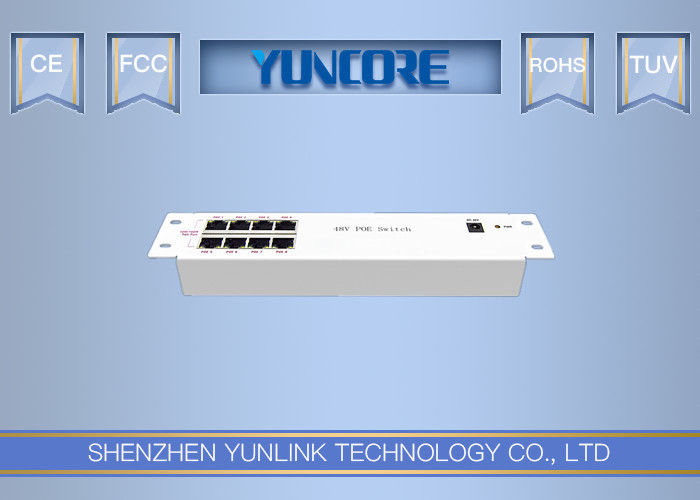

Easy Installation in Network Distribution Box 8 Port 10 / 100M IEEE802.3 af PoE Switch
MR700 is a home use 48V PoE switch. It with 8 faster PoE ports, all ports support auto-negotiation, auto MDI/MDIX, comply with IEEE 802.3af active PoE standard, build in network/electronic distribution box to supply PoE Power and Data Rate for connected wireless AP, IP Camera, IP Phone...
Spec:
Model | MR700(72W) |
Standard |
IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX ANSI/IEEE 802.3 N Way IEEE802.3x IEEE802.3af |
Ports |
8*10M/100M RJ45 Ports, support 48V PoE, IEEE 802.3af 1*DC Injector: 48V/1.5A |
Ports Features |
10/100Mbps data rate Support auto Negotiation /auto MDI/MDIX RJ45 Ports IEEE802.3X Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
Cable requirement | 10/100BASE-TX: UTP 5 cable(≤100 meters) |
LED Indicator | POE, LINK, POWER |
Backplane Bandwidth | 1.6 Gbps |
Forwarding Capability | 1.33Mbps |
MAC Address Table |
MAC Address Auto-Learning and Auto-Aging. MAC Address Table: 2K |
POE Power |
Total PoE Power: 72W, Overload Protection: 72W Max PoE Power of each port: 15W |
Size | 229mm * 49.5mm * 28.0mm |
Input Power | DC 48V 1.5A |
Working Temperature | -20℃~50℃ |
Working Diagram:
