| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | MR470 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | Metal | Chipset: | RTL8197FH+RTL8367RB |
|---|---|---|---|
| Flash: | 16M | RAM: | 128M |
| PoE: | 48V Passiv PoE | Power: | 72W |
| Port: | 1*10/100/1000 WAN, 4*10/100/1000 LAN | Giftbox: | White Neutral |
| High Light: | home network router,network distribution box |
||
48V IEEE 802.3af Standard PoE Out Web GUI Management Design for Home Smart Router
MR470 is a smart router with CAPWAP Protocol WLAN controller, (PoE) Ethernet switch, Authentication gateway functions. Build in network/electronic distribution box, it supply Ethernet for PC, IPTV or other entertainment device, then supply PoE power and Ethernet together for in wall wireless AP to bring seamless wireless coverage for each corner.
There are 4*10/100/1000Mbps PoE ports, all ports comply with IEEE 802.3af standard, but automatically to detect the PD equipment and supply 48V PoE power if need;
When connect with PC, easy to login WEB interface to setup MR470 or centralized to configure and manage the connected wireless AP.
There is 1*10/100/1000Mbps WAN port, support PPPoE, Dynamic IP, Static IP, when connect to different ISP network, MR470 will automatic to detect the network type and supply Internet to LAN and PoE ports.
Work with CAPWAP Wireless AP to supply full Wi-Fi coverage, then configure in central, maintain in remote through cloud server, members can solve the network problems at any place and any time.
Besides that, it is an authentication gateway also, support local authentication and remote authentication under cloud server, especially captive portal authentication like Google login, Facebook Login, WeChat Login, SMS Login...
Spec:
| Hardware | |
| Model | MR470 |
| CPU | RTL8197FH+RTL8367RB |
| Flash | 16MB |
| SDRAM | 128MB |
| PoE Output | 48V, IEEE 802.3af Standard. |
| PoE Power | 72W in total, max 10W for each RJ45 port. |

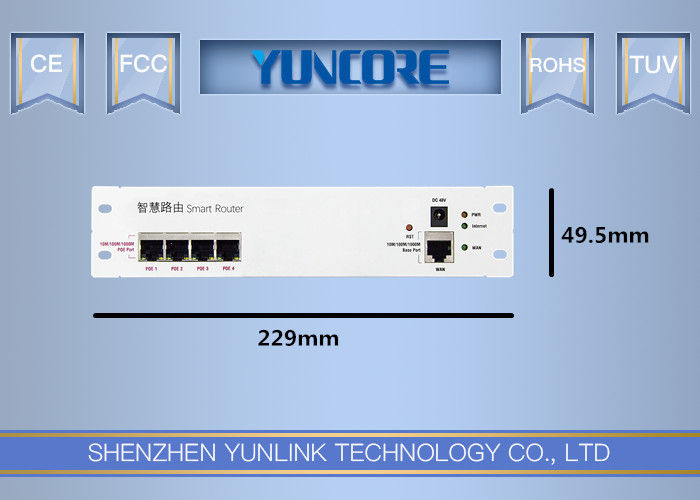

| Size | 229mm * 49.5mm * 28.0mm |
| Weight | ＜300g |
| Interface |
1 * 10/100/1000Mbps WAN port 4 * 10/100/1000Mbps PoE ports, IEEE 802.3af standard 1 * DC port, 48V/1.5A 1 * Reset Button |
| Reset | Reset Button, press 10 seconds to revert to default data. |
| LED Indicator | PWR(Power), NET(Internet), WAN |
| Power Consumer | ＜8W |
| Working Environment |
Working Temperature: -20℃ ～ +50℃ Storage Temperature: -40℃ ～ +70℃ Humidity:5％～95％ (No condensation) |
| Accessory | 72W Power adapter; 2PCS DC Power cable, 1PC AC Power cable, User Manual |
Working Diagram:
