Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | XD6800 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | ABS | Color: | White |
---|---|---|---|
Chipset: | Realtek | Flash: | 16M |
RAM: | 128M | Band: | 2.4G + 5.8G |
Power: | 1000mW | LED: | Yes |
High Light: | ceiling access point,802.11 ac ap |

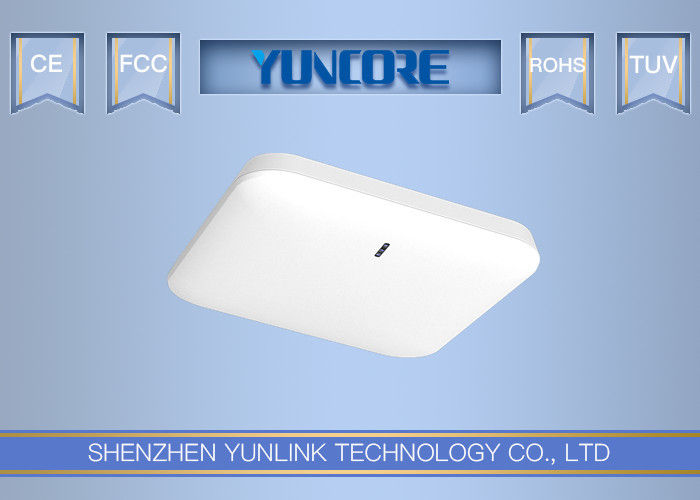

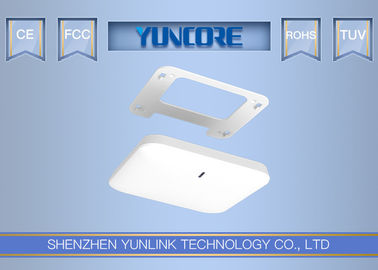

Realtek Chipset Wall - Mounted 1000mW WiFi Repeater 802.11ac Dual Band Wireless AP
XD6800 is an Qualcomm Chipset high power industrial Ceiling Wireless Access Point with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN & LAN port, fast Ethernet data rate make more than 100 end users can access into XD6900 to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall...
High Power for more range and stable signal
Designed in two line Power Amplifier on PCB board, the power can be 1000mW high power, 5dBi MIMO high gain antenna, together with Ceiling mount, greatly increase the wireless range and supply the stable wifi signal for users.
Power over Ethernet
XD6900 has integrated passive / IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Access Controller System & Cloud Management System
With Access Control System, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....
Then work with Cloud Management System, easy to do central and remote management, advertisement and multiple captive portal authentication make this AP more professional in WiFi Projects.
SPECIFICATION
Wireless | |
Standard |
802.11ac/b/g/n, MIMO technology |
Speed |
900Mbps compatible with 5.8GHz
300Mbps b/g/n for 2.4GHz |
Modulation |
OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK |
Channel |
Ch.1-13 for 2.4GHz
Ch.36-165 for 5.8GHz |
Frequency band |
2.412Ghz-2.472 for 2.4GHz
5.180Ghz-5.825Ghz for 5.8GHz |
Hareware |
|
Chipset |
Atheros QCA9563 + QCA9882 +QCA8334 |
Memory |
128MB DDR2 RAM |
Flash |
16MB |
Interface |
1 * 10/100 /1000Mbps RJ45 WAN Port 1 * 10/100 / 1000Mbps RJ45 LAN Port 1 * Reset button, press 15 seconds to revert to default setting |
Antenna |
Build in 5dBi MIMO Antenna |
Power consumption |
30W(Full Load) |
Software |
|
Standard Version |
Bandwidth: 20Mhz, 20/40Mhz, 80Mhz |
Operation Mode |
Gateway, Wireless AP, Repeater, WISP |
SSID No |
4 SSID for 2.4G, 4SSID for 5.8G |
Factory Default Setting |
Yes |
Centralized Management by software |
Yes |
Firewall |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
Protocols |
IPv4 |
Working Diagram:
