| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | PW560 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | ABS | Band: | 2.4G |
|---|---|---|---|
| Flash: | 16M | RAM: | 64M |
| Working Mode: | AP, Router, Repeater | Encryption: | WEP, WPA/WPA2, WPA/WPA2-Personal(TKIP/AES) |
| High Light: | in wall wifi access point,wall plate wireless access point |
||

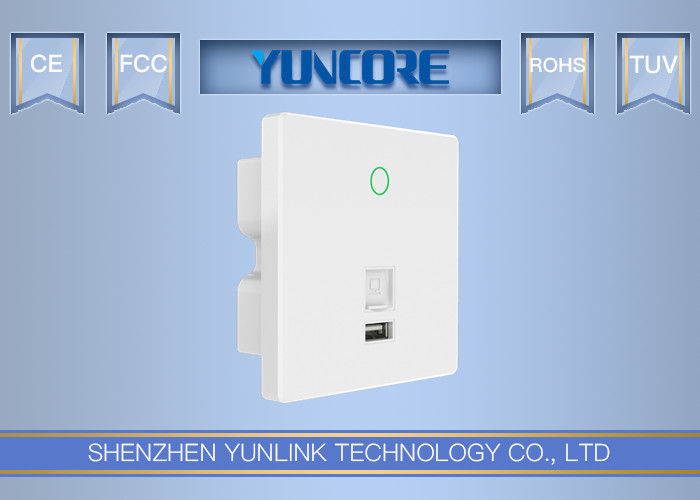

300Mbps Data Rate USB Charger Touchable WiFi Switch Wall Socked In Wall WiFi AP
Description:
PW560 is an 300Mbps wall mount style wireless access point with Qualcomm Chipset, 300Mbps fast data rate, designed for hotel/home mainly to provide secure Internet access and USB power for mobile phone, iPad, guest room, living room and lobby.
It support PoE power, comply with IEEE 802.3af 48V active standard, work with PoE switch, allow both power and data to be carried over a single Ethernet cable, easy to setup and cost savely.
Work with Yunlink’s Access Controller System and cloud management system, easy in central configuration, meet with different advertisement and multi authentication requirement , professional and cost effectively in large area Wi-Fi solution
Main Features:
Compatible with 802.11n wireless technology, 2.4GHz, 300Mbps data rate
1 * 10/100Mbps WAN port, 1 * 10/100Mbps LAN port, 1*USB charge port
8M Flash + 64M DDRII RAM, more stable performance in wireless
Easy setup, remote and central managed by access controller system and Cloud management system
Spec:
| HARDWARE FEATURES | |
| Interface |
1 * 10/100Mbps WAN Port 1 * 10/100Mbps LAN Port 1 * USB 2.0 Charge Port 1 * Wi-Fi on/off switch |
| Button | Reset Button, press 15 seconds to revert to default data. |
| Chipset | Qualcomm QCA9531 |
| Flash | 16M Flash |
| SDRAM | 64M DDR |
| Power Supply | PoE, IEEE 802.3af standard, 48V |
| Dimensions (W X D X H) | 86*86*35mm |
| Antenna Type | 2 * 2.4GHz 2dBi internal antennas |

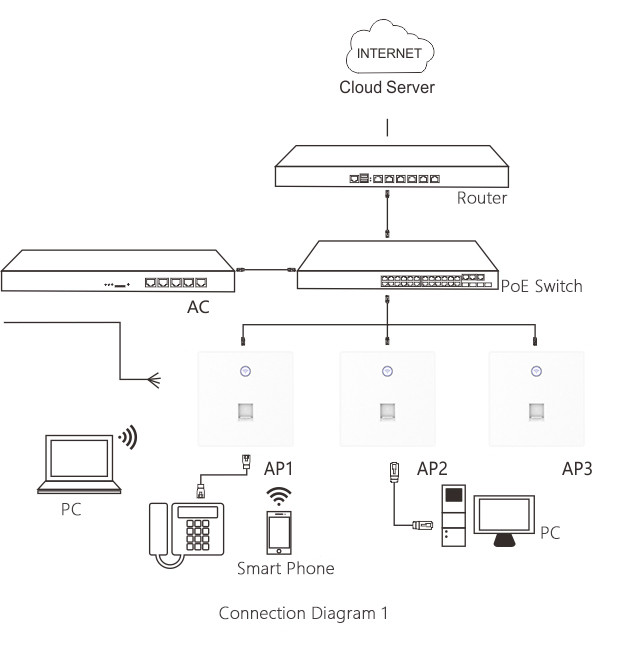

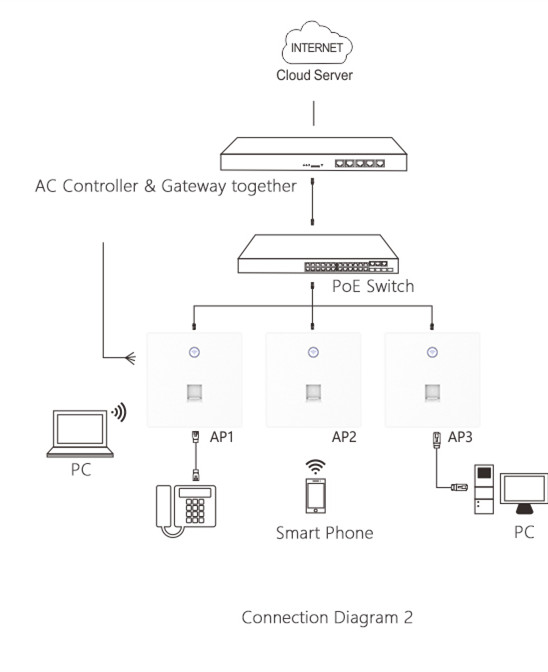

Working Diagram:
