| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | A770 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Chipset: | QUALCOMM | Flash: | 16M |
|---|---|---|---|
| RAM: | 128M | Band: | 2.4G + 5.8G |
| Power: | 500mW | Port: | 1*10/100M WAN, 1*10/100M LAN |
| High Light: | ceiling access point,802.11 ac ap |
||

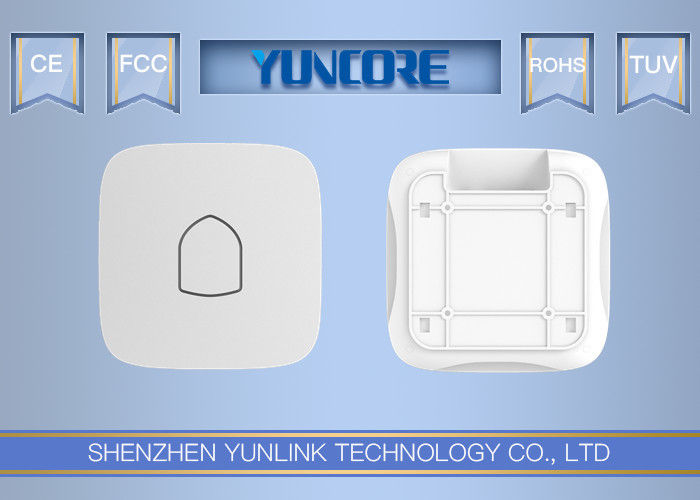

750Mbps 2.4GHz + 5.8GHz High Power Ceiling Mounted Wireless AP Dual Video Support
A770/A771 11ac Ceiling Wireless Access Points based on SNMP/CAPWAP Protocol, it is specifically designed to operate in Residential and commercial applications. Comply with IEEE 802.11ac/n/g/b standard, it is 2.4GHz and 5GHz dual radio, with data rate up to 733Mbps(300Mbps in 2.4G, 433Mbps in 5G), enable users to enjoy more stable and faster Ethernet surfing even access into 100+ end users; Tested 101 concurrent end users.
Applications
This high power, dual radio and high speed wireless access point can be deployed in a wide array of situations for both residential and commercial applications.
Residential Applications:
DC Power available, Adjustable RF Power based on room range; Then support Gateway operation mode, no need more wireless router; What’s more, support cloud server access for remote control, to provide effective wireless connectivity.
Commercial Applications:
Support PoE, High RF Power with 6 hotel room Wi-Fi range, 100+ end users, work as wireless AP and managed by WLAN Controller, A770/A771 public applied in hotel, school, shopping mall in mass installation.
Spec:
| Wireless: | |
| Standard | 802.11ac/b/g/n, MIMO technology |
| Speed |
433Mbps compatible with 5.8GHz 300Mbps b/g/n for 2.4GHz |
| Modulation |
OFDM = BPSK,QPSK, 16-QAM, 64-QAM DSSS = DBPSK, DQPSK, CCK |
| Channel |
Ch.1-13 for 2.4GHz Ch.36-165 for 5.8GHz |
| Frequency band |
2.412GHz-2.472 for 2.4GHz 5.180GHz-5.825Ghz for 5.8GHz |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
| RF Power: | |
| RF Power |
2.4G: 11n @MCS7:22±2DB, @MCS0:24±2DB. 11g @54M:23±2DB, @6M:25±2DB. 11b @11M:25±2DB, @1M:27±2DB. 5.8G: 11a @54M:22±2DB, @6M:24±2DB. 11n @MCS7:20±2DB, @MCS0:22±2DB. 11ac @MCS9:19±2DB, @MCS0:21±2DB. |
| Receive Sensitivity |
2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. 5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps. 11n: -70dbm@MCS7, -90dbm@MCS0. 11ac:-60dbm@MCS9, -86dbm@MCS0. |
| EVM |
11n: ≤-28 DB 11g: ≤-25 DB 11b: ≤-10 DB 11a: ≤-25 DB |
| Hardware: | |
| Chipset | Qualcomm QCA9531 + QCA9887 |
| Memory | 128MB DDR2 RAM |
| Flash | 16MB |
| Interface | 1 * 10/100Mbps RJ45 WAN Port |
| 1 * 10/100Mbps RJ45 LAN Port | |
| 1 * Reset button, press 15 seconds to revert to default setting | |
| Antenna | Build in 5dBi MIMO Antenna |
| Power consumption |
PoE: A771: IEEE 802.3af, 15W(Full Load) A770: 24V Passive PoE, 12W DC: 12V/1.5A |
| Software | |
| Standard Version | Bandwidth: 20Mhz, 20/40Mhz, 80Mhz |
| Operation Mode | Gateway, Wireless AP, Repeater, WISP |
| SSID No | 4 SSID for 2.4G, 4SSID for 5.8G |
| Factory Default Setting | Yes |
| Centralized Management by AC Controller | Yes |
| Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
| Protocols | IPv4 |
| Others: | |
| Package Contents |
750Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: -20~55 ℃ Storage Temperature: -40~70 ℃ (-40 ℉~158℉) Storage Humidity: 5%~90% non-condensing |
Working Diagram:
Installation:
