Passive Power Over Ethernet Switch , PNP Easy Maintenance POE LAN Switch

Product Details:

Place of Origin:	China
Brand Name:	Yuncore
Certification:	CE,FCC,ROHS
Model Number:	YS-816-P24

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	Giftbox + Carton box
Delivery Time:	4 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS/ WEEK

Contact Now

Detailed Product Description

Material:	Metal	Chipset:	RTL8316E
Packet Forwarding Rate::	3.2 Gbps	MAC Address Table:	8K
Standard:	24V Passive PoE	Ports:	16*10/100/1000MbPS PoE Ports
High Light:	gigabit poe switch , wireless poe switch

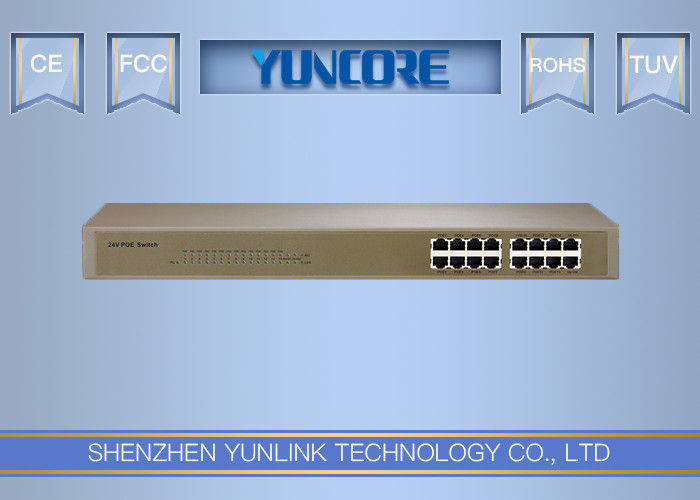

16 Ports 24V Passive Power Over Ethernet Switch , Plug and Play , easy maintenance

YS-816-P24 is a two layer 10/100Mbps enterprise Ethernet switch, support IVL (Independent VLAN learning), SVL (Shared VLAN learning) networking topologies, supports broadcast, multicast, unknown multicast, and unknown-unicast packet Inhibitory control. With 16 ports of 10/100Mbps RJ45 Port, all ports support the line speed forwarding and auto MDI/MDIX function, the installation truly plug and play.

Features:

Multi-ports including PoE Ports

Supply 16*10/100M MDI/MDIX RJ45 Port

24V Passive POE to save cost

YS-816-P24 with 14 PoE ports comply with 24V Passsive PoE, each port up to 20W, then total 300W for this PoE switch, all ports can be fully connected with PD equipment.

Simple and easy maintenance

Unmanagement design, plug and play, dynamic LED light, no need any settings, help you quickly to complete the wired network, and simplifies equipment maintenance.

Excellent design of lightning

Integrate professional lightning-protection circuit, support port lightning-protection (4KV), power lightning protection level 4 (6KV) protection. Excellent lightning protection, anti-static and anti-interference ability, ensure switch stably operate in an unstable environment.

Spec:

Standard	IEEE 802.3 ,IEEE 802.3u,IEEE 802.3x,IEEE 802.az
Ports	16* 10/100Mbps RJ45 port
DHCP sever (*Optional)	Assign IP address for AP in the WLAN networking, easy to manage Wireless AP
Indicator	1Link/Ack Indicator for each port 1 Power indicator (The power indicator will change to Status indicator if with DHCH Server)
Function	Store and Forward Support 3.2Gbps backplane bandwidth Support 8K MAC address table depth
Environment	Working Temperature:0℃～40℃ Storage Temperature:-40℃～70℃ Working Humidity:10%～90%RH Storage Humidity:5%～90%RH
Power Input	100-240V～ 50/60Hz
Demension(L×W×H)	440mm x198 mm x 44mm
