24V Passive 8 Channel POE Switch Fast Ethernet Switch Eco - Friendly

24V Passive 8 Channel POE Switch Fast Ethernet Switch Eco - Friendly

    • 24V Passive 8 Channel POE Switch Fast Ethernet Switch Eco - Friendly
    • 24V Passive 8 Channel POE Switch Fast Ethernet Switch Eco - Friendly
  • 24V Passive 8 Channel POE Switch Fast Ethernet Switch Eco - Friendly

    Product Details:

    Place of Origin: China
    Brand Name: Yuncore
    Certification: CE,FCC,ROHS
    Model Number: SP-8009-P24/ SP-8009HP-P24

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 PCS
    Price: Negotiable
    Packaging Details: Giftbox + Carton box
    Delivery Time: 4 working days
    Payment Terms: T/T, Western Union, Paypal
    Supply Ability: 1000 PCS/ WEEK
    Contact Now
    Detailed Product Description
    Material: Metal Chipset: RTL8309M+RTL8201F
    Packet Forwarding Rate:: 1.8 Gbps MAC Address Table: 2K
    Standard: 24V Passive PoE Ports: 8*10/100/1000MbPS PoE Ports, 1*UPLINK Port
    High Light:

    poe network switch

    ,

    wireless poe switch

    8 Ports 24V Passive PoE Fast Ethernet Switch , Plug and Play , easy maintenance

    SP-8009 is a faster PoE Switch with 8*10/100Mbps PoE ports, 1*10/100Mbps Up-Link Port. All Ports support auto-negotiation, auto MDI/MDIX, then PoE ports support 24V Passive PoE, simply plug and play. With the innovative energy-efficient technology, users can choose the PoE switch according power consumption, making it an eco-friendly solution for home/business networking.

    Features

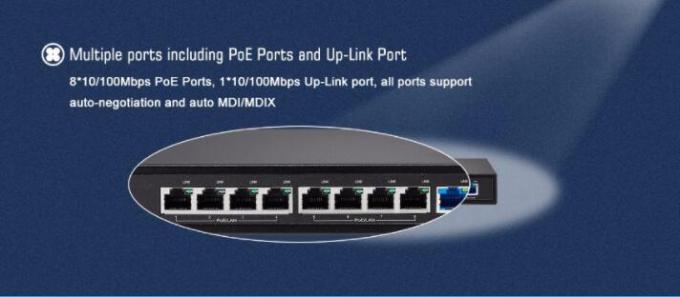

    Multi-ports including PoE Ports, Up-Link Port

    With 8*10/100M PoE ports,1*10/100M Up-link port,all ports support auto-negotiation and auto MDI/MDIX;
    .

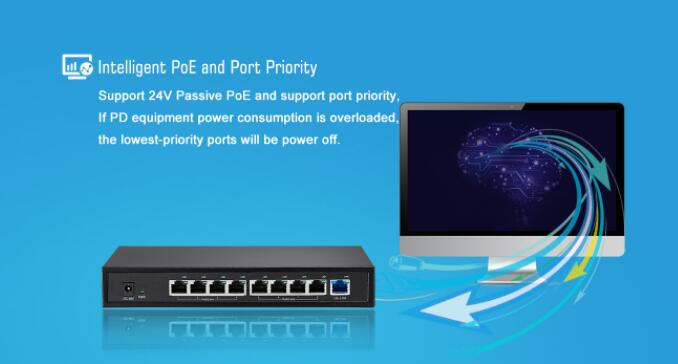

    Intelligent PoE and Port Priority

    Support 24V passive POE. If power consumption is overloaded, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

    Plug and Play, easy maintenance

    Desktop/rack-mount metal case,plug and play, LED indicator show the working status, quickly to configure and maintance

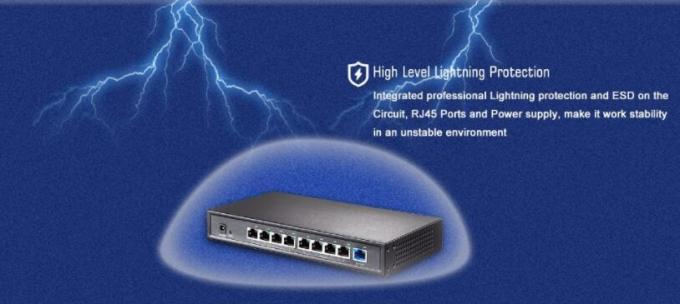

    Excellent Lightening protection

    Integrated professional Lightning protection circuits, support Ethernet port lightning protection(4KV), Power lightning protection (6KV) protection, to ensure it work stability in an unstable environment

    Spec:

    Model

    SP-8009-P24

    SP-8009HP-P24

    Ports 9* auto Negotiation /auto MDI/MDIX RJ45 Ports
    8*10/100Mbps PoE ports
    1*10/100Mbps up-link port
    Cable requirement 10BASE-T: UTP 3,4,5 cable(≤100 meters)
    100BASE-TX: UTP 5 cable(≤100 meters)
    POE SP-8009: 60W, 24V-1.5A
    SP-8009HP: 120W, 24V-2.5A
    LED Indicator PWR(Power), POE,LINK, ALM(Alarm)
    Size(L*W*H) 250mm*122mm*35mm
    Working Environment Working Temperature: 0℃~40℃
    Storage Temperature: -40℃~70℃
    Working Humidity: 10%~90% No Condensation
    Storage Humidity: 5%~90% No Condensation
    Input Power

    SP-8009:DC 24V/1.5A

    SP-8009HP: 24V/2.5A

    PoE Standard IEEE 802.3, 802.3u, 802.3x
    CSMA/CD, TCP/IP
    Advanced Functions Comply with 24V Passive PoE equipment
    Port Priority Function
    MAC Address Auto-Learning and Auto-Aging.
    IEEE802.3X Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
    MAC Address Table 2k
    Backplane Bandwidth 1.8Gbps
    Forwarding Rate 10BASE-T:14880pps/port
    100BASE-TX:148800pps/port



    More pictures:



    24V Passive 8 Channel POE Switch Fast Ethernet Switch Eco - Friendly

    24V Passive 8 Channel POE Switch Fast Ethernet Switch Eco - Friendly

    24V Passive 8 Channel POE Switch Fast Ethernet Switch Eco - Friendly
