| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | SP-926-P48/ SP-926HP-P48 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | Metal | Chipset: | Realtek |
|---|---|---|---|
| Packet Forwarding Rate:: | 56.0 Gbps | MAC Address Table: | 8K |
| Standard: | IEEE802.3af/at Standard | Ports: | 24*10/100/100MbPS PoE Ports,2* Gigabit SFP Port, 2*gigabit UPLINK Port |
| Support: | AUTO Negotiation/AUTO MDI/MDIX | POE Output: | 48V, IEEE 802.3af/at Standard |
| High Light: | poe network switch,wireless poe switch |
||

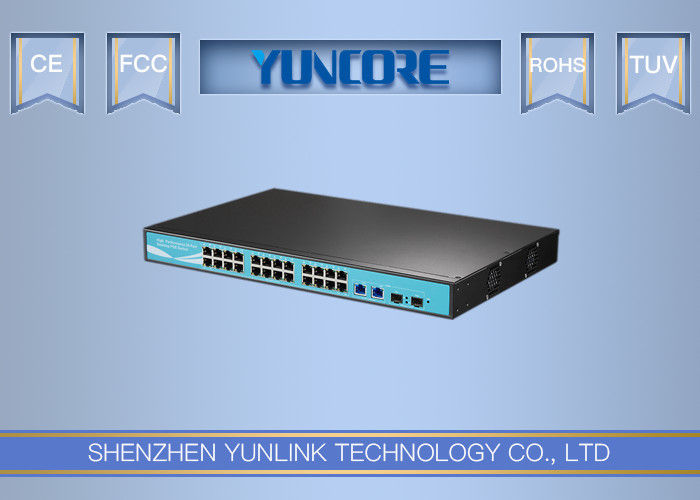

SP-926 is 26 ports PoE Switch comply with IEEE802.3af/at PoE standard, made up by 24*10/100Mbps PoE ports, 2*Gigabit uplink ports, 2*SFP fiber injector. designed with desktop/rack-mount metal case, easy to provide power and Ethernet for wireless access point, IP camera...
For SP-926, all 26 RJ45 ports support auto-negotiation, auto MDI/MDIX, for high density PD equipment environment; To guarantee the important data transmission without any delay, it deal with flow classification based on different environment and application.
This PoE switch with max 300W/450W power supply, 30W for each PoE ports, fully work with IEEE 802.3af/at standard PoE PD equipment, simply plug and play, With the innovative energy-efficient technology, users can choose the PoE switch according power consumption, making it an eco-friendly solution for business networking. such as hotel, campus, industry zone, shopping mall...
Mark:
1．10M/100Mbps link Indicator
2．10M/100Mbps auto-negotiation, auto MDI/MDIX RJ45 Ports
3．10/100/1000Mbps auto-negotiation, auto MDI/MDIX Up-Link Port
4．10/100/1000Base-T RJ45 Port Link LED Indicator
5．1000Base-X SFP Fiber Port
6．1000Base-X SFP Fiber Port Link LED Indicator
7．Power Indicator
Spec:
| Ports |
24* 10/100M RJ45 PoE Ports 2 * 10/100/1000M RJ45 Up-Link Ports 2 * 1000M SFP Fiber Ports |
| Compatible Fiber Module |
nMXPD-243S nSFP-SM nTL-SM311LS nH8518P1BNL-H3C nGLC-LH-SMD nOSG010N05 |
| Functions | Storage and forwarding |
| Back bandwidth:4.8Gbps | |
| MAC Address Table: 8K | |
| PoE Starndard | IEEE802.3af,IEEE802.3at |
| Max Port PoE power | 30W |
| Max Power | 300W / 450W |
| DC Input | 100－240V～ 50/60Hz |
| PoE Standard |
IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3af IEEE 802.3at |
| Working Temperature | 0ºC ~ 50ºC |
| Storage Temperature | -40ºC ~ 70ºC |
| Working Humidity | 10% ~ 90% RH |
| Storage Humidity | 5% ~ 90% RH |
| EMI | GB9254-2008 Class A |
| UL | GB4943-2001 |
| Size (L×W×H) | 440×284×44 |
| Weight | 4 kg |
Working Diagram:
