Fast Wireless POE Switch With 9 Ports Lightning Protection Port Priority Function

Product Details:

Place of Origin:	China
Brand Name:	Yuncore
Certification:	CE,FCC,ROHS
Model Number:	SP-909-P48/ SP-909HP-P48

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	Giftbox + Carton box
Delivery Time:	4 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS/ WEEK

Contact Now

Detailed Product Description

Material:	Metal	Chipset:	Realtek
Packet Forwarding Rate::	1.8 Gbps	MAC Address Table:	2K
Standard:	IEEE802.3af/at Standard	Ports:	810/100MbPS PoE Ports,1 10/100M Uplink Port
Support:	AUTO Negotiation/AUTO MDI/MDIX	POE Output:	48V, IEEE 802.3af/at Standard
High Light:	poe network switch , gigabit poe switch

9 Ports 48V, IEEE 802.3af / at Standard Faster PoE Switch , Lightning Protection

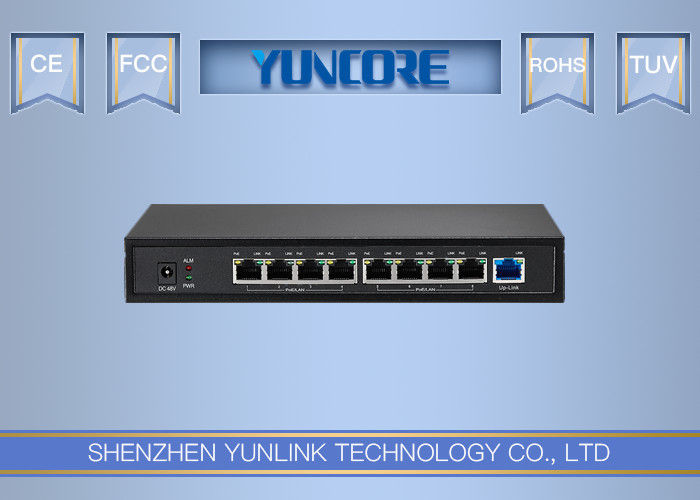

SP-909 is a faster PoE Switch with 8*10/100Mbps PoE ports, 1*10/100Mbps Up-Link Port. All Ports support auto-negotiation, auto MDI/MDIX, then PoE ports comply with IEEE 802.3af/at PoE standard, simply plug and play. With the innovative energy-efficient technology, users can choose the PoE switch according power consumption, making it an eco-friendly solution for home/business networking.

Features:

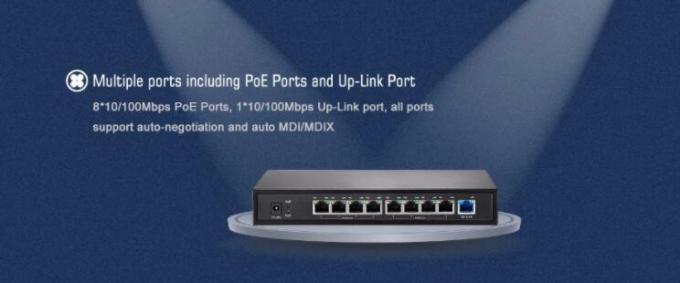

Multi-ports including PoE Ports, Up-Link Port

With 8*10/100M PoE ports,1*10/100M Up-link port,all ports support auto-negotiation and auto MDI/MDIX；

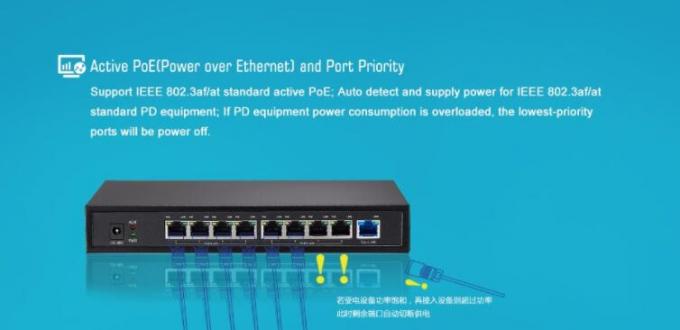

Intelligent PoE and Port Priority

Support IEEE802.3af/at PoE, 30W high power for single PoE port; With smart power management when the power of PD equipment is over 75W,ALM LED indicator will turn on to warn that the power is not enough. if all PoE PD equipment power consumption is over 85W and become overloaded, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port

Plug and Play, easy maintenance

Desktop/rack-mount metal case,plug and play, LED indicator show the working status, quickly to configure and maintance

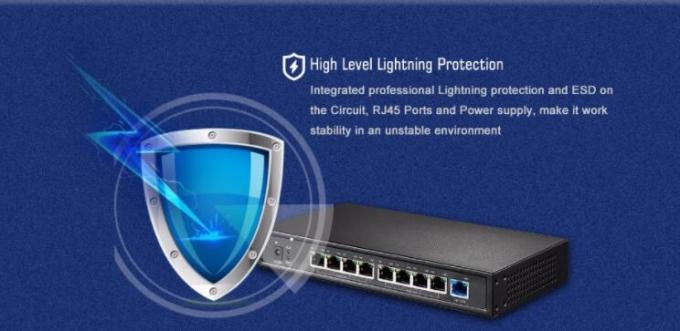

High Level Lightning Protection

SP-909 integrated professional Lightning protection circuits, support Ethernet port lightning protection(4KV), Power lightning protection (6KV) protection, to ensure it work stability in an unstable environment

Spec:

Model	SP-909 SP-909HP
Ports	9* auto Negotiation /auto MDI/MDIX RJ45 Ports
	8*10/100Mbps PoE ports
	1*10/100/1000Mbps up-link port
Cable requirement	10BASE-T: UTP 3,4,5 cable(≤100 meters)
Cable requirement	100BASE-TX: UTP 5 cable(≤100 meters)
IEEE802.3 af	Support/15.4W
IEEE802.3at	Support/30W
POE	SP-909: 96W, 48V-2A； up to 30W for PoE port
POE	SP-909HP: 120W, 48V-2.5A； up to 30W for PoE port
Overload Protection	SP-909: 85W
Overload Protection	SP-909HP: 112W
LED Indicator	PWR(Power), POE,LINK, ALM(Alarm)
Size(LWH)	250mm122mm35mm
Working Environment	Working Temperature: 0℃~40℃
	Storage Temperature: -40℃~70℃
	Working Humidity: 10%~90% No Condensation
	Storage Humidity: 5%~90% No Condensation
Input Power	SP-909:DC 48V/2A SP-909HP: 48V/2.5A
POE Power	SP-909:96W SP-909HP: 120W
MAX Port PoE Power	30W
PoE Standard	IEEE 802.3, 802.3u, 802.3x, 802.3af,802.3at
PoE Standard	CSMA/CD, TCP/IP
Advanced Functions	Comply with IEEE 802.3at/af PDs
	Port Priority Function
	Wire-speed forwarding
	MAC Address Auto-Learning and Auto-Aging.
	IEEE802.3X Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
MAC Address Table	2k
Backplane Bandwidth	1.8Gbps
Forwarding Rate	10BASE-T:14880pps/port
Forwarding Rate	100BASE-TX:148800pps/port
