Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FEE,ROHS |
Model Number: | XD9308Q |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000PCS/ WEEK |
Chipset: | QCA9531 | Flash: | 16M |
---|---|---|---|
RAM: | 64M | Standard: | IEEE802.11N/G/B |
Frequency: | 2.4GHz | Interface: | 10/100M WAN*1 |
High Light: | wireless n access point,access point repeater |

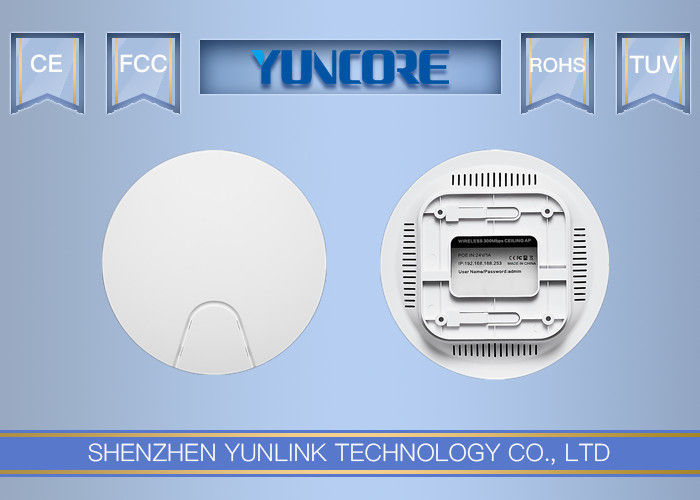

XD9300Q and XD9308Q is smart type indoor ceiling access point, it designed for home environment or business-class, such as hotels, coffee house, shops, university campus... With 2T2R 2.4G MINO technology, the data rate can be 300Mbps, max 32 users access into together.With the aesthetic ceiling design, XD9300Q and XD9308Q can be deployed easily on ceiling or in crawlspaces. Integrated passive 24V PoE or 802.3af Power over Ethernet (PoE) allows installation in areas where power outlets are not readily available.
Main Features:
300Mbps high speed:
Compliant with IEEE 802.11b/g/n, providing fast speed 300Mbps on 2.4G frequency, which make files transferring faster and video streaming smoother.Just enjoy yourself and link your world by this wireless device.
Power Over Ethernet
The PoE port on the back panel allows both power and data to be carried over a single Ethernet cable to XD9300Q or XD9308Q with the PoE adapter or PoE switch. It make XD9300Q or XD9308Q can be deployed in area where power outlets are scarce or not available.
Multi Operation mode to meet with different requirement
It with Wireless Access Point, Router and wifi repeater operation mode, can be used for wifi coverage, home router or extend the exist wifi signal.
Support Tag VLAN, AC Controller and Cloud Server
XD9300Q or XD9308Q work with VLAN switch, make different SSID with different VLAN for networking safety.
Besides that, it work with AC controller for easy configuration and central management.
Then if required, this wireless AP can access into cloud server for remote management, advertisement, captive portal authentication, which more professional in business environment application.
Spec:
Product SPEC |
|||
Hardware | |||
Chipset | Qualcomm QCA9531 | ||
Standard | 802.11N, 2T2R 300M MIMO Technology | ||
SDRAM | 64MB | ||
Flash | 16MB | ||
Interface | 1*10/100 Mbps RJ45 Port, IEEE 802.3af 48V PoE Support | ||
1*Reset Button, rest to default | |||
Size | 15.7*3.6cm | ||
Antenna | 2.4G MIMO OMNI antenna, 3dBi | ||
Power | POE 48V | ||
RF Data | |||
Frequency | 802.11b/g/n: | ||
2.4~2.4835GHz | |||
U.S.,Europe and Japan product covering 2.400 to 2.4835 GHz,programmable for different country regulations | |||
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM | ||
DSSS = DBPSK, DQPSK, CCK | |||
Throughput | 300 Mbps | ||
Sensitivity | 802.11n(2.4GHz) | 802.11g | 802.11b |
-92dBm @ MCS0 | - 92dBm @ 6Mbps | - 95dBm @ 1Mbps | |
-70dBm @ MCS7 | - 72dBm @ 54Mbps | - 90dBm @ 11Mbps | |
-92dBm @ MCS8 | |||
-70dBm @ MCS15 | |||
Output Power | Radio1(WLAN1) | ||
802.11n(2.4GHz)(± 1.5dBm) | 802.11g(± 1.5dBm) | 802.11b(±1.5dBm) | |
25dBm@ MCS0~2/MCS8~10 | 25dBm @ 6~24Mbps | 25dBm @1~11Mbps | |
25dBm @ MCS3/MCS11 | 24dBm @ 36Mbps | ||
24dBm @ MCS4/MCS12 | 23dBm @ 48Mbps | ||
23dBm @ MCS5/MCS13 | 23dBm @ 54Mbps | ||
23dBm @ MCS6/MCS14 | |||
22dBm @ MCS7/MCS15 |
Working Diagram:
Installation:
