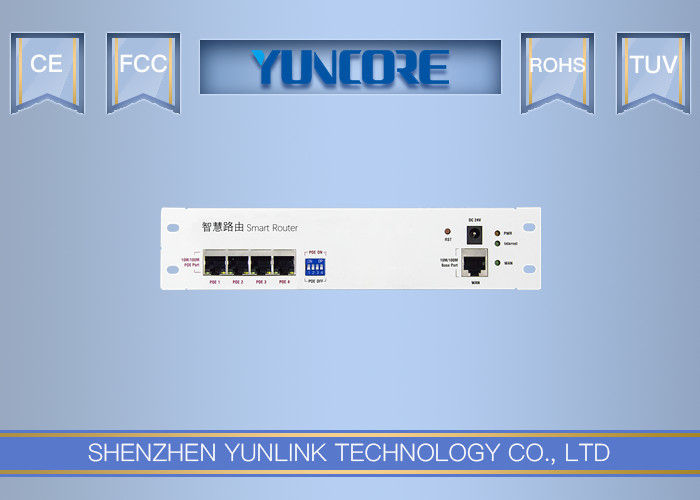

Home Smart Home Router Controller With 24V Passive PoE Switch Realtek Solution

Home Smart Home Router Controller With 24V Passive PoE Switch Realtek Solution

Home Smart Home Router Controller With 24V Passive PoE Switch Realtek Solution

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: MR400

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: Metal Chipset: RTL8197FH
Flash: 16M RAM: 256M
PoE: 24V Passiv PoE Power: 72W
Port: 1*10/100 WAN, 4*10/100 LAN Giftbox: White Neutral
High Light:

gigabit home router

,

network distribution box

Smart Home WiFi Controller with 24V Passive PoE Switch and Router Functions Realtek Solution



MR400 is a network device work in network distribution box but with smart router, CAPWAP Protocol WLAN controller, PoE Switch and Authentication gateway functions together.



There are 4*10/100Mbps RJ45 ports, when PoE button on, then this port can supply Ethernet and 24V PoE power for the connected in wall wireless AP or IP cameras; When PoE off, this port work as LAN ports, supply Ethernet to IPTV, desktop PC or other network device, which meet with different home network request.



There is 1*10/100Mbps WAN port, support PPPoE, Dynamic IP, Static IP, when connect to different ISP network, MR400 will automatic to detect the network type and supply Internet to LAN and PoE ports.

Work with CAPWAP Wireless AP to supply full Wi-Fi coverage, then configure in central, maintain in remote through cloud server, members can solve the network problems at any place and any time.



Main Features:



Full Wi-Fi Coverage


Mount in wall wireless AP in each room, bring full Wi-Fi Coverage, freely and stable wireless Ethernet access, then centralized configured and managed by MR400, easy and simple.



Smart Flow Control


Intelligent to detect the user QTY, network traffic, wireless signal strength, then control user’s flow to supply a freely internet experience



Internet Behavior Control


Support parental control, reasonable to regulate their kids Internet behavior, provide a green and healthy Internet environment.


Bisides that, it can control a variety of application software, limit P2P and manage user’s Internet behavior



Seamless Roaming


Managed by the smart router, even move from living room to bedroom, upstairs or downstairs, users will be seamless switch between each AP and keep high speed Internet always.



Energy Saving


It is easy to power on/off each in wall wireless AP if no users in certain room to save the energy, but not affect others.



Installation concealed with PoE power supply

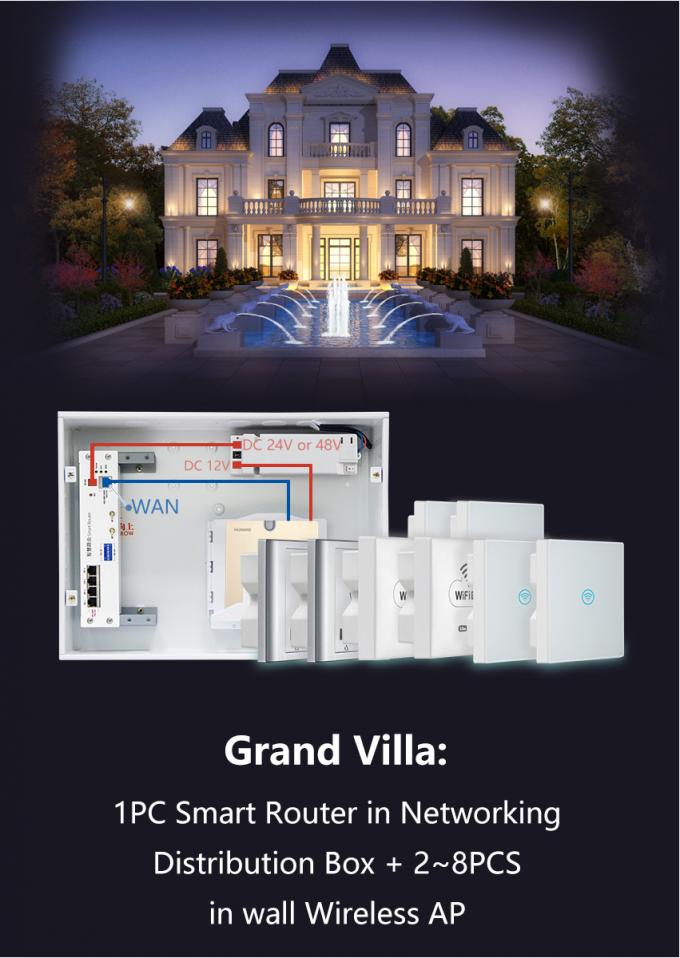

MR400 is integrated in networking distribution box and supply PoE power, work with in wall wireless AP, all cable is embedded in the wall, security and concealment, safety, tidy and perfectly comply with home decoration.



Advanced Firewall


Support advance firewall based on IP address, domain name and DDoS attack defense.



Cloud Management and Maintenance


MR400 support remote maintenance from cloud server if out of service, members can solve the problem at any place, any time.



Spec:



Hardware
Model MR400
CPU RTL8197FH
Flash 16MB
SDRAM 128MB
PoE Output Passive 24V PoE
PoE Power 72W in total, max 10W for each RJ45 port.
Size 229mm * 49.5mm * 28.0mm
Weight <300g
Interface

1 * 10/100Mbps WAN port

4 * 10/100Mbps LAN ports, support 24V Passive PoE if need

4 * PoE Control Button, PoE ON/PoE OFF

1 * DC port, 24V/3A

1 * Reset Button

Reset Reset Button, press 10 seconds to revert to default data.
LED Indicator PWR(Power), NET(Status), WAN
Power Consumer <8W
Working Environment

Working Temperature: -20℃ ~ +50℃

Storage Temperature: -40℃ ~ +70℃

Humidity:5%~95% (No condensation)

Accessory 72W Power adapter; 2PCS DC Power cable, 1PC AC Power cable, User Manual

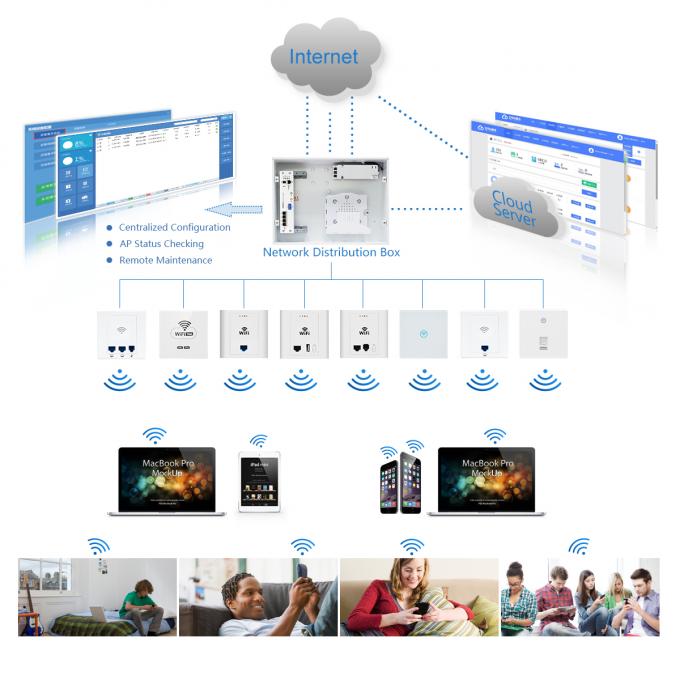

Working Diagram:



Home Smart Home Router Controller With 24V Passive PoE Switch Realtek Solution

Home Smart Home Router Controller With 24V Passive PoE Switch Realtek Solution
