| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | MR150 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | Metal | Chipset: | MT7621 |
|---|---|---|---|
| Flash: | 16M | RAM: | 256M |
| PoE: | 48V Passiv PoE | Power: | 72W |
| Port: | 1*10/100/1000 WAN, 4*10/100/1000 LAN | Giftbox: | White Neutral |
| High Light: | gigabit home router,network distribution box |
||

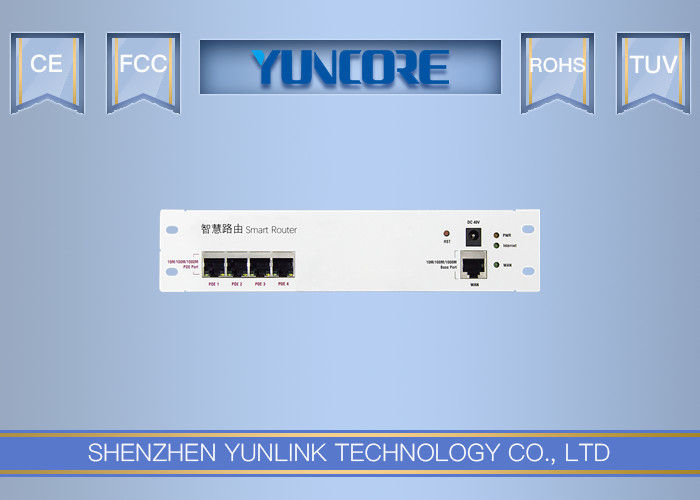

Home Decoration WiFi Full Coverage Smart Router Disctribution Box Cloud Managable
Main Features:
MR150 is an device work in network distribution box but with smart router, WLAN controller , PoE Switch and Authentication gateway functions together.
There are 4*10/100/1000Mbps RJ45 PoE/LAN ports, which comply with IEEE 802.3af PoE standard, to supply Ethernet and 48V PoE power for the connected in wall wireless AP or IP cameras; or supply Ethernet to IPTV, desktop PC or other network device, which meet with different home network request, further upgrade and integrate the existing home Wi-Fi status.
There is Gigabit WAN port, support PPPoE, Dynamic IP, Static IP, when connect to different ISP network, MR150 will automatic to detect the network type and supply Internet to LAN and PoE ports.
Besides that, it is an authentication gateway also, support local authentication and remote authentication under cloud server, especially captive portal authentication like Google login, Facebook Login, WeChat Login, SMS Login...
Full Wi-Fi Coverage
Mount in wall wireless AP in each room, bring full Wi-Fi Coverage, freely and stable wireless Ethernet access, then centralized configured and managed by MR150, easy and simple.
Smart Flow Control
Intelligent to detect the user QTY, network traffic, wireless signal strength, then control user’s flow to supply a freely internet experience
OPENWRT support
MR150 with MTK chipset, it supply OPENWRT, customer can develop their own firmware for this device, to comply with their management system.
Installation concealed with PoE power supply

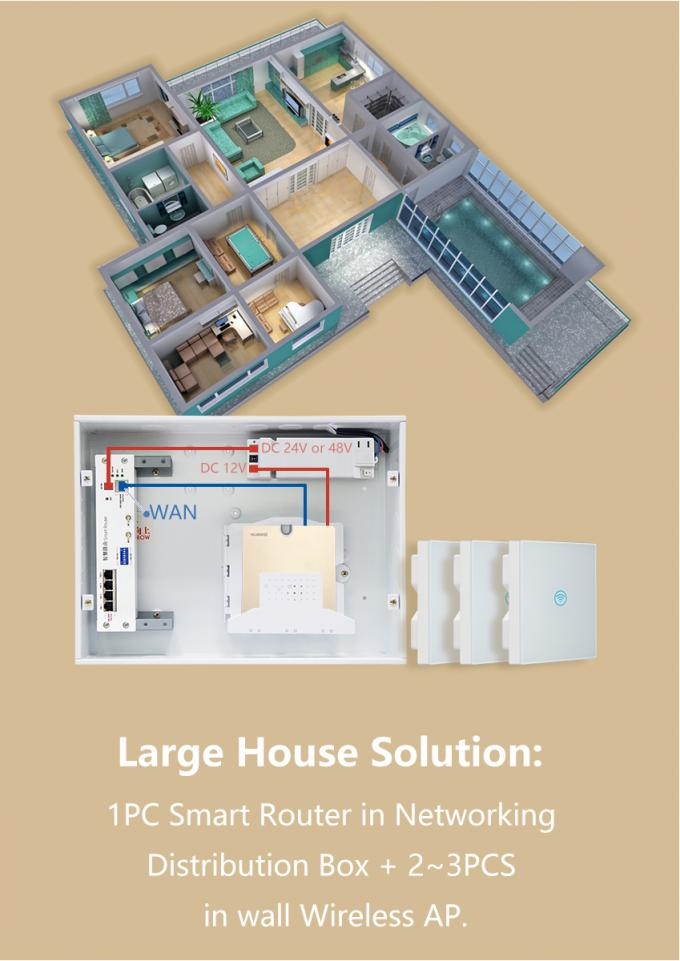

MR150 is integrated in networking distribution box and supply PoE power, work with in wall wireless AP, all cable is embedded in the wall, security and concealment, safety, tidy and perfectly comply with home decoration.
Cloud Management and Maintenance
MR150 support remote maintenance from cloud server if out of service, members can solve the problem at any place, any time.
Spec:
| Hardware | |
| Model | MR150 |
| CPU | MTK7621 |
| Flash | 16MB |
| SDRAM | 256MB |
| PoE Output | IEEE 802.3af Standard, max 10W for each RJ45 port |
| PoE Power | 72W in total |
| Size | 229mm * 49.5mm * 28.0mm |
| Weight | ＜400g |
| Interface |
1 * 10/100M/1000Mbps WAN port 4* 10/100/1000Mbps LAN/PoE ports 1 * DC port, 48V/3A 1 * Reset Button |
| Reset | Reset Button, press 10 seconds to revert to default data. |
| LED Indicator | PWR(Power), NET(Ethernet), WAN |
| Power Consumer | ＜8W |
| Working Environment |
Working Temperature: -20℃ ～ +50℃ Storage Temperature: -40℃ ～ +70℃ Humidity:5％～95％ (No condensation) |

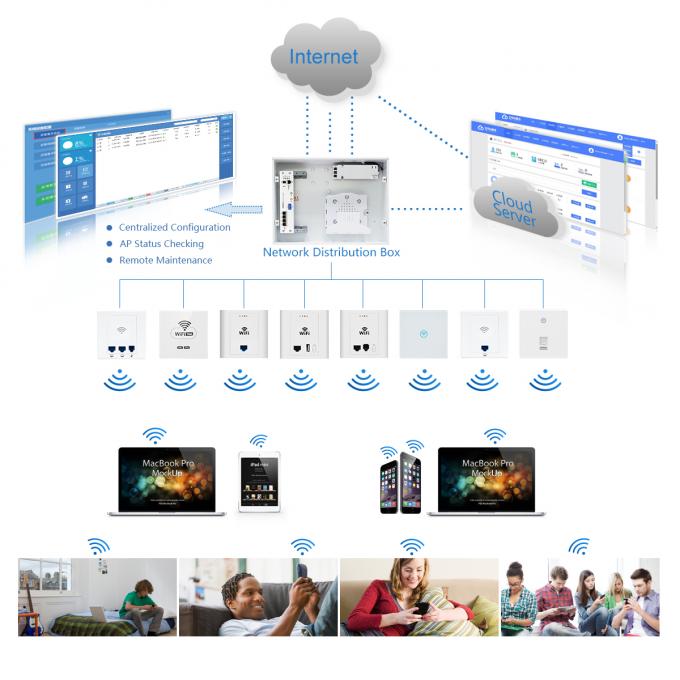

Working Diagram:
