| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | FIT-MB780 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | ABS | Band: | 2.4G + 5.8G |
|---|---|---|---|
| Flash: | 16M | RAM: | 128M |
| Working Mode: | AP | Interface: | Touchable |
| High Light: | in wall wifi access point,wall mount access point |
||

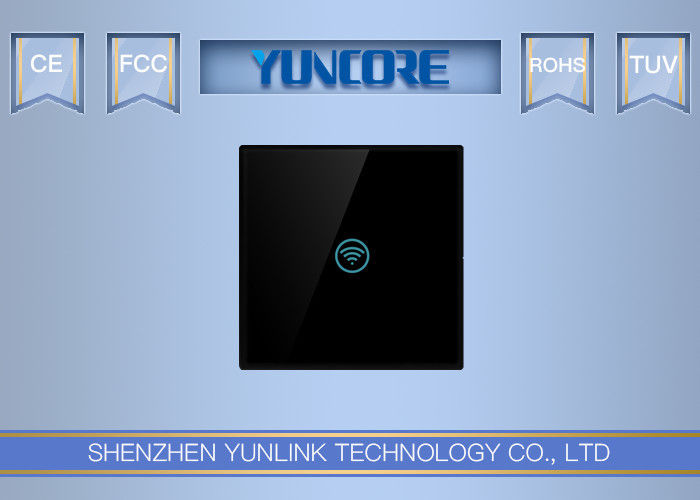

750Mbps 11ac Dual Band Touchable Switch Multi SSID FIT In Wall Access Point
Description:
FIT-MB780 is an 11ac wall mount style wireless access point upgrade to the latest wireless-AC technology, fast data rate (433Mbps in 5G and 300Mbps in 2.4GHz) and dual band allowing content to download faster, large video or music files to sync more quickly and stream seamlessly. Embed PoE, work in hotel, school, hospital mainly for a stable wireless networking. Then work with Yunlink’s Access Controller System and cloud management system, easy in central configuration, meet with different advertisement and multi authentication requirement , professional and cost effectively in large area Wi-Fi solution
Wireless AC Technology, more users
The PW780 AC dual band wall mount Wireless Access Point offers AC technology for seamless/smoother video and music streaming. More users including computers, Internet-ready TVs, game consoles, and other Wi-Fi devices can access into this wireless networking at transfer rates up to733Mbps speed.
Dual Band, Less Interference
Double your network bandwidth with Dual-Band AC(2.4G and 5G) designed to help avoid interference and maximize throughput. You can browse web pages, handle mails and chat over 2.4G while enjoying lag-free HD multimedia and online gaming over 5G without worrying about interference.
Power over Ethernet
PW780 AC AP has integrated IEEE 802.3af standard Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Spec:
| HARDWARE FEATURES | |
| Interface |
1 * 10/100Mbps WAN Port 1 * LED on/off button |
| Button | Reset Button, press 15 seconds to revert to default data. |
| Chipset | Qualcomm QCA9531+QCA9887 |
| Flash | 16M Flash |
| SDRAM | 128M DDR |
| External Power Supply | 48V PoE, IEEE 802.3af standard |
| Dimensions (W X D X H) | 86*86*35mm |
| Antenna Type |
1*5.8GHz 2dBi internal antenna 2 * 2.4GHz 2dBi internal antennas |
| WIRELESS FEATURES | |||
| Wireless Standards | IEEE 802.11ac/n/a 5GHz; IEEE 802.11n/g/b 2.4GHz | ||
| Frequency | 5GHz and 2.4GHz | ||
| Signal Rate | 5GHz:Up to 433Mbps; 2.4GHz: Up to 300Mbps | ||
| EIRP | <20dBm(EIRP) | ||
| Reception Sensitivity |
2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. 5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps. 11n: -70dbm@MCS7, -90dbm@MCS0. 11ac:-60dbm@MCS9, -86dbm@MCS0. |
||
| RF Power |
2.4G: 11n @MCS7:15±2DB, @MCS0:17±2DB. 11g @54M:16±2DB, @6M:18±2DB. 11b @11M:18±2DB, @1M:20±2DB. 5.8G: 11a @54M:15±2DB, @6M:17±2DB. 11n @MCS7:14±2DB, @MCS0:16±2DB. 11ac @MCS9:13±2DB, @MCS0:15±2DB. |
||
| Wireless | Auto-Channel selection | ||
| Distance Control (802.1x Ack timeout) | |||
| Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G) | |||
| BSSID | |||
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB 802.11a: ≤-25 DB |
||
| PPM | ±20ppm | ||
| Max Access Users | 128 | ||
| Operation Mode | AP | ||
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption | ||
| LED Status | Sys(System), WAN, Wi-Fi | ||
| Management | |||
| System Settings | Web-based configuration (HTTP/Telnet), Access Control System (SNMP) | ||
| Firmware Upgrade | Upgrade firmware via web browser or TFTP | ||
| Administration | Admin Password can be configured | ||
| System monitoring | Watch dog, Status in hand , useful statistic and Event log | ||
| Logs | Supports local logs, logs host, logs file export | ||
| Reset | Reset or factory defaults | ||
| Backup | Restore settings & configuration of the device to local file, Scheduled reboot | ||
Working Diagram:
