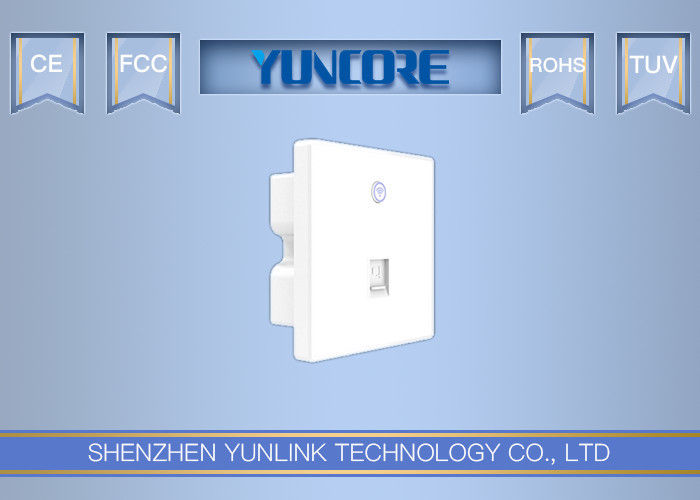

ABS Case PoE Wall Mountable Wireless Access Point With WiFi Switch Button

ABS Case PoE Wall Mountable Wireless Access Point With WiFi Switch Button

ABS Case PoE Wall Mountable Wireless Access Point With WiFi Switch Button

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: PW535

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: ABS Chipset: QCA9531
Band: 2.4G 300Mbps Interface: 1*WiFi Switch Button, 1* 10/100M RJ45 Port
Color: White Working Mode: AP, Repeater, Gateway
High Light:

in wall wifi access point

,

wall plate wireless access point

802.3af PoE with WiFi Switch Button OpenWRT Support In Wall / Wall Socket Wireless Access Point



Description


It is an in wall AP with Qualcomm chipset, 300Mbps data rate, designed for hotel mainly to provide guests and roomers secure Internet access in their hotel room, guest room, living room and lobby.


It support 802.3af PoE, compliant with any 802.3af Power over Ethernet equipment, easy in setting and complete the full wifi coverage.


Managed by WLAN controller, it is easy to configure the data in central or remotely; Then can work with cloud server for portal authentication and advertisement function.



Main Features:


1.In wall panel design


Match with the cassette with size of 86mm or 75mm, easy to complete the WiFi cover and match with design style


2.Wireless N and 300Mbps speed:


Compliant with IEEE 802.11b/g/n standard, 300Mbps in data rate, more faster in download, more freely in internet surf.


3.Power over Ethernet:


Support 802.3af PoE, can be powered by any any 802.3af Power over Ethernet equipment, cost savely


4.Muti SSID and tag VLAN support


PW535 support 4 SSID, each SSID can be tagged to a specified network VLAN for different user access based on established access rights, internet safety.


5.Centralized Management and portal authentication


Support WLAN controller for centralized management, which make the IT staff can sets up different IP addresses, ESSID and manages each room’s AP at the same time. They can remotely add, set up, monitor, delete, upgrade firmware via the WLAN controller through computer.


Besides that, it work with cloud server for remote management, then with function of accounting, facebook/google authentication, SMS verify...



Spec:



Wireless
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Data Rate

11n: 300Mbps

11g: 54Mbps

11b: 11Mbps

Frequency Range 2.4-2.4835GHz
Wireless Transmit Power 15dBm
Modulation Type OFDM/CCK/16-QAM/64-QAM
Receive Sensitivity

11n: -70dbm@MCS7, -88dbm@MCS0.

11g: -72dbm@54Mbps, -88dbm@6Mbps.

11b: -85dbm@11Mbps, -94dbm@1Mbps.

RF Power

11n @MCS7:14±2DB, @MCS0:16±2DB.

11g @54M:15±2DB, @6M:17±2DB.

11b @11M:18±2DB, @1M:20±2DB.

Operation Mode Router, AP, Repeater
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES)
System Requirements Windows 7/Vista/XP/2000,Mac OS®, Linux or Android OS
Hardware
Chipset Qualcomm QCA9531
Flash 16M
SDRAM 64M
Interfaces

1 x 10/100Mbps WAN Port

1 x 10/100Mbps LAN Port, IEEE 802.3af, 48V

1 x WiFi on/off switch

Button Reset Button
Antenna MIMO 3dBi Build-in omni-directional Antenna
Power Supply 802.3af PoE
Dimensions( W x D x H ) 86*86*68mm
Others
Operating Temperature -20°C~55°C
Storage Temperature -40°C~70°C
Relative Humidity 10% ~ 90%, Non-condensing
Storage Humidity 5%~95%, Non-condensing
Certifications RoHS
Package Contents

1 x in wall AP

1 x Quick Installation Guide

1 x setting accessory



Working Diagram:

ABS Case PoE Wall Mountable Wireless Access Point With WiFi Switch Button
