Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC |
Model Number: | FIT-AC7000 |
Minimum Order Quantity: | 10 |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 500PCS/ WEEK |
CPU: | Reaktek RTL8198C | RAM: | 512MB |
---|---|---|---|
Material: | Metal | Flash: | 128MB |
Port: | 5*Gigabit Port | Power: | AC100`240V |
Szie: | 440mm*240mm*44mm | Power Consumption: | < 10W |
High Light: | wifi lan controller,wireless access point controller |

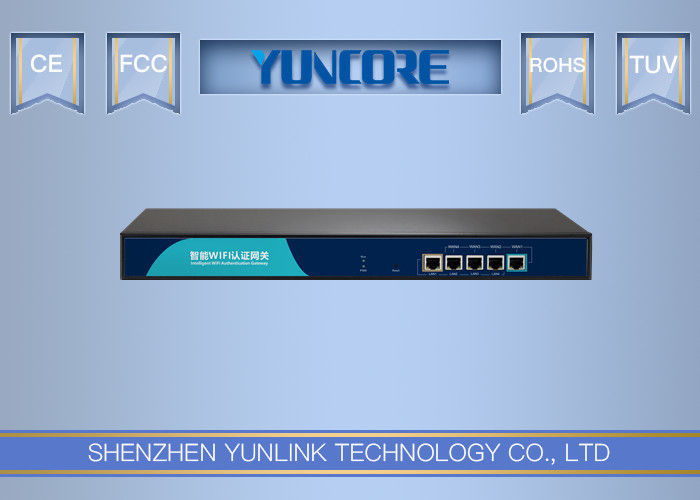

CAPWAP Protocal Intelligent Authentication Gateway Multi - WAN FIT AP Controller 300PCS AP Managed
FIT-AC7000 is an small size Enterprise Gateway based on CAPWAP protocol. Equip with Multi-Gigabit-WAN ports up to 4, with Load Balance, Ethernet backup and Ethernet Superimposed functions, Together with Smart QoS, User Behavior Management, VPN management, VLAN Management, and Build in different Firewall, FIT-AC7000 can access into 300 end users, then supply high speed, high stability and high security Ethernet to them, it is widely applied to small size office, hotel, coffee shop...
Besides that, FIT-AC7000 can access into cloud server; If work as an bypass controller only, administrator can access into the GUI to do maintenance in any place and any networking. if FIT-AC7000 work as enterprise gateway also, very easy to post advertisement and captive portal authentication like Google Login, Facebook Login, SMS Login, Member Login... More professional and enhance the brand effect.
Main Features:
A. Multi Gigabit WAN with load balance function
FIT-AC7000 support PPPoE/DHCP/Static IP/PPTP access, work with different ISP and max 300 end users can access into it.
It with multi Gigabit WAN ports up to 4, support load balance to avoid bandwidth overload, or recover the dropped networking line to ensure the whole networking smoothly;
Then support Ethernet Line backup and Ethernet superimposed to keep Ethernet normal in faster speed always.
Besides that, it support policy-based routing function, administrator will set the network based on IP/MAC/Domain/Interface policies.
B. User Behavior Control and Flow Control
Some times the bandwidth is abundant, but users suffer to very slow speed status; FIT-AC7000 can solve this problem after regulation user’s behavior:
FIT-AC7000 will detect the network packet, then full block P2P firmware like BT, PPlive, QQlive, eMule...;
It allow some specify use of P2P firmware but limits its bandwidth by flow control, different users can enjoy different network behavior in different time.
FIT-AC7000 support file filter and URL filter to void HTTP, FTP uploading and downloading occupied the bandwidth.
FIT-AC7000 can divide the network behaviors such as web browsing, uploading and downloading files, P2P behavior, online games, IM chat, Email transceiver to different user and different department, to retain more bandwidth for business applications.
C. VLAN Management
FIT-AC7000 support VLAN management, it can trunk the VLAN ID from VLAN switch, then allow the WLAN controller to manage the wireless AP under VLAN switch.
D. Powerful Firewall Function
FIT-AC7000 support multiple firewall: port mapping, IP filter, URL filter, MAC filter, DMZ to prevent the network storm, ARP attack and supply a stable, safety networking for end users.
E. Cloud Server Access and Captive Portal Authentication
FIT-AC7000 support cloud server access no matter it work as gateway or controller, then administrator can access into FIT-AC7000’s Web Interface from cloud server to do monitoring and maintenance in any place with any Internet.
Besides that, when work as gateway under cloud server, FIT-AC7000 support local authentication and remote authentication, especially captive portal authentication like Google Login, Facebook Login, WeChat Login, SMS Login....
F. Others
FIT-AC7000 support real time speed monitor, VPN router, Static IP, DDNS... To make it meet with more customer request.
Product Spec:
Model No. | FIT-AC7000 |
Standard and Protocol |
IEEE 802.3, 802.3u, 802.3ab |
CPU | Realtek RTL8198C |
RAM | 128M |
SSD | 512M |
Interface | 1 * Gigabit WAN ports, max 4 WAN ports |
4* Gigabit LAN ports, min 1 LAN ports | |
1 * Reset Button | |
Power | AC100`240V, Max 50W |
Size | 440mm*240mm*44mm |
Working Temperature | -10℃~50℃ |
Storage Temperature | -40℃ ~ 70℃ |
Working Humanity | 10% ~ 90%RH (No condensation) |
Firmware Function | |
AP Management | Max to manage 300PCS Wireless AP |
Central/Remote Management and Configuration | |
End User Status Monitor | |
WAN Connection Type | DHCP, Static IP, PPPoE, PPTP |
DHCP | DHCP Server/Client |
MAC Clone | Modify WAN/LAN/DMZ MAC Address |
VLAN Management | Trunk VLAN ID to manage wireless AP |
Load Balance | Multi-WAN, Multi-ISP |
Intelligent Load Balance | |
Line Backup | |
Ethernet Superimposed | |
Policy Routing | |
Protocol Binding | |
Online Detection | |
Routing | Static Routing |
Behavior | Full block P2P firmware like BT, PPlive, QQlive, eMule |
Allow specify P2P firmware but limits its bandwidth | |
Support file filter and URL filter to void HTTP, FTP uploading and downloading occupied bandwidth | |
Divide different network behaviors to different users | |
Flow Control | IP-based Bandwidth Control |
Guarantee & Limited Bandwidth | |
Time-Scheduled Policy | |
IP-based Session Limit | |
Security | MAC Filtering |
URL/Keywords Filtering | |
Web Content Filtering | |
IP Filter | |
Port Mapping | |
DMZ | |
Attack Defense | TCP/UDP/ICMP Flood Defense |
Block TCP Scan | |
Block Ping from WAN | |
ARP Inspection | Sending GARP Packets |
ARP Scanning by WAN/LAN | |
IP-MAC Binding | |
Authentication | Local Authentication |
Remote Authentication (Facebook Login, Google Login, WeChat Login, SMS Login, Member Login) | |
Management | Web/CLI/Telnet Management Interface |
Remote Management | |
Others | DDNS, VPN management |
Packing Content | FIT-AC7000 |
Power Cord | |
Rack-Mount Kit | |
User Manual |
Working Diagram:
