Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC |
Model Number: | AC1600 |
Minimum Order Quantity: | 10 |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 500PCS/ WEEK |
CPU: | MT7621 | RAM: | 256MB |
---|---|---|---|
Material: | Metal | Flash: | 16MB |
Port: | 5*Gigabit Port | Power: | AC100`240V |
High Light: | wifi lan controller,wireless access point controller |

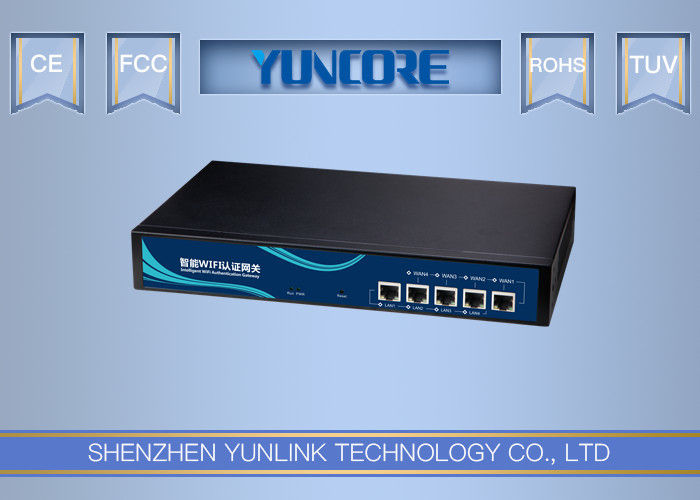

SNMP Protocal Intelligent Authentication Gateway Multi - WAN Wireless AC Controller for Access Point
AC1600 is a small-scale enterprise use gateway with Gigabit WAN ports up to 4, improved the Ethernet speed and increased the concurrent end users to 150; It can access into cloud server for remote management and multiple captive portal authentication such as SMS, Facebook, Google, member login method, to apply this device into shopping mall, restaurant for advertisement and second time selling.
Besides that, AC1600 is an AC controller to manage, control and monitor 100PCS wireless access point in the same networking diagram simultaneous, very easy to set up this desktop AC controller, then to keep the whole networking stability.
Gateway operation mode functions:
Multi Gigabit WAN with load balance function
AC1600 support PPPoE/DHCP/Static IP, work with different ISP and max 150 end users can access into it.
It with multiple Gigabit WAN ports up to 4 in hardware, then load balance function for this WAN Ethernet to avoid bandwidth overload, or recover the dropped networking line to ensure the whole networking smoothly;
Besides that, it support Ethernet Line backup function to keep Ethernet in working status all the time; Support Ethernet superimposed based on multi-WAN.
Flow Control function (QoS)
Based on the IEEE 802.11e standard, it provides basic Quality of Service(QoS) features to end users according to IP/MAC address;
Besides that, it can control the flow after set priority for instant messaging service, download, video or office...
Access into Cloud Server for Remote Management, Captive Portal authentication, advertisement and accounting functions
AC1600 can access into cloud server when work as gateway for remote management and captive portal:
Through cloud server, administrator easy to reset/reboot/delete AC1600 or the connected wireless AP remotely, then track/collect the end user’s information for second sale.
It easy for administrator to promote the advertisement to end users based on captive portal like SMS authentication, Facebook/Google/member authentication; Or collect the Ethernet cost after set up a stable public WiFi.
Multi firewall and simple behavior functions
AC1600 support port forwarding, Url Filter, IP Filter, MAC Filter, DMZ, DDNS functions to protect the networking safety, besides that, it support behavior based on IP group and time group to improve the performance and bandwidth efficiency.
Wireless AP Management functions:
Assign IP address for wireless AP to avoid IP address conflict and easy management
Mark Wireless AP’s location and name to examine networking problem faster;
Add Zero Config group before power on wireless AP, then wireless AP will get this group’s SSID, password channel, bandwidth, RF power and so on without any config;
Or config Wireless AP’s SSID, password, tag VLAN, channel, end users QTY, client isolation... One by one or in group based on requirement.
Firmware upgrade, Reset/reboot/delete/back up wireless AP in batch or one by one based on web management or cloud management.
Hardware Technical Data
Hardware Data | |
Model | AC1600 |
QTY of manageable AP | 100PCS max |
CPU | RTL8198C |
FLAH | 128M |
DDR3 | 512M |
Interface |
1*10/100/1000M Gigabit WAN Port, 4*10/100/1000M Gigabit LAN Ports in default; Multi WAN up to 4 if required 1 Reset Button |
Dimension | 294mm X 180mm X 44mm |
Power | 100-240V~ 50/60Hz |
power consumption | < 10W |
Weight | <1.5KGS |
Working Temperature | -10℃~ 50℃ |
Working Humanity | 10% ~ 90%RH (No condensation) |
Storage Temperature | -40℃ ~ 70℃ |
Storage Humanity | 5% ~ 90%RH (No condensation) |
Working Diagram:
1. Working as AC controller
2. Working as Gateway and AC controller
