Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | MR100 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | Metal | Chipset: | MT7621 |
---|---|---|---|
Flash: | 16M | RAM: | 256M |
PoE: | 24V Passiv PoE | Power: | 72W |
High Light: | home network router,network distribution box |

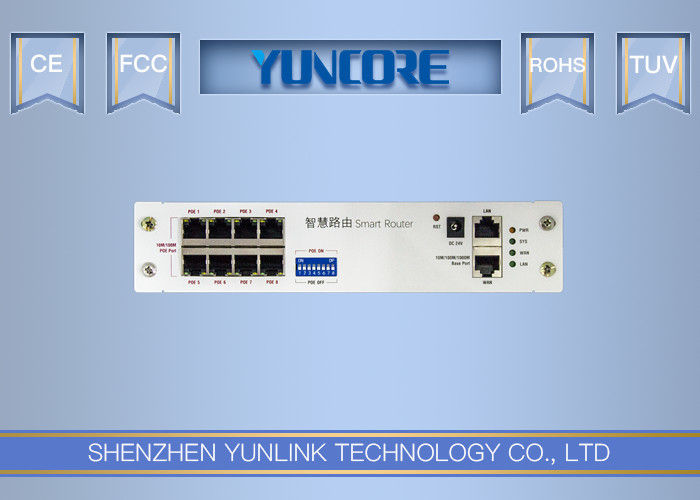

Home WiFi Coverage Smart Router with WLAN Controller + PoE Switch Function
MR100 is an device work in network distribution box but with smart router, WLAN controller ,PoE Switch and Authentication gateway functions together.
There are 8*10/100Mbps RJ45 ports, when PoE button on, then this port can supply Ethernet and 24V PoE power for the connected in wall wireless AP or IP cameras; When PoE off, this port can supply Ethernet to IPTV, desktop PC or other network device, which meet with different home network request, further upgrade and integrate the existing home Wi-Fi status.
There is one gigabit LAN port, which can connect with PC, then login the smart router’s WEB interface to setup MR100 or centralized to configure and manage the connected wireless AP;
There is Gigabit WAN port, support PPPoE, Dynamic IP, Static IP, when connect to different ISP network, MR100 will automatic to detect the network type and supply Internet to LAN and PoE ports.
Besides that, it is an authentication gateway also, support local authentication and remote authentication under cloud server, especially captive portal authentication like Google login, Facebook Login, WeChat Login, SMS Login...
Main Features:
Full Wi-Fi Coverage
Mount in wall wireless AP in each room, bring full Wi-Fi Coverage, freely and stable wireless Ethernet access, then centralized configured and managed by MR100, easy and simple.
Smart Flow Control
Intelligent to detect the user QTY, network traffic, wireless signal strength, then control user’s flow to supply a freely internet experience
OPENWRT support
MR100 with MTK chipset, it supply OPENWRT, customer can develop their own firmware for this device, to comply with their management system.
Energy Saving
It is easy to power on/off each in wall wireless AP if no users in certain room to save the energy, but not affect others.

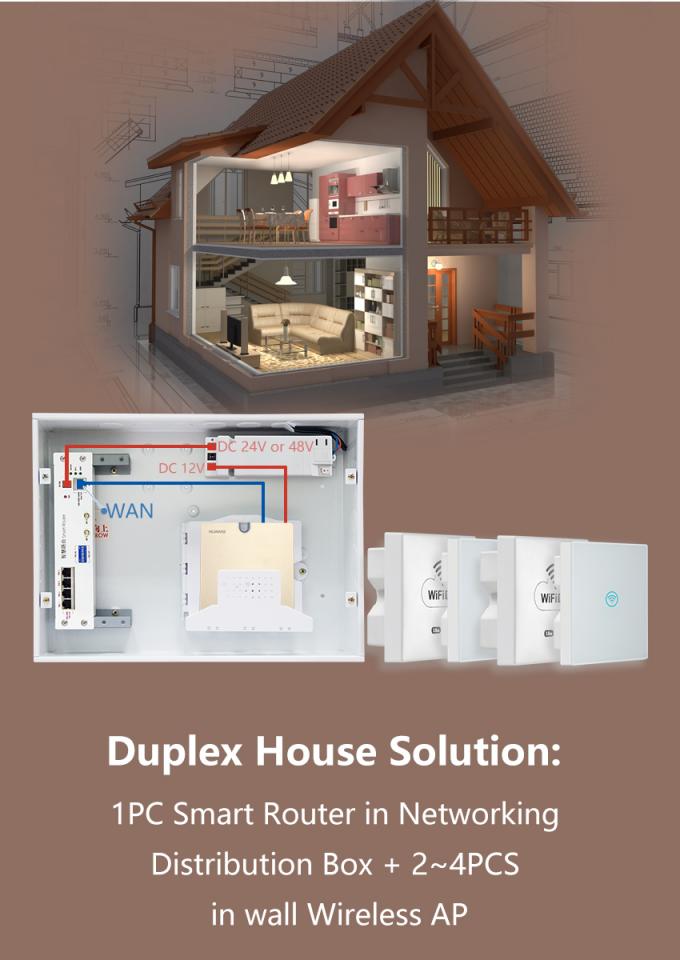

Installation concealed with PoE power supply
MR100 is integrated in networking distribution box and supply PoE power, work with in wall wireless AP, all cable is embedded in the wall, security and concealment, safety, tidy and perfectly comply with home decoration.
Cloud Management and Maintenance
MR100 support remote maintenance from cloud server if out of service, members can solve the problem at any place, any time.
Spec:
Hardware | |
Model | MR100 |
CPU | MTK7621 |
Flash | 16MB |
SDRAM | 256MB |
PoE Output | Passive 24V PoE |
PoE Power | 72W in total, max 10W for each RJ45 port. |
Size | 229mm * 49.5mm * 28.0mm |
Weight | <400g |
Interface |
1 * 10/100M/1000Mbps LAN port 1 * 10/100M/1000Mbps WAN port 8* 10/100Mbps LAN ports, support 24V Passive PoE if need 8 * PoE Control Button, PoE ON/PoE OFF 1 * DC port, 24V/3A 1 * Reset Button |
Reset | Reset Button, press 10 seconds to revert to default data. |
LED Indicator | PWR(Power), SYS(System), WAN, LAN |
Power Consumer | <8W |
Working Environment |
Working Temperature: -20℃ ~ +50℃ Storage Temperature: -40℃ ~ +70℃ Humidity:5%~95% (No condensation) |
