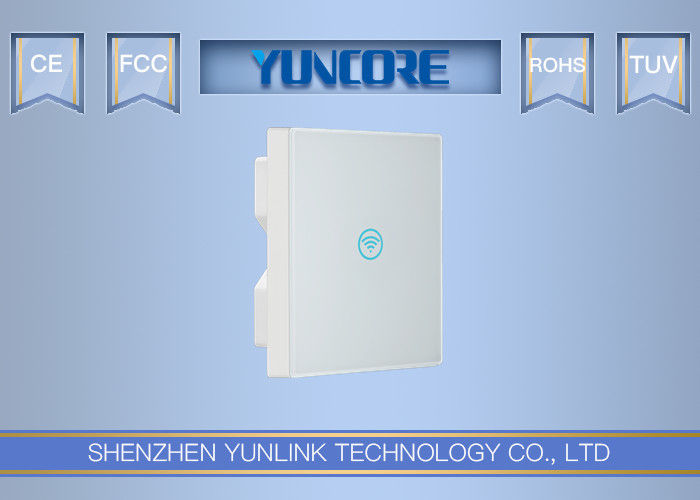

802.3af PoE In Wall Wireless Access Point OpenWRT Available Qualcomm Chipset

802.3af PoE In Wall Wireless Access Point OpenWRT Available Qualcomm Chipset

802.3af PoE In Wall Wireless Access Point OpenWRT Available Qualcomm Chipset

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: PW335

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: ABS Chipset: QCA9531
Band: 2.4G 300Mbps Interface: Touchable
Color: Black, White, Gold Working Mode: AP, Repeater, Gateway
High Light:

wall mount access point

,

wall plate wireless access point

300Mbps Data Rate 802.3af PoE , Qualcomm Chipset , OpenWRT support , In Wall Wireless AP



Description


It is an wall plate design Wireless AP with power touchable glass screen, 300Mbps data rate, designed for home, apartment, hotel rooms to provide users with more security, high speed and most stable Internet access, then power save for environment protection at the same time.



Main Features:


1.In wall design with touchable class screen, match with the cassette with size of 86mm, easy to complete home/hotel socket cover, then more beautiful when embedded into modern decoration style.



2.Compliant with IEEE 802.11b/g/n standard, 300Mbps in data rate, more faster in download, more freely in internet surf.



3.The RJ45 port on the back panel of PW335, support IEEE 802.3af 48V PoE, allow both power and data to be carried over a single Ethernet cable, easy to setup and cost savely.



4.PW335 support WiFi Roaming, User QTY Control and Smart Channel Analysis to make the device in steadily working, provide 5 star WiFi Internet experience for each customer.



5.Support 802.1Q tag VLAN and Multi SSID. PW335 support 4 SSID, each SSID support tag VLAN, the IP staff can assign different users with different SSID, banding different Ethernet data and security method to ensure the networking safety.



6.Support AC Controller and cloud server for central or remote management, very easy to do the maintenance even at home. Besides that, comply with our gateway, can supply advertisement and captive portal authentication like Google/Facebook/SMS/Member Login for shop, hotel, restaurant...



7. PW335 can work with CAPWAP Protocol if needed, work with WLAN controller, plug and play, zero configuration.



Spec:



Wireless
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Data Rate

11n: 300Mbps

11g: 54Mbps

11b: 11Mbps

Frequency Range 2.4-2.4835GHz
Wireless Transmit Power

11n @MCS7:14±2DB, @MCS0:16±2DB.

11g @54M:15±2DB, @6M:17±2DB.

11b @11M:18±2DB, @1M:20±2DB.

Modulation Type OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK
Receive Sensitivity

11n: -70dbm@MCS7, -88dbm@MCS0.

11g: -72dbm@54Mbps, -88dbm@6Mbps.

11b: -85dbm@11Mbps, -94dbm@1Mbps.

EVM

802.11n: ≤-28 DB

802.11g: ≤-25 DB

802.11b: ≤-10 DB

PPM ±20ppm
MAX Users 64
Operation Mode Gateway, AP, Repeater
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES)
System Requirements Windows 7/Vista/XP/2000,Mac OS®, Linux or Android OS
Hardware
Chipset Qualcomm QCA9531
Flash 16M
SDRAM 64M
Interfaces 1 x 10/100Mbps WAN Port
Button Reset Button
Touchable Power Button
Antenna MIMO 2dBi Build-in omni-directional Antenna
Power Supply 802.3af PoE
Dimensions( W x D x H ) 86mm*86mm*27mm
Others
Operating Temperature -20°C~55°C
Storage Temperature -40°C~70°C
Relative Humidity 10% ~ 90%, Non-condensing
Storage Humidity 5%~95%, Non-condensing
Certifications RoHS
Package Contents

1 x in wall AP

1 x Quick Installation Guide

1 x setting accessory





Working Diagram:



802.3af PoE In Wall Wireless Access Point OpenWRT Available Qualcomm Chipset



Installation:



802.3af PoE In Wall Wireless Access Point OpenWRT Available Qualcomm Chipset
