| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE, FCC, RoHS, TUV |
| Model Number: | CPE180H |
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | $20USD/PCS~$23USD/PCS |
| Packaging Details: | Appearance Size: 230mm*75mm*40mm |
| Delivery Time: | 5~8 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 70000PCS |
| Chipset: | Atheros AR9344 | Operation Mode: | AP, Gateway, WISP, Repeater, WDS Mode |
|---|---|---|---|
| Firmware: | SDK & OPENWRT Firmware | ||
| High Light: | wireless outdoor cpe,5.8 ghz wireless bridge |
||
Description:

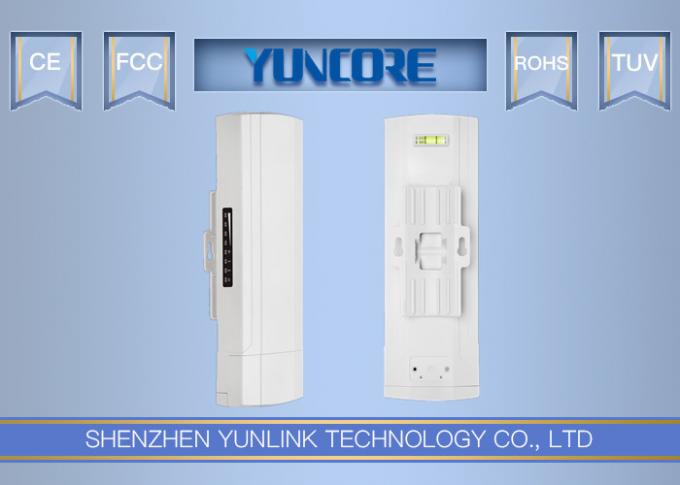

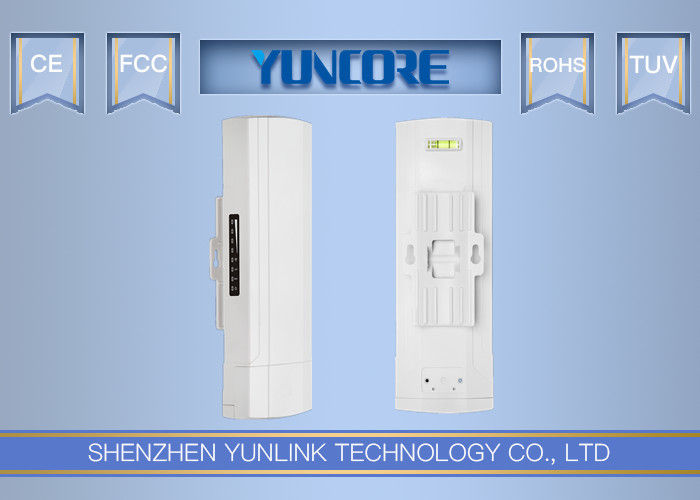

CPE180H is a high performance but economic 5.8G outdoor CPE/Wi-Fi Bridge with 300Mbps data rate. Comply with IEEE802.11a/n standard, Atheros chipset, it provides stable long range Wi-Fi networking. What’s more, with 13dBi high gain antenna, the Wi-Fi distance more than 1000 meters.
Meantime, CPE180H support Gateway, AP, WDS, Wi-Fi Repeater operation mode, with WDS button bridge, easy to establish PTP, PTMP connection, then it support Power over Ethernet, 24V passive PoE, with LED light show signal strength, easy to find a suitable installation place, save much human work and cost.
Besides that, it can access into cloud server for device remote management, maintenance, make this device is widely used in CCTV, Village long-range data transmit, Park, Squares...
Main Features:
ABS waterproof, dustproof and sunscreen shell, temperature adaptive and board protective.
CPE180H with ABS waterproof, dustproof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -30℃ to 55℃. Suit for any country
Main Features:
ABS waterproof, dustproof and sunscreen shell, temperature adaptive and board protective.
CPE180H with ABS waterproof, dustproof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -30℃ to 55℃. Suit for any country
13dBi High Gain Antenna, Long Range Wi-Fi Device in the market.
CPE180H with 14dBi high gain antenna, the Wi-Fi range is more than 1000 meters, it is the device with very stable performance in long range, but competitive in price.
5GHz frequency, more channels, lower latency, higher stability
CPE180H with the full frequency of 5020~6100MHz, more than 100 channels available, it avoids the same frequency interference problem, full meet with data transmission in fast speed, low delay, high stability requirement in wireless security or data transmission.
Multiple operation modes: Wireless AP, Wireless Router, Wi-Fi Repeater, WDS
With the operation model of Wi-Fi repeater, it is a Wi-Fi device to bridge the existing Wi-Fi signal and transmission out for more range.
With the operation of Gateway/ AP, it provides a wireless signal for end users.
With WDS mode and WDS button bridge, easy to do WDS connection by press the WDS switch button, no need to access into GUI.
Support Power over Ethernet, Cost Save
The device has integrated Power over Ethernet (PoE) for easy installation and lower cost, with 24V PoE, it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Easy configure and install, remote control
CPE180H with humanized GUI configuration steps, simple to complete the entire system configuration, supply more efficient service for your networking. With LED signal lights to show signal strength, easy to find a suitable place of outdoor CPE, then firmware complies with Cloud Management System, which helps in central management and remote maintenance, save much human work and cost, more professional in outdoor wireless networking solution.
Spec:
| Standard | IEEE802.3, IEEE 802.11n, IEEE 802.11a | ||||
| Chipset | Atheros AR9344 | ||||
| Frequency | 5020~6100MHz, | ||||
| Channel | CH4~CH220 | ||||
| Modulation | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK | ||||
| Data Rate |
11n: up to 300Mbps 11a: up to 54Mbps |
||||
| Protocol | CSMA/CA, CSMA/CD, TCP/IP, ICMP, NAT, PPPoE, DHCP, Wired static, Wifi Client, UDP, DDNS | ||||
| Operation Mode | AP, Gateway, Bridge, Repeater, WDS | ||||
| Security |
64/128bit WEP WPA(AES,TKIP with IEEE 802.1x) WPA2(AES, TKIP with IEEE 802.1x) |
||||
| RF Output Power | 802.11a | 54M | 17±2dBm | 6M | 20±2dBm |
| 802.11n HT20 | MCS7 | 16±2dBm | MCS0 | 19±2dBm | |
| 802.11n HT40 | MCS7 | 15±2dBm | MCS0 | 18±2dBm | |
| Receive Sensitivity | 802.11a | 54M | -72dBm | 6M | -90dBm |
| 802.11n HT20 | MCS7 | -70dBm | MCS0. | -88dBm | |
| 802.11n HT40 | MCS7 | -68dBm | MCS0. | -86dBm | |
| EVM |
802.11a_54M: ≤-25 dB; 802.11n_MCS7: ≤-28 dB |
||||
| PPM | ±20ppm | ||||
| Antenna | 13dBi MIMO Panel antenna | ||||

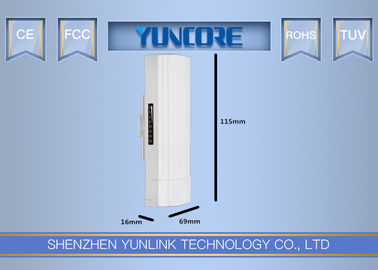

| Size(mm) | 208mm * 86 mm * 43mm | ||||
| Working Temperature | -30°C ~ 55°C | ||||
| Storage Temperature | -40°C ~ 70°C | ||||
| Humidity | 5% ~ 95% (Non-condensing) | ||||
| Interface |
1 * RJ-45 WAN Port, 24V PoE support 1 * RJ-45 LAN Port, 24V PoE support 1 * Reset Button 1 * DC Jack 1 * WDS Switch Button, press to do WDS connection |
||||
| Power |
Output: DC12V/0.5A POE 24V/0.5A |
||||
| Max Power Consumption | < 5W | ||||
| LED Light | Power, Wi-Fi, WAN, LAN, Signal Strength | ||||
Data of 13dBi Panel Antenna:
| Frequency range(MHz) | 5150～5850 | |
| Bandwidth(MHz) | 700 | |
| Polarization | Vertical and Horizontal | |
| Gain(dBi) | 2×13 | |
| Half-power beam width(°) | Vertical | V: 20 |
| Horizontal | H: 60 | |
| Input Impedance(Ω) | 50 | |
| VSWR | ≤1.8 | |
| Operating Temperature(°C) | -40~60 | |
Accessory:
24V/0.5A PoE Adapter for Passive PoE Device
Setting Accessory
LAN Cable
User Manual
