Place of Origin: | China |
Brand Name: | 100% neutral |
Certification: | CE, FCC, RoHs, TUV |
Model Number: | PW550 |
Minimum Order Quantity: | 500pcs |
---|---|
Price: | $22/PCS~$25/PCS |
Packaging Details: | Appearance Size : 86*86*35mm |
Delivery Time: | 5~8 working days |
Payment Terms: | T/T |
Supply Ability: | 60000pcs per month |
High Light: | wall mount access point,wall plate wireless access point |
---|
Description:

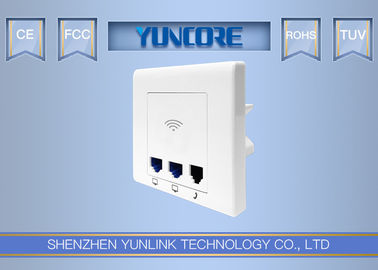

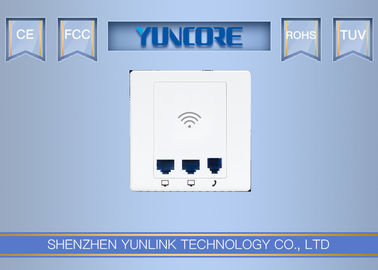

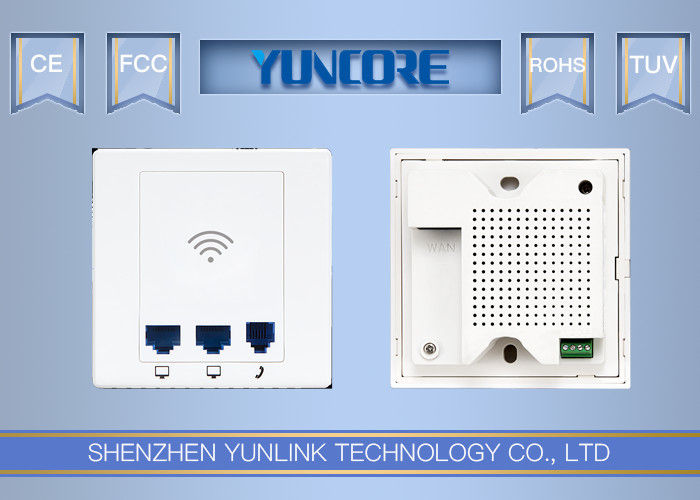

It is an in-wall AP with 300Mbps data rate with Qualcomm Chipset, with 3*RJ45 ports and 1*RJ11 port, designed for hotel/home mainly to provide Wi-Fi Internet access for users and LAN internet for TV/PC... in the hotel room, guest room, living room, and lobby.
It supports 802.3af PoE, compliant with any 802.3af Power over Ethernet equipment, easy in setting and complete the full Wi-Fi coverage.
Managed by WLAN controller, it is easy to configure the data in central or remotely; Then can work with cloud server for portal authentication and advertisement function.
Main Features:
Specifications:
Wireless | |
Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Data Rate |
11n:300Mbps 11g: 54Mbps 11b: 11Mbps |
Frequency Range | 2.4-2.4835GHz |
Wireless Transmit Power |
11n @MCS7:14±2DB, @MCS0:16±2DB. 11g @54M:15±2DB, @6M:17±2DB. 11b @11M:18±2DB, @1M:20±2DB. |
Modulation Type | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
Receive Sensitivity |
11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps,-88dbm@6Mbps. 11b: -85dbm@11Mbps,-94dbm@1Mbps. |
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
PPM | ±20ppm |
MAX Users | 64 |
Operation Mode | Gateway, AP, Repeater |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES) |
System Requirements | Windows 7/Vista/XP/2000, Mac OS®, Linux or Android OS |
Hardware | |
Chipset | Qualcomm QCA9531 |
Flash | 16M |
SDRAM | 64M |
Interfaces | 3 x 10/100Mbps LAN/WAN Port, 1 x RJ11 port |
Button | Reset Button |
Antenna | MIMO 2dBi Build-in Omni-directional Antenna |
Power Supply | 802.3af PoE |
Dimensions( W x D x H ) | 86mm*86mm*35mm |
Others | |
Operating Temperature | -20°C~55°C |
Storage Temperature | -40°C~70°C |
Relative Humidity | 10% ~ 90%, Non-condensing |
Storage Humidity | 5%~95%, Non-condensing |
Certifications | RoHS |
Package Contents |
1 x in wall AP 1 x Quick Installation Guide 1 x setting accessory |
