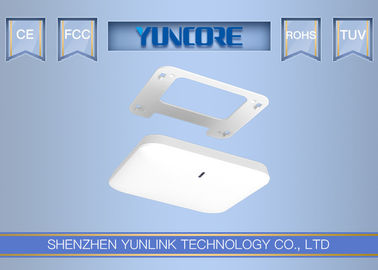

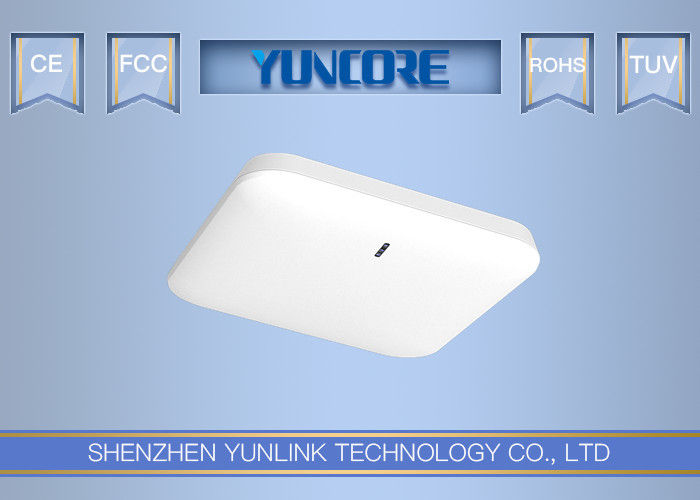

CE 802.11 AC Access Point Tri Band Ceiling Mount Wireless AP With IPQ4019 Chipset

Product Details:

Place of Origin:	China
Brand Name:	100% Neutral
Certification:	CE, FCC, RoHs
Model Number:	XD6800

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	$65/PCS~$70/PCS
Packaging Details:	Appearance Size: 198mm198mm32mm
Delivery Time:	14-working days
Payment Terms:	T/T
Supply Ability:	40000pcs per month

Contact Now

Detailed Product Description

Frequency:	Tri-Band	Wireless Data Rate:	2200Mbps
RF-POWER:	≤26dBm
High Light:	wireless ac access point , ceiling access point

Frequency:

Tri-Band

Wireless Data Rate:

2200Mbps

RF-POWER:

≤26dBm

High Light:

wireless ac access point

ceiling access point

Main Features:

Comply with IEEE 802.11ac/b/g/n, Tri-band, 2.4Ghz + 5.8Ghz +5.8Ghz = 2200Mbps Data Rate
1*10/100/1000Mbps WAN Port, 1*10/100/1000Mbps LAN Port, faster Ethernet.
300mW high power, build in 3dBi MIMO antenna, stronger signal strength, more wireless coverage, 32M Flash, 512M DDR3 RAM, more user, more stable
Support active IEEE 802.3at 48V PoE standard
Support SSID broadcasting, Multi SSID up to 12 (4 SSID in 2.4GHz, 8 SSID in 5GHz)
Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP operation mode
With the function of build in the firewall, IP filter, URL filter, and MAC filter
Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in a different environment
Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, EAP, 128bit WPA (TKIP/AES) security

Product Spec.:

Hardware:
Chipset	Qualcomm IPQ4019+QCA9886+QCA8075
Standard	802.11ac/b/g/n, MIMO technology
Memory	512MB DDR3 RAM
Flash	32MB
Interface	1 * 10/100 /1000Mbps RJ45 WAN Port
	1 * 10/100 / 1000Mbps RJ45 LAN Port
	1 * Reset button, press 10 seconds to revert to the default setting
Antenna	Build in 3dBi MIMO Antenna
Power consumption	48V PoE<30W
Size	19819832mm
Weight	Net weight: 885g; With box: 1136g
RF Data
Frequency	2.4G:802.11b/g/n: 2.4GHz – 2.484GHz
Frequency	5GHz:802.11a/n/ac MIMO: 5.150GHz～5.850GHz
Country code	FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN
Modulation	OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM
Modulation	DSSS = DBPSK, DQPSK, CCK
Throughput	2200Mbps
2.4G RF Power (IPQ4019)	802.11b	11M	23±2dBm	1M	25±2dBm
	802.11g	54M	22±2dBm	6M	24±2dBm
	802.11n HT20	MCS7	21±2dBm	MCS0	23±2dBm
	802.11n HT40	MCS7	21±2dBm	MCS0	23±2dBm
5G RF Power (IPQ4019)	802.11a	54M	19±2dBm	6M	21±2dBm
	802.11n HT20	MCS7	18±2dBm	MCS0	20±2dBm
	802.11n HT40	MCS7	18±2dBm	MCS0	20±2dBm
	802.11ac HT80	MCS9	17±2dBm	MCS0	19±2dBm
5G RF Power (QCA9886)	802.11a	54M	19±2dBm	6M	21±2dBm
	802.11n HT20	MCS7	18±2dBm	MCS0	20±2dBm
	802.11n HT40	MCS7	18±2dBm	MCS0	20±2dBm
	802.11ac HT80	MCS9	17±2dBm	MCS0	19±2dBm
2.4G Receive Sensitivity	802.11b	11M	-85dBm	1M	-94dBm
	802.11g	54M	-72dBm	6M	-90dBm
	802.11n HT20	MCS7	-70dBm	MCS0	-88dBm
	802.11n HT40	MCS7	-68dBm	MCS0	-86dBm
5G Receive Sensitivity	802.11a	54M	-72dBm	6M	-90dBm
	802.11n HT20	MCS7	-70dBm	MCS0	-88dBm
	802.11n HT40	MCS7	-68dBm	MCS0	-86dBm
	802.11ac HT80	MCS9	-58dBm	MCS0	-85dBm
EVM	2.4G EVM: 802.11b: ≤-10 dB; 802.11g: ≤-25 dB; 802.11n: ≤-28dB 5G EVM: 802.11a: ≤-25 dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB
PPM	±20ppm
Max Users	256+
Firmware Features:
Operation mode	Wireless AP, Gateway, WISP, WiFi Repeater
WAN Type	Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security	64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SSID	Multiple SSID (4 SSID for 2.4G, 8 SSID for 5.8G)
Firewall	DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding
Protocols	IPv4
Others:
Package Contents	2200Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment	Operating Temperature: -20~55 ℃ Limit working temperature: -30~70 ℃ Storage Temperature: -40~70 ℃ Humidity: 5%~95% non-condensing
Management	Firmware GUI, Remote Management, WLAN Controller, Cloud Management System
