Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | CPE850/CPE850SR |
Minimum Order Quantity: | 1000 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 10000 PCS/ WEEK |
Material: | ABS | Chipset: | Realtek RTL8197 |
---|---|---|---|
Flash: | 8M | RAM: | 64M |
Power: | 500mW | Antenna: | 15 DBi Panel Antenna |
High Light: | outdoor cpe device,5.8 ghz wireless bridge |

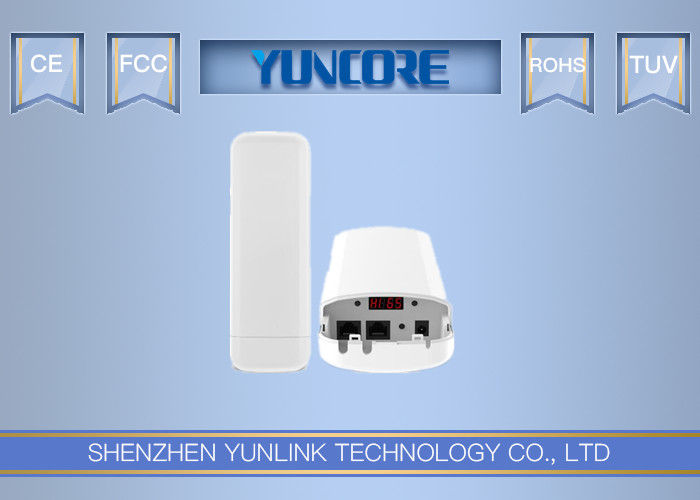

900Mbps 15dBi Panel Antenna PTP PTmP 5KM 5.8G Outdoor Wireless CPE Dustproof Waterproof
Features:
More RF Power, More WiFi Range
More RF Power up to 28dBm, equipped with 15dBi Panel Antenna, PTP WiFi distance up to 3000 meters. Meanwhile, the RF Power is adjustable for different country to comply with different WiFi Standards.

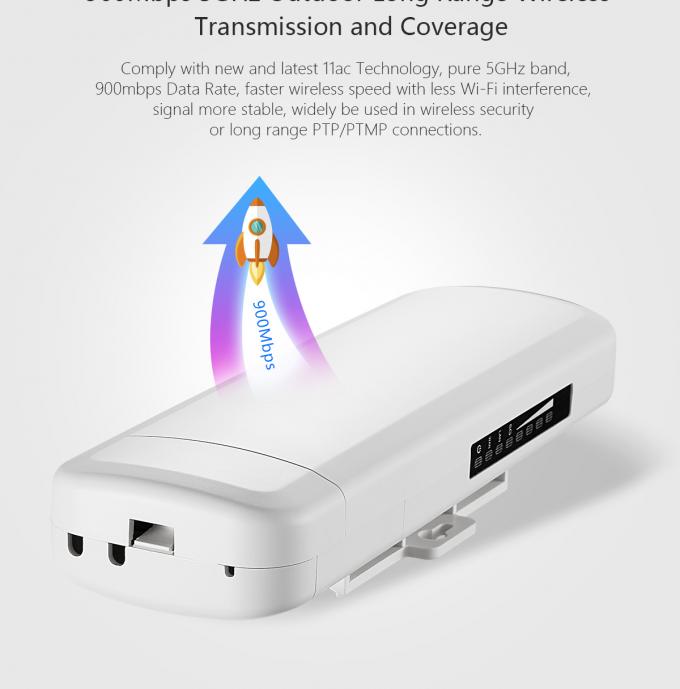

11ac, 5.8G, 900Mbps Wireless Speed
Comply with IEEE 802.11ac/a standard,5.8G, 900Mbps data rate for more smoothly data transmission

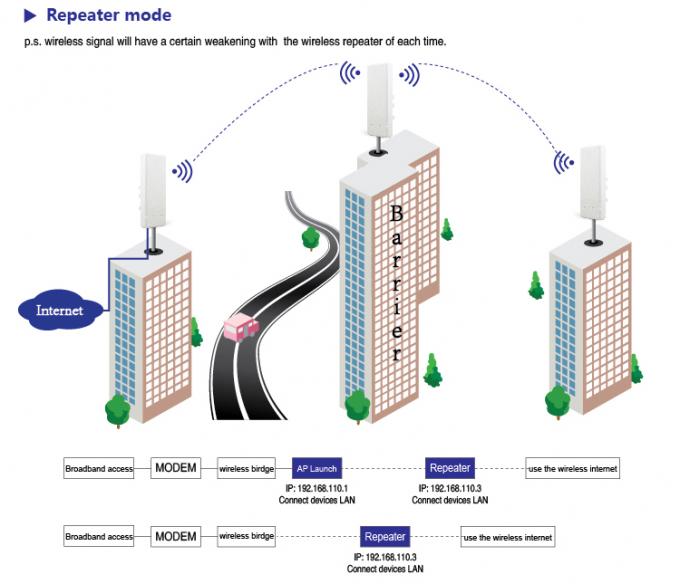

Multi operation mode for different environment
CPE850 support multi operation mode such as Gateway, Wireless AP, Repeater, WISP, WDS mode to meet with multi application for different environment.
PoE Power and DC Power together make installation flexibility
CPE850 Support 24V passive PoE for some areas where power outlets are not readily available; It support DC power supply for some area near to power socket, flexibility in installation

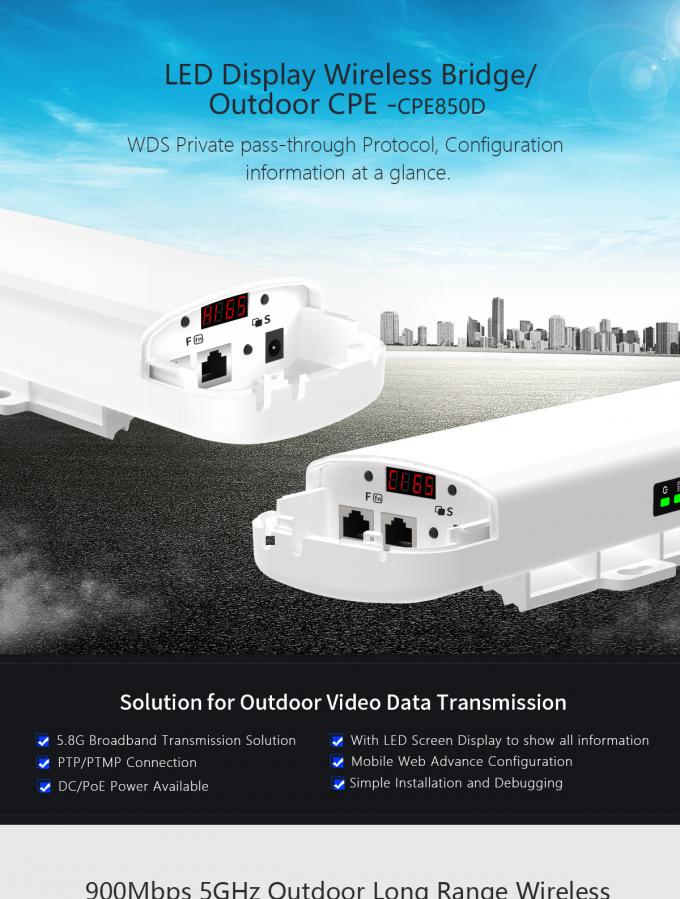

Excellent Outdoor Weatherproof and Lighting Protection
With an outdoor waterproof and dustproof enclosure,buidling in lighting protection IC, CPE850 can be used in various weather conditions for stable performance
Spec:
Hardware: | |
Chipset | RTL8197DN+RTL8812AR+RTL8211E |
Standard | 802.11ac/a/n, MIMO technology |
Memory | 64MB DDR2 RAM |
Flash | 8MB |
Interface | 1 * 10/100 /1000Mbps RJ45 WAN Port |
1 * 10/100 Mbps RJ45 LAN Port | |
1 * Reset button, press 15 seconds to revert to default setting | |
Antenna | Build in 14dBi MIMO Panel Antenna |
Power consumption | 24V PoE<13W |
Size | L 257mm, W: 87mm, H: 38 mm |
RF Data | |
Frequency |
5GHz:802.11a/n/ac |
5GHz | |
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
DSSS = DBPSK, DQPSK, CCK | |
Throughput | 900Mbps |
RF Power |
802.11a:54M 23±2DB,6M 262 DB. 802.11n HT20:MCS7 23±2DB, MCS0 26±2DB. 802.11n HT40:MCS7 22±2DB, MCS0 25±2DB. 802.11ac HT80:MCS9 20±2DB, MCS0 23±2DB. |
Receive Sensitivity |
802.11a: -72dbm@54Mbps; -90dbm@6Mbps. 802.11n HT20: -70dbm@MCS7, -90dbm@MCS0 . 802.11n HT40: -66dbm@MCS7, -90dbm@MCS0 . 802.11ac HT80:-60dbm@MCS9, -86dbm@MCS0 . |
EVM |
802.11a: ≤-25 DB 802.11n: ≤-28 DB 802.11ac: ≤-28 DB |
PPM | ±20ppm |
Max Users | 64+ |
Firmware Features: | |
Operation mode | Wireless AP, Gateway, WISP, Wi-Fi Repeater |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
SSID | Multiple SSID up to 4 |
Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
Protocols | IPv4 |
Others: | |
Package Contents |
900Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
Environment | Operating Temperature: 0~40 ℃(32 ℉~104℉) Storage Temperature: -40~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
Management | Firmware GUI ,Remote Management, WLAN Controller, Cloud Management System |

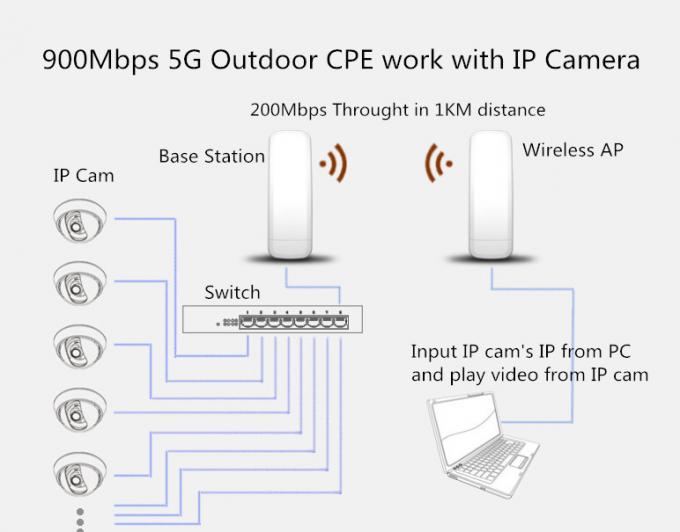

Working Diagram:
