Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC |
Model Number: | AC7000 |
Minimum Order Quantity: | 10 |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 500PCS/ WEEK |
CPU: | Reaktek RTL8198C | RAM: | 512MB |
---|---|---|---|
Material: | Metal | Flash: | 128MB |
Port: | 5*Gigabit Port | Power: | AC100`240V |

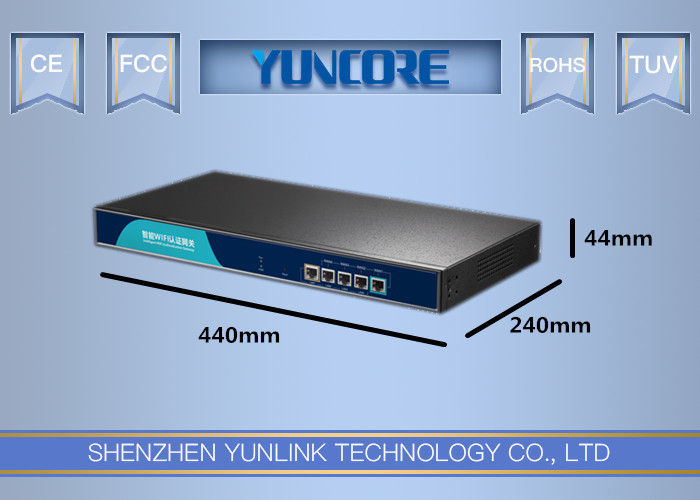

Szie: | 440mm*240mm*44mm | Power Consumption: | < 10W |
High Light: | wifi lan controller,wireless lan gateway |
Intelligent Multi - WAN Authentication Gateway & Controller 300PCS AP Can Be Managed
AC7000 is a middle-scale enterprise use gateway with Gigabit WAN ports up to 4, improved the Ethernet speed and increased the concurrent end users to 300; It can access into cloud server for remote management and multi captive portal authentication such as SMS, facebook, google, member login method, to apply this device into shopping mall, restaurant for advertisement and second time selling.
Gateway operation mode functions:
A. Multi Gigabit WAN with load balance function
It with multi Gigabit WAN ports up to 4 in hardware, then load balance function for this WAN Ethernet to avoid bandwidth overload, or recover the dropped networking line to ensure the whole networking smoothly;
B. Flow Control function (QoS)
Based on the IEEE 802.11e standard, it provides basic Quality of Service(QoS) features to end users according to IP/MAC address;
C. Access into Cloud Server for Remote Management, Captive Portal authentication, advertisement and accounting functions
AC7000 can access into cloud server when work as gateway for remote management and captive portal:
Through cloud server, administrator easy to reset/reboot/delete AC7000 or the connected wireless AP remotely, then track/collect the end user’s information for second sale.
D. Multi firewall and simple behavior functions
AC7000 support port forwarding, Url Filter, IP Filter, MAC Filter, DMZ, DDNS functions to protect the networking safety, besides that, it support behavior based on IP group and time group to improve the performance and bandwidth efficiency.
Others
AC7000 with humanity Web management, which combined with picture and words, more convenience and humanity when control it;
With desktop metal case and lightning protection function, set up easily, then more safety in application.
Hardware Technical Data
Hardware Data | |
Model | AC7000 |
QTY of manageable AP | 300PCS max |
CPU | RTL8198C |
FLAH | 128M |
DDR3 | 512M |
Interface |
1 10/100/1000M Gigabit WAN Port, 4 10/100/1000M Gigabit LAN Ports in default; Multi WAN up to 4 if required 1 Reset Button |
Dimension | 440mm X 240mm X 44mm |
Power | 100-240V~ 50/60Hz |
power consumption | < 10W |
Weight | <2.5KGS |
Working Temperature | -10℃~ 50℃ |
Working Humanity | 10% ~ 90%RH (No condensation) |
Storage Temperature | -40℃ ~ 70℃ |
Storage Humanity | 5% ~ 90%RH (No condensation) |
Working Diagram:
