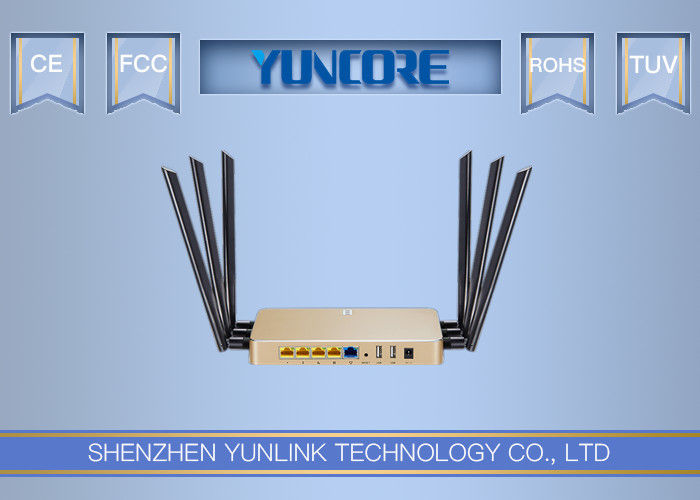

High Speed High Conversion Rate Gigabit Wireless Router 1200Mbps CE Certificated

High Speed High Conversion Rate Gigabit Wireless Router 1200Mbps CE Certificated

High Speed High Conversion Rate Gigabit Wireless Router 1200Mbps CE Certificated

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: SR3200

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: Metal Chipset: QCA9563
Flash: 16M RAM: 128M
Power: 1000mW Port: 1*10/100/1000 WAN, 4*10/100/1000 LAN
High Light:

dual band wireless router

,

ac1200 wireless router

Enterprise Qualcomm Chipset 1200Mbps high speed high conversion rate Gigabit Wireless Router


SR3200 is an Atheros Chipset high power industrial use Wireless Router with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equiped Gigabit WAN/LAN port, fast ethernet data rate make more than 100 end users can acccess into SR3200 to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall...


Main Features:



1200Mbps high speed and NAT high conversion rate


SR3200 comply with 802.11ac technology to provide up to 1200Mbps wireless access speed, it is 4 times higher than 802.11b/g/n products, while the NAT conversion rate> 93% s to achieve faster download/upload speed, make online surfing arbitrary.



Dual-band wifi analyzer


Through wifi analyzer function of the surrounding wireless signal field strength and channel analysis, follow up the results to select the channel with less interference, can effectively control the WiFi interference between each Wireless AP, to creat a stable and smoothly wireless network.



Manual adjustable RF Power


Designed in Power Amplifier on PCB board, greatly improved the WiFi signal wall-pass-through capacity and expand the WiFi coverage, And then the RF power is manual adjustable to reduce WiFi Interference and improve wireless stability based on requirement.



USB Storage and file sharing


With USB2.0 port, support DLNA, Samba and TFTP server, easy to do USB storage and sharing through Wireless Signal.



Multiple Operation Mode for Multiple Application


Support Wireless AP, Gateway, WiFi Repeater to meet with different installation requirement



Multiple Enryption Protection


Support SSID broadcast, SSID hidden, wireless MAC address filtering, Tag VLAN based on multi-SSID, multi-encryption like WEP encryption and WPA/WPA2, WPA-PSK/WPA2-PSK, to ensure the whole network safety.



Intelligent bandwidth


Bandwidth control is flexibly enabled according to the actual bandwidth utilization. It can control the bidirectional bandwidth for each host (IP) in the network and ensure the network is always smooth.



WEB Management and Captive Portal


Built in DHCP server, distribut IP address automatically. Support WEB management, firmware upgrading and cloud server access for captive portal



Spec:



Hardware:
Chipset Atheros QCA9563 + QCA9882 +QCA8334
Standard 802.11ac/b/g/n, MIMO technology
Memory 128MB DDR2 RAM
Flash 16MB
Interface 1 * 10/100 /1000Mbps RJ45 WAN Port
4 * 10/100/1000Mbps RJ45 LAN Port
2 * USB 2.0 Port
1 * Reset button, press 15 seconds to revert to default setting
Antenna 6PCS external 6dBi antenna
Power consumption No USB Flash<17W ; With USB Flash<23W
Size 198mm X128mm X 26mm
Weight 501.6g
RF Data





Frequency

2.4G:802.11b/g/n: 5GHz:802.11a/n/ac
2.4GHz,5GHz
Country code FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Throughput 1200 Mbps
Receive Sensitivity & RF Power
Frequency Mode Data Rate Standard Result(dBm) RF Power (±1.0dBm)
CH1 CH6 CH11
2.4GHz 11b 1Mbps ≤-83 -99 -99 -99 29dBm
11Mbps ≤-76 -92 -92 -92
11g 6Mbps ≤-85 -95 -95 -95 29dBm
54Mbps ≤-68 -82 -82 -82 27dBm
11n HT20 MCS0/8 ≤-85 -95 -95 -95 28dBm
MCS7/15 ≤-67 -79 -77 -78 26dBm
11n HT40 MSC0/8 ≤-82 -93 -93 -93 28dBm
MCS7/15 ≤-64 -75 -75 -75 26dBm
5GHz   CH36 CH100 CH149
11a 6Mbps ≤-85dBm -92 -92 -92

26dBm

23dBm

54Mbps ≤ -68dBm -75 -75 -75
11n HT20 MCS0/8 ≤ -85dBm -91 -91 -91 26dBm
MCS7/15 ≤ -64dBm -72 -72 -72 23dBm
  CH38 CH110 CH151
11n HT40 MCS0/8 ≤ -82dBm -88 -88 -88 26dBm
MCS7/15 ≤ -61dBm -70 -70 -70 23dBm
  CH36 CH100 CH149

11ac

HT20

MCS0 ≤-82 -92 -92 -92 26dBm
MCS8 ≤-60 -70 -70 -69 23dBm
  CH38 CH110 CH151

11ac HT40



MCS0 ≤-79 -90 -89 -89 25dBm

MCS9



≤-60



-66



-65



-65



22dBm



  CH42 CH106 CH155

11ac

HT80

MCS0 ≤-79 -87 -87 -87 24dBm
MCS9 ≤-54 -62 -61 -61 21dBm
Firmware Features:
Operation mode Wireless AP, Gateway, WISP, WiFi Repeater
WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SSID Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)
Firewall DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols IPv4
Others:
Package Contents

1200Mbps Dual Band wireless Router

Ethernet Cable

Quick Installation Guide

Power Adapter

6PCS antenna

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0~40 ℃(32 ℉~104℉) Storage Temperature: -40~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Management Firmware GUI , Remote Management, WLAN Controller, Cloud Management System



Working Diagram:
