| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE,FCC,ROHS |
| Model Number: | OAP95 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | Metal | Chipset: | QCA9563 |
|---|---|---|---|
| Band: | 2.4G + 5.8G | Flash: | 16M |
| RAM: | 128M | Power: | 1000mW |
| High Light: | access point base station,outdoor wifi access point |
||

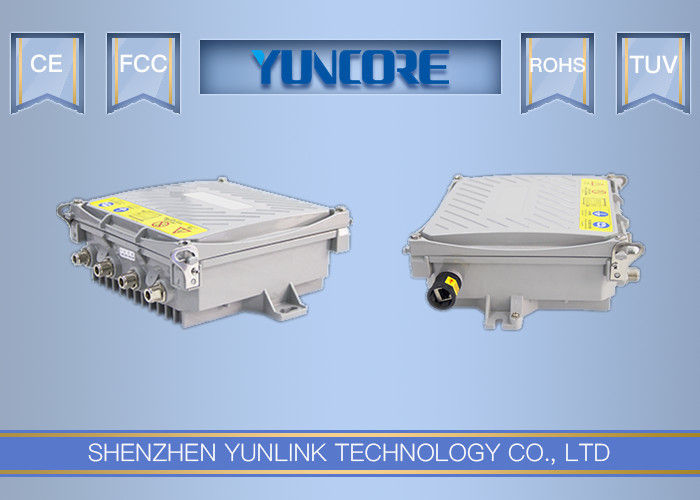

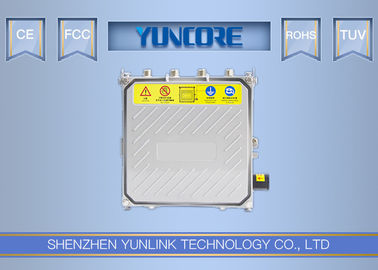

1200Mbps Dual Band IP67 Waterproof Metal Case 802.11ac Outdoor Wireless Hotspot
OAP95 is an Qualcomm Solution 11ac high power industrial use Outdoor CPE with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN port, fast Ethernet data rate make more than 100 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.
Features:
IP67 Metal waterproof, dust proof and sunscreen shell, temperature adaptive
OAP95 with metal waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country.
High Power design, N connector for external antenna, more range and stable signal
Designed in two line Power Amplifier on PCB board, the power can be 1000mW high power, 4PCS N connector,can connect with panel/omni antenna based on request, can greatly increase the Wi-Fi range and supply the stable Wi-Fi signal for users.
Power over Ethernet
OAP95 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Access Controller System & Cloud Management System
Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....
Spec:
| Hardware: | ||
| Chipset | Atheros QCA9563 + QCA9882 +QCA8334 | |
| Standard | 802.11ac/b/g/n, MIMO technology | |
| Memory | 128MB DDR2 RAM | |
| Flash | 16MB | |
| Interface | 1 * 10/100 /1000Mbps RJ45 WAN Port | |
| 1 * Reset button, press 15 seconds to revert to default setting | ||
| Antenna | 4PCS SMA connector | |
| Power consumption | 48V PoE<30W | |
| Weight | 4KGS | |
| RF Data | ||
|
Frequency |
2.4G: 802.11b/g/n; 5GHz: 802.11a/n/ac | |
|
2.4GHz: 2.312GHz to 2.4835GHz 5GHz: 5.020 - 6.1000 GHz |
||
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM | |
| DSSS = DBPSK, DQPSK, CCK | ||
| Throughput | 1200 Mbps | |
| RF Power |
2.4G: 11n @MCS7:26±2DB, @MCS0:28±2DB. 11g @54M:27±2DB, @6M:29±2DB. 11b @11M:28±2DB, @1M:30±2DB. 5.8G: 11a @54M 23.5±2DB, @6M:26.5±2DB. 11n @HT20:MCS7 22.5±2DB, @MCS0:25.5±2DB. 11ac@HT80:MCS9 20.5±2DB, @MCS0:23.5±2DB. |
|
| Receive Sensitivity |
2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. 5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps. 11n@HT20: -70dbm@MCS7, -90dbm@MCS0. 11ac@HT80:-60dbm@MCS9, -86dbm@MCS0. |
|
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB 802.11a: ≤-25 DB |
|
| PPM | ±20ppm | |
| Max Users | 128+ | |
| Firmware Features: | ||
| Operation mode | Wireless AP, Gateway, WISP, Wi-Fi Repeater | |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) | |
| Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption | |
| SSID | Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G) | |
| Firewall | DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
|
| Protocols | IPv4 | |
| Others: | ||
| Package Contents |
1200Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
|
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux | |
| Environment | Operating Temperature: -40~50 ℃, Storage Temperature: -40~70 ℃ Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
|
| Management | Firmware GUI , Remote Management, WLAN Controller, Cloud Management System | |
Working Diagram:
