| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | HW-AP610 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | Metal | Chipset: | Qualcomm QCA9531 |
|---|---|---|---|
| Band: | 2.4G + 5.8G | Flash: | 16M |
| RAM: | 128M | Power: | 500mW |
| High Light: | outdoor wireless ap,outdoor wifi access point |
||
600Mbps High Power with N Female Antenna Connector 802.11 ac Outdoor Base Station

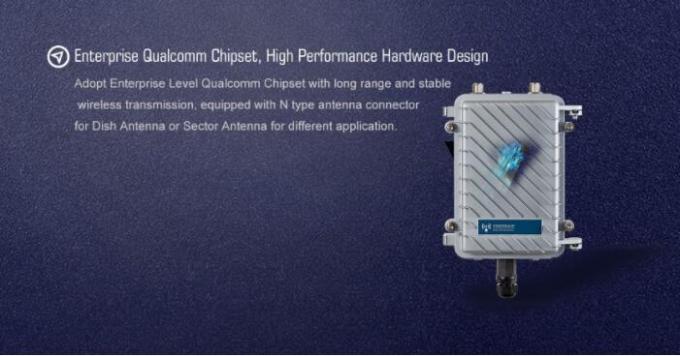

HW-AP610 is an 11ac dual band Outdoor wireless access point with 600Mbps data rate, It comply with IEEE 802.11ac/b/g/n standard, Qualcomm Chipset, 2.4G 150Mbps and 5G 450Mbps high rate, 500mW high power design, with N type antenna connector, for wider outdoor wifi range and more users!
It support wireless AP, Gateway, WiFi Repeater, Bridge, WISP, WDS operation mode, then with N type connector for detachable omni/panel antenna, user can flexibly choose a suitable wireless mode to build or extend the wireless networking based on exist networking structure.

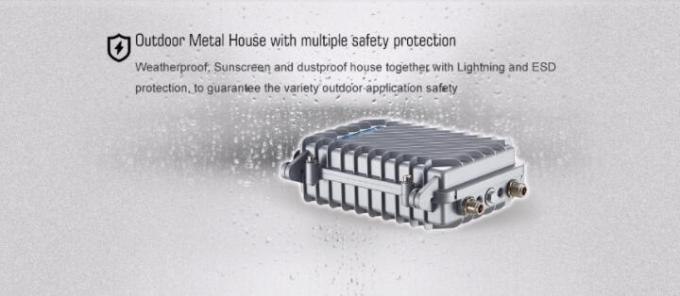

HW-AP610 with metal waterproof, dustproof and sunscreen shell, temperature adaptive, to work in harsh outdoor environment, meanwhile, the auxiliary cooling function make HW-AP610 work normal at -20 to 55 degrees.
HW-AP610 support special frequency and more than 200 channels if need, to avoid the Wi-Fi Interference, guarantee the stable wireless connection.
Last and important, HW-AP610 work with Yuncore's AC controller for central management under wireless AP operation mode, then can work with cloud server for captive portal authentication or advertisement when AC controller or HW-AP610 under gateway operation mode.
Spec:
| Specification: | |
| Hardware: | |
| Chipset | Qualcomm QCA9531+QCA9887 |
| Wireless | 802.11ac, 1T1R 600Mbps |
| Memory | 128MB DDR2 RAM |
| Flash | 16MB |
| Interface | 1* 10/100 Mbps RJ45 Port, support 48V active PoE |
| 1 * Reset Button | |
| Antenna | N Connector, can connect with panel antenna/omni antenna |
| LED Light | WAN, LAN |
| Size | 230mm * 150 mm * 80 mm |
| Power | POE 48V (24V PoE is optional); 110V/220V |
| RF Date: | |
| Frequency | 2.4G:802.11b/g/n , 5.8GHz:802.11a/n/ac MIMO |
|
2.4GHz: 2.312GHz to 2.4835GHz 5GHz: 5.020 - 6.1000 GHz |
|
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Data Rate |
2.4G: 150Mbps 5.8G: 450Mbps |
| Receive Sensitivity |
2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. 5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps. 11n: -70dbm@MCS7, -90dbm@MCS0. 11ac:-60dbm@MCS9, -86dbm@MCS0. |
| RF Output Power |
2.4G: 11n @MCS7:22±2DB, @MCS0:24±2DB. 11g @54M:23±2DB, @6M:25±2DB. 11b @11M:25±2DB, @1M:27±2DB. 5.8G: 11a @54M:22±2DB, @6M:24±2DB. 11n @MCS7:20±2DB, @MCS0:22±2DB. 11ac @MCS9:19±2DB, @MCS0:21±2DB. |
| EVM |
11n: ≤-28 DB 11g: ≤-25 DB 11b: ≤-10 DB 11a: ≤-25 DB |
| PPM | ±20ppm |
| Max Users | 128 |

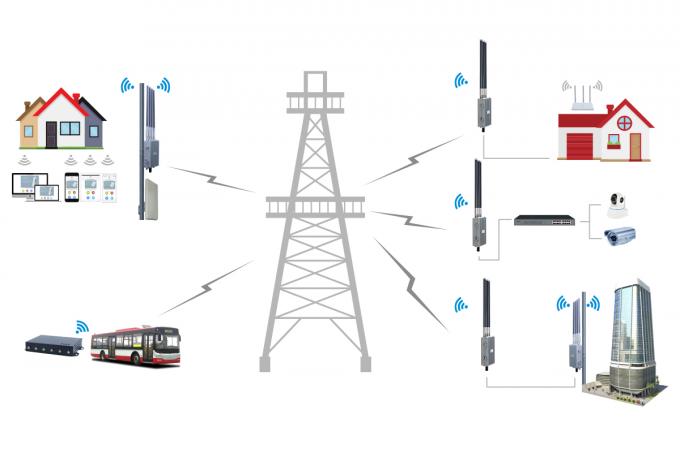

Wroking Diagram:
