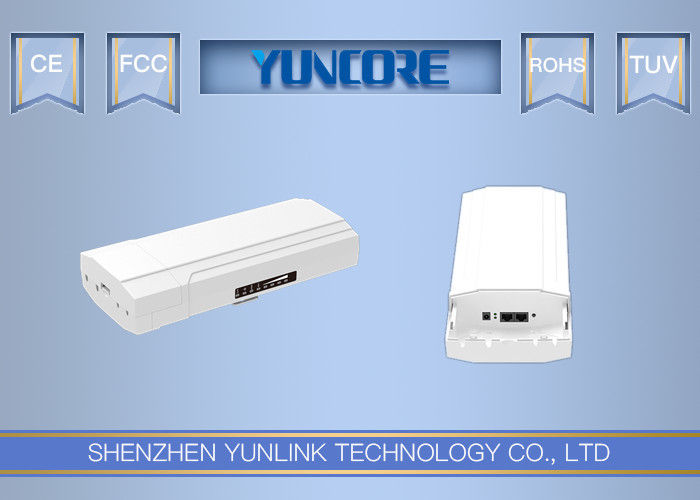

ABS High Power Long Range Outdoor Wifi AP 48V POE IP65 Waterproof Dustproof

ABS High Power Long Range Outdoor Wifi AP 48V POE IP65 Waterproof Dustproof

ABS High Power Long Range Outdoor Wifi AP 48V POE IP65 Waterproof Dustproof

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: AP1200

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: ABS Chipset: Qualcomm QCA9563
Band: 2.4G + 5.8G Flash: 16M
RAM: 128M Power: 500mW
High Light:

outdoor wireless ap

,

outdoor wifi access point

ABS IP65 Waterproof Dustproof High Power WiFi Range Outdoor Wireless AP 48V POE



Features:



ABS weather-proof case


AP1200 with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, rainy weather. Meantime, it adaptive to various environment, the working temperature can be at -40℃ to 55℃. Suit for any country.



High Power, 5dBi omni antenna, more WiFi Range


Designed in two line Power Amplifier on PCB board, the power can be 500mW high power, build in 5dBi omni WiFi antenna, outdoor WiFi range up to 500 meters.



Power over Ethernet


AP1200 has integrated active Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure. Pls note, the default is 48V IEEE 802.3at PoE, 24V Passive PoE is possible by change PCB board.



Access Controller System & Cloud Management System


Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....



Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this device more professional in WiFi Projects.



Spec:



Hardware:
Chipset Qualcomm QCA9563 + QCA9882 +QCA8334
Standard 802.11ac/b/g/n, MIMO technology
Memory 128MB DDR2 RAM
Flash 16MB
Interface 1 * 10/100/1000Mbps RJ45 WAN Port, WAN port support IEEE 802.3at standard PoE
1 * 10/100/1000Mbps RJ45 LAN Port
1 * Reset button, press 15 seconds to revert to default setting
Antenna Build in omni antenna, 5dBi, MIMO
Power consumption 48V PoE<30W
Size 315mm * 145 mm * 80 mm
RF Data





Frequency

2.4G: 802.11b/g/n; 5GHz: 802.11a/n/ac

2.4GHz: 2.312GHz to 2.4835GHz

5GHz: 5.020 - 6.1000 GHz

Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Data Rate 1200Mbps (2.4G 300Mbps, 5.8G 900Mbps)
Receive Sensitivity & RF Power
RF Power

2.4G: 11n @MCS7:23±2DB, @MCS0:25±2DB.

11g @54M:24±2DB, @6M:26±2DB.

11b @11M:26±2DB, @1M:28±2DB.

5.8G: 11a @54M:24±2DB, @6M:26±2DB.

11n @MCS7:22±2DB, @MCS0:24±2DB.

11ac @MCS9:21±2DB, @MCS0:23±2DB.

Receive Sensitivity

2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0.

11g: -72dbm@54Mbps, -88dbm@6Mbps.

11b: -85dbm@11Mbps, -94dbm@1Mbps.

5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps.

11n: -70dbm@MCS7, -90dbm@MCS0.

11ac:-60dbm@MCS9, -86dbm@MCS0.

EVM

11n: ≤-28 DB

11g: ≤-25 DB

11b: ≤-10 DB

11a: ≤-25 DB

PPM ±20ppm
Max Users 128
Firmware Features:
Operation mode Wireless AP, Gateway, WISP, WiFi Repeater
WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK, 802.1x encryption
SSID Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)
Firewall DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols IPv4
Others:
Package Contents

1200Mbps Dual Band wireless access point

Ethernet Cable

Quick Installation Guide

Setting Accessory

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: -40~55 ℃, Storage Temperature: -40~70 ℃
Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Management Firmware GUI , Remote Management, WLAN Controller, Cloud Management System



Working Diagram:



ABS High Power Long Range Outdoor Wifi AP 48V POE IP65 Waterproof Dustproof
