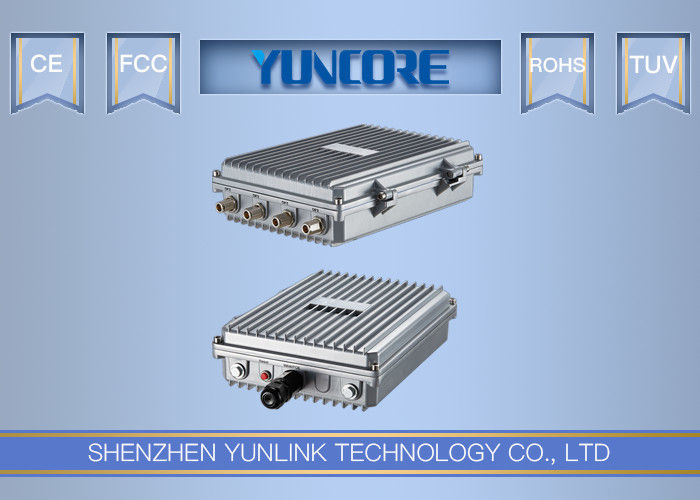

1200Mbps Outdoor Access Point Long Range 802.3 Active PoE With N - Femal Connectors

1200Mbps Outdoor Access Point Long Range 802.3 Active PoE With N - Femal Connectors

1200Mbps Outdoor Access Point Long Range 802.3 Active PoE With N - Femal Connectors

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: HW-AP80

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: Metal Chipset: QCA9563
Band: 2.4G + 5.8G Flash: 16M
RAM: 128M Power: 1000mW
High Light:

outdoor wireless ap

,

access point base station

1200Mbps 48V 802.3 Active PoE with N-Femal Connectors Outdoor Wireless Access Point



HW-AP80 is an Qualcomm Solution 11ac high power industrial use Outdoor CPE with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN port, fast Ethernet data rate make more than 100 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.



Features:



1200Mbps High Speed and High NAT Conversion Rate


HW-AP80 compliant with 802.11ac technology to provide up to 1200Mbps data rate, 4 times faster wireless speed compared with 802.11b/g/ n products. Then the NAT conversion rate is >93% s to achieve faster download and upload speed in a shorter time.



Multi operation mode for multi application


HW-AP80 support Wireless AP, Gateway, WISP, Wireless Bridge operation mode, effective solution for PTP, PTMP application and outdoor long range WiFi coverage or data transmission.



Access Controller & Cloud Server for Central Management and Captive Portal


Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore.... Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this device more professional in WiFi Projects.



Dual band WiFi Channel Analyzer


Implanted wifi channel analyzer tool into Web interface, administrator can use it to choose the channel with small amount AP to avoid channel interference select.



High RF Power design but Manual adjustable


Designed in two line Power Amplifier on PCB board, HW-AP80’s RF power can be 1000mW high power, can work with omni/panel antenna for different environment, And this RF power is manual adjustable to reduce WiFi Interference and improve wireless stability.



Spec:



Hardware:
Chipset Atheros QCA9563 + QCA9882 +QCA8334
Standard 802.11ac/b/g/n, MIMO technology
Memory 128MB DDR2 RAM
Flash 16MB
Interface 1 * 10/100 /1000Mbps RJ45 WAN Port
1 * Reset button, press 15 seconds to revert to default setting
Antenna 4PCS SMA connector
Power consumption 48V PoE<30W
Weight 4KGS
RF Data





Frequency

2.4G: 802.11b/g/n; 5GHz: 802.11a/n/ac

2.4GHz: 2.312GHz to 2.4835GHz

5GHz: 5.020 - 6.1000 GHz

Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Throughput 1200 Mbps
RF Power

2.4G: 11n @MCS7:26±2DB, @MCS0:28±2DB.

11g @54M:27±2DB, @6M:29±2DB.

11b @11M:28±2DB, @1M:30±2DB.

5.8G: 11a @54M 23.5±2DB, @6M:26.5±2DB.

11n @HT20:MCS7 22.5±2DB, @MCS0:25.5±2DB.

11ac@HT80:MCS9 20.5±2DB, @MCS0:23.5±2DB.

Receive Sensitivity

2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0.

11g: -72dbm@54Mbps, -88dbm@6Mbps.

11b: -85dbm@11Mbps, -94dbm@1Mbps.

5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps.

11n@HT20: -70dbm@MCS7, -90dbm@MCS0.

11ac@HT80:-60dbm@MCS9, -86dbm@MCS0.

EVM

802.11n: ≤-28 DB

802.11g: ≤-25 DB

802.11b: ≤-10 DB

802.11a: ≤-25 DB

PPM ±20ppm
Max Users 128+
Firmware Features:
Operation mode Wireless AP, Gateway, WISP, Wi-Fi Repeater
WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SSID Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)
Firewall DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols IPv4
Others:
Package Contents

1200Mbps Dual Band wireless access point

Ethernet Cable

Quick Installation Guide

Setting Accessory

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: -40~50 ℃, Storage Temperature: -40~70 ℃
Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Management Firmware GUI , Remote Management, WLAN Controller, Cloud Management System



Working Diagram:

1200Mbps Outdoor Access Point Long Range 802.3 Active PoE With N - Femal Connectors
