Could Management 11AC Wireless Router , Wireless Router 11AC 1200Mbps

Product Details:

Place of Origin:	China
Brand Name:	Yuncore
Certification:	CE,FCC,ROHS
Model Number:	FR3800

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	Giftbox + Carton box
Delivery Time:	4 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS/ WEEK

Contact Now

Detailed Product Description

Material:	Metal	Chipset:	Realtek RTL8197FH
Flash:	16M	RAM:	128M
Power:	300mW	Port:	110/100/1000 WAN, 410/100/1000 LAN
High Light:	11ac wifi router , ac1200 wireless router

Could Management Authentication Advertisement 1200Mbps Dual Band Wireless Router

FR3800 is an high power home use wireless router with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN/LAN port, 500mW high power with 5dBi omni antenna, high wall-pass-through capacity supply full Wi-Fi range for home, the fast Ethernet data rate make more than 80 end users can access into FR3800 to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

It is easy to setup this smart wireless router by PC or mobile phone after login by IP address/domain/QR code scanning; It support gateway, wireless AP, Wi-Fi Repeater multiple operation mode, Smart QoS and variety advanced security, beamforming, auto channel select and Wi-Fi channel analyzer, make it work in different networking for different application, guaranty it run stably for a long time.

Hardware:

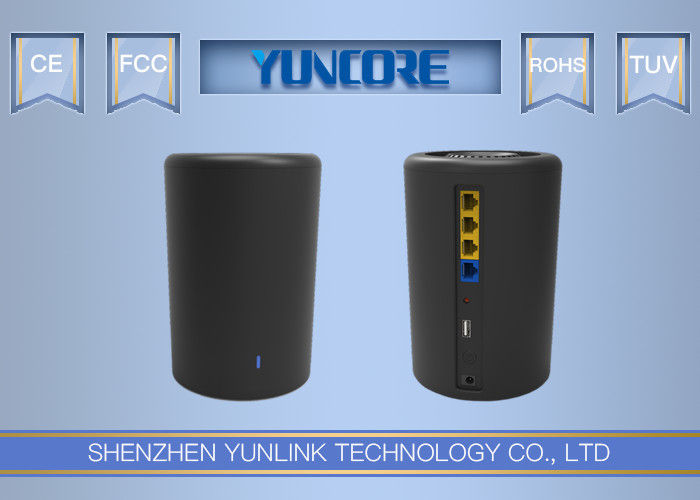

1. Desktop round Design with Black Color

With black color, the round type appearance looks like a component of home theater system, then supplied Wi-Fi or LAN Ethernet for IPTV.

2.11ac dual band, 1200Mbps data rate, Gigabit WAN/LAN Ports, Luxurious choice

Comply with 802.11ac standard, dual 2.4G and 5G band, 1200Mbps data rate with Gigabit WAN and LAN ports, the less Wi-Fi interference, high data rate ensure FR3800 to provide more stable and faster network access.

3.High Power with High Gain 5dBi antenna, more Wi-Fi coverage

With 4 group powers amplifier design, FR3800’s RF power can be 500mW, the high wall-pass-through capacity with 5dBi high gain antenna, provide full Wi-Fi coverage for the whole house.

Spec:

Model	FR3800
CPU	Realtek RTL8197FH+RTL8812BRH+RTL8367RB
Flash	16MB
RAM	128MB
Frequency	2.4GHz: 2.4GHz-2.483GHz 5.8GHz: 5150MHz~5825MHz
Standard	802.11ac/b/g/n, 2T2R MIMO
Data Rate	1200Mbps
Modulation	OFDM = BPSK,QPSK,16-QAM,64-QAM; DSSS = DBPSK,DQPSK,CCK
RF Power	2.4G: HT20: @MCS7:22.5±2DB, @MCS0:25.5±2DB. HT40: @MCS7:22±2DB, @MCS0:25±2DB. 11g: @54M:23.5±2DB, @6M:26±2DB. 11b: @11M:26.5±2DB, @1M:28.5±2DB. 5.8G: 11a: @54M 22±2DB, @6M 25±2DB. HT20: @MCS7 21±2DB, @MCS0 24±2DB. HT40: @MCS7 21±2DB, @MCS0 24±2DB. HT80: @MCS9 19±2DB, @MCS0 22±2DB.
Receive Sensitivity	2.4G: HT20: -72dbm@MCS7, -92dbm@MCS0. HT40: -70dbm@MCS7, -90dbm@MCS0. 11g: -74dbm@54Mbps, -92dbm@6Mbps. 11b: -88dbm@11Mbps, -95dbm@1Mbps. 5.8G: 11a: -74dbm@54Mbps; -92dbm@ 6Mbps. HT20: -72dbm@MCS7, -90dbm@MCS0. HT40: -70dbm@MCS7, -88dbm@MCS0. HT80: - 55dbm@MCS9.
EVM	802.11ac: ≤-32 DB 802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB
Frequency Deviation	±20ppm
Max Users	128
Size	118mm * 118mm *180mm
Interface	3*10/100/1000Mbps LAN ports
	1*10/100/1000Mbps WAN port
	1*USB2.0 Port
	1*DC 12V 1.5A
	1*Reset button: Press in 10 seconds: reset to default settings;
	1*Power adapter (Short press: Power on,Long press: Power off)
Operation Mode	Gateway, Wi-Fi Repeater, Wireless AP
LED Indicator	WAN, LAN, SYS (system), NET(Ethernet)
Antenna	Build in 5dBi high-gain omni antennas
Power consume	＜20W
Environment	Working Temperature: -20°C to 50°C
	Storage Temperature: -40°C to 70°C
	Humidity:5％～95％(Non-condensing)
