Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | FIT-MB335 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | ABS | Chipset: | QCA9531 |
---|---|---|---|
Band: | 2.4G 300Mbps | Interface: | Touchable |
Color: | Black, White, Gold | Working Mode: | AP |
High Light: | wall mount access point,wall plate wireless access point |

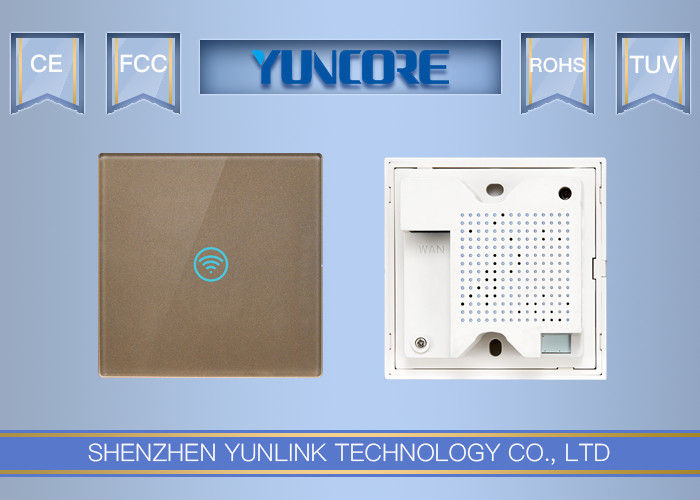

300Mbps 2T2R MIMO Antenna Bulid In with Touchable Faceplate In Wall AP
PW335 is a high performance, 300Mbps in-wall wireless access point with touchable power switch, support 48V PoE, install it to 86mm in-wall jack, plug and play, easy to install and provide a more stable and faster WiFi coverage in hotels, dormitory and office; It work AC Controller, config wireless AP's SSID, password, RF power, channel, VLAN on a single PC, simple to maintenance in the future also; Then it work with cloud server for advertisement and captive portal authentication for more business value.
Features
2.4GHz, 300Mbps Data Rate
Comply with IEEE 802.11b/g/n technology, 2T2R, 300Mbps data rate, achieve faster download/upload speed, make online surfing arbitrary.
Touchable Power Switch, energy conservation
Simple touchable switch to control the power, Easy operation and energy conservation
In-wall Design and PoE Support
86mm EU in-wall jack design, white/gold color, seamless embed into existing decoration; Then WAN port support 48V Passive PoE, zero configure by AC controller, plug and play, make installation and maintenance so easy.
Multiple Operation Mode for Multiple Application
Support Wireless AP, Gateway, WiFi Repeater to meet with different installation requirement in hotel, school, dormitory,hospital...
Centralized Management and Captive Portal
Work with WLAN Controller, centralized configuration and management, easy to achieve installation and maintenance Work with Cloud Server to do remote monitor, advertisement and Captive Portal authentication for more business value.
Spec:
Wireless | |
Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Data Rate |
11n: 300Mbps 11g: 54Mbps 11b: 11Mbps |
Frequency Range | 2.4-2.4835GHz |
Wireless Transmit Power |
11n @MCS7:14±2DB, @MCS0:16±2DB. 11g @54M:15±2DB, @6M:17±2DB. 11b @11M:18±2DB, @1M:20±2DB. |
Modulation Type | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
Receive Sensitivity |
11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. |
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
PPM | ±20ppm |
MAX Users | 64 |
Operation Mode | AP |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES) |
System Requirements | Windows 7/Vista/XP/2000,Mac OS®, Linux or Android OS |
Hardware | |
Chipset | Qualcomm QCA9531 |
Flash | 16M |
SDRAM | 64M |
Interfaces | 1 x 10/100Mbps WAN Port |
Button | Reset Button |
Touchable Power Button | |
Antenna | MIMO 2dBi Build-in omni-directional Antenna |
Power Supply | 802.3af PoE |
Dimensions( W x D x H ) | 86mm*86mm*27mm |
Others | |
Operating Temperature | -20°C~55°C |
Storage Temperature | -40°C~70°C |
Relative Humidity | 10% ~ 90%, Non-condensing |
Storage Humidity | 5%~95%, Non-condensing |
Certifications | RoHS |
Package Contents |
1 x in wall AP 1 x Quick Installation Guide 1 x setting accessory |

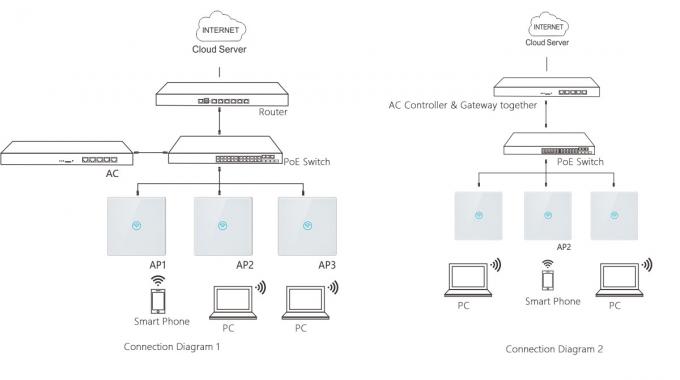

Working Diagram:

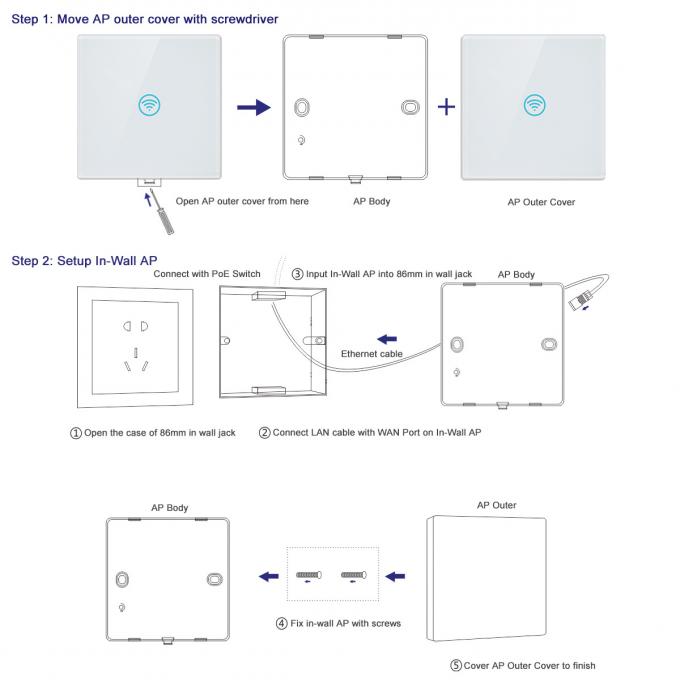

Installation:
