Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC,ROHS |
Model Number: | PW780 |
Minimum Order Quantity: | 100 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 1000 PCS/ WEEK |
Material: | ABS | Band: | 2.4G + 5.8G |
---|---|---|---|
Flash: | 16M | RAM: | 128M |
Working Mode: | AP | Interface: | Touchable |
High Light: | in wall wifi access point,wall plate wireless access point |

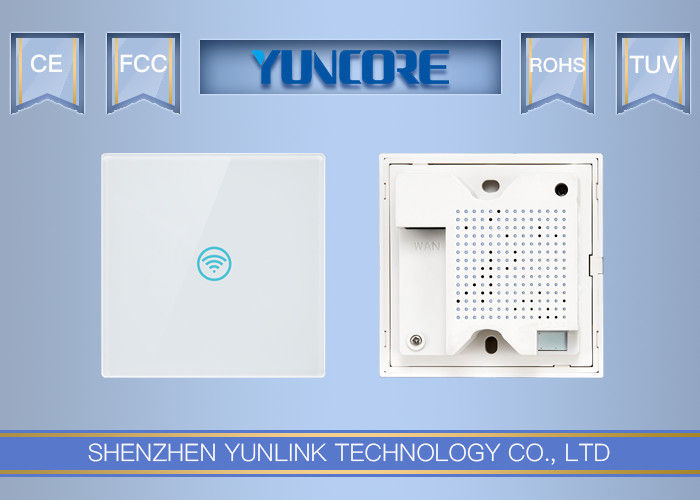

11ac Dual Band Touchable WiFi Switch Multi SSID FIT In Wall Access Point for Home WiFi
PW780 is a high performance, high data rate 11ac wall mount wireless access point. Long range 2.4GHz and wider 5GHz radio, Wireless analyzer and auto channel choose, PW750 can provide a more stable and faster WiFi coverage in hotels, dormitory and office.
Features
2.4GHz, 5 GHz Concurrent Band
Comply with IEEE 802.11ac technology, this wireless AP work in 2.4GHz and 5GHz radio concurrently with 750Mbps data rate, achieve faster download/upload speed, make online surfing arbitrary.
Wireless Channel Analyzer and Auto channel
To improve the performance in high density area, it integrated Wireless Channel Analyzer and auto channel to make wireless AP in best channel, to avoid WiFi interference, then provide a stable and faster Wireless network
In-wall Design and PoE Support
86mm EU in-wall jack design, seamless embed into existing decoration; Then WAN port support IEEE 802.3af PoE, zero configure by AC controller, plug and play, make installation and maintenance so easy.
Multiple Operation Mode for Multiple Application
Support Wireless AP, Gateway, WiFi Repeater to meet with different installation requirement in hotel, school, dormitory,hospital...
Centralized Management and Captive Portal
Work with WLAN Controller, centralized configuration and management, easy to achieve installation and maintenance Work with Cloud Server to do remote monitor, advertisement and Captive Portal authentication for more business value.
Spec:
HARDWARE FEATURES | |
Interface |
1 * 10/100Mbps WAN Port 1 * LED on/off button |
Button | Reset Button, press 15 seconds to revert to default data. |
Chipset | Qualcomm QCA9531+QCA9887 |
Flash | 16M Flash |
SDRAM | 128M DDR |
External Power Supply | 48V PoE, IEEE 802.3af standard |
Dimensions (W X D X H) | 86*86*35mm |
Antenna Type |
1*5.8GHz 2dBi internal antenna 2 * 2.4GHz 2dBi internal antennas |
WIRELESS FEATURES | |||
Wireless Standards | IEEE 802.11ac/n/a 5GHz; IEEE 802.11n/g/b 2.4GHz | ||
Frequency | 5GHz and 2.4GHz | ||
Signal Rate | 5GHz:Up to 433Mbps; 2.4GHz: Up to 300Mbps | ||
EIRP | <20dBm(EIRP) | ||
Reception Sensitivity |
2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0. 11g: -72dbm@54Mbps, -88dbm@6Mbps. 11b: -85dbm@11Mbps, -94dbm@1Mbps. 5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps. 11n: -70dbm@MCS7, -90dbm@MCS0. 11ac:-60dbm@MCS9, -86dbm@MCS0. |
||
RF Power |
2.4G: 11n @MCS7:15±2DB, @MCS0:17±2DB. 11g @54M:16±2DB, @6M:18±2DB. 11b @11M:18±2DB, @1M:20±2DB. 5.8G: 11a @54M:15±2DB, @6M:17±2DB. 11n @MCS7:14±2DB, @MCS0:16±2DB. 11ac @MCS9:13±2DB, @MCS0:15±2DB. |
||
Wireless | Auto-Channel selection | ||
Distance Control (802.1x Ack timeout) | |||
Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G) | |||
BSSID | |||
EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB 802.11a: ≤-25 DB |
||
PPM | ±20ppm | ||
Max Access Users | 128 | ||
Operation Mode | AP | ||
Wireless Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption | ||
LED Status | Sys(System), WAN, Wi-Fi | ||
Management | |||
System Settings | Web-based configuration (HTTP/Telnet), Access Control System (SNMP) | ||
Firmware Upgrade | Upgrade firmware via web browser or TFTP | ||
Administration | Admin Password can be configured | ||
System monitoring | Watch dog, Status in hand , useful statistic and Event log | ||
Logs | Supports local logs, logs host, logs file export | ||
Reset | Reset or factory defaults | ||
Backup | Restore settings & configuration of the device to local file, Scheduled reboot |
Working Diagram:
