| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | HW-AP28 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | Metal | Chipset: | Atheros AR9344 |
|---|---|---|---|
| Band: | 5150MHz-5825MHz | Flash: | 8M |
| RAM: | 64M | Power: | 500mW |
| High Light: | outdoor wireless ap,access point base station |
||

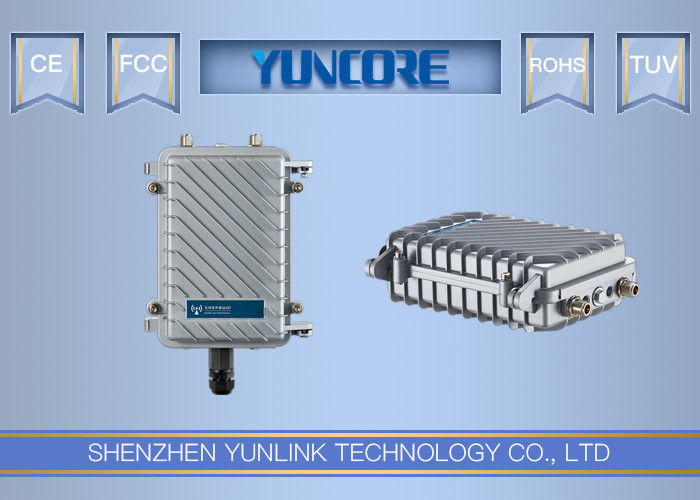

5.8G 300Mbps Metal Case with N Female Connectors Outdoor Base Station PoE Supply
HW-AP28 is a high performance outdoor CPE/AP with Atheros Chipset, With detachable outdoor omni antenna and adjustable high RF power, make this outdoor access point with WiFi coverage up to 400 meters. It supports Wireless AP, Gateway, WiFi Repeater, WISP and WDS operation mode, effective solution for outdoor long range WiFi coverage application or wireless security HW-AP2OQ with metal outdoor shell to avoid the damage from outdoor rain, dust, sunshine and thunderstorm weather, adaptive to various environment also.
Features:
MIMO Technology, 300Mbps Data Rate
Comply with IEEE 802.11a/n standard, 5.8GHz frequency, 2T2R protocol with 300Mbps data rate
Various Operation Modes for different network environment
It support wireless AP, Gateway, WiFi Repeater, Bridge, WISP operation mode, then with SMA connector for detachable omni/panel antenna, user can flexibly choose a suitable wireless mode to do WiFi Coverage or PTP, PTMP, MPTMP, Wireless Security applications.
Excellent Outdoor Weatherproof and Lighting Protection
With metal waterproof, dustproof and sunscreen shell, temperature adaptive and board protective to work in harsh outdoor environment, meanwhile, the auxiliary cooling function make AP28 work normal at different environment
Spec:
| Standard | IEEE802.3af, IEEE 802.11n, IEEE 802.11a |
| Frequency | 5.180 - 5.825 GHz |
| Channel | CH36 ~CH165 |
| Modulation | 802.11n/802.11a: OFDM (64-QAM, 16-QAM, QPSK, BPSK |
| Data Rate |
11n: up to 300Mbps(dynamic) 11a: up to 54Mbps(dynamic) |
| Protocol | CSMA/CA,CSMA/CD,TCP/IP,ICMP,NAT,PPPoE, DHCP , Wired static , Wifi Client , UDP, DDNS, |
| Operation Mode | Bridge, AP, Gateway, WISP, WDS operation mode. |
| Security |
64/128bit WEP WPA(AES,TKIP with IEEE 802.1x) WPA2(AES,TKIPwith IEEE 802.1x) WPS |
| RF Output Power |
802.11n: 25±2dBm, OFDM module 802.11a: 27±2dBm, OFDM |
| Receive Sensitivity |
11n : -72±2dBm@10% PER 11a : -75±2dBm@10% PER |
| Antenna | SMA Connector, |
| Size(mm) | L: 153.2mm, W: 79.5mm, H: 234.5 mm |
| Weight | 2KGS |
| Working Temperature | -20°C ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| Humidity | 10% ~ 90% (Non-condensing) |
| Interface |
1*RJ-45 Port 1*Reset button |
| Power | Output: POE 24V, 1A; Input: 110V/220V |
| LED Light | Power, WiFi |
Working Diagram:
