| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | HW-AP20Q |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | Metal | Chipset: | Qualcomm QCA9531 |
|---|---|---|---|
| Band: | 2.4GHz-2.483GHz | Flash: | 16M |
| RAM: | 128M | Power: | 500mW |
| High Light: | outdoor wireless ap,access point base station |
||

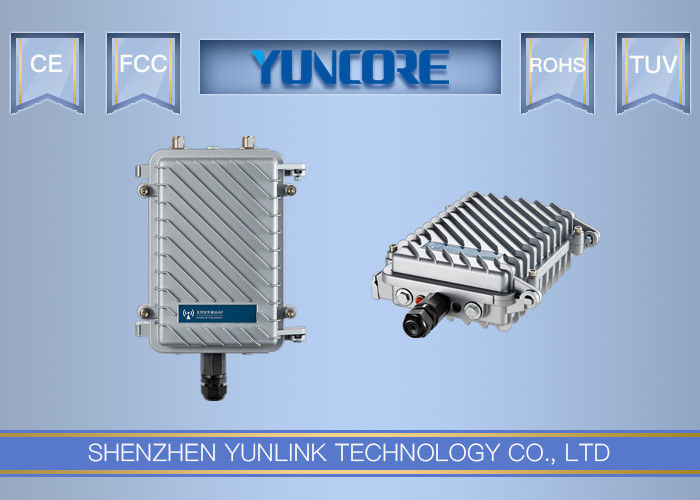

2.4G High Power Metal Case Waterproof Dustproof Outdoor Wireless Base Station
AP20Q is a high performance outdoor CPE/AP with Qualcomm Chipset, With detachable outdoor omni antenna and adjustable high RF power, make this outdoor access point with WiFi coverage up to 400 meters. It supports Wireless AP, Gateway, WiFi Repeater, WISP and WDS operation mode, effective solution for outdoor long range WiFi coverage application. HW-AP2OQ with metal outdoor shell to avoid the damage from outdoor rain, dust, sunshine and thunderstorm weather, adaptive to various environment also.
Features:
MIMO Technology, 300Mbps Data Rate
Comply with IEEE 802.11b/g/n standard,2.4GHz frequency, 2T2R protocol with 300Mbps data rate
Various Operation Modes for different network environment
It support wireless AP, Gateway, WiFi Repeater, Bridge, WISP, WDS operation mode, then with SMA connector for detachable omni/panel antenna, user can flexibly choose a suitable wireless mode to do WiFi Coverage or PTP, PTMP, MPTMP applications.
Excellent Outdoor Weatherproof and Lighting Protection
with metal waterproof, dustproof and sunscreen shell, temperature adaptive and board protective to work in harsh outdoor environment, meanwhile, the auxiliary cooling function make AP20Q work normal at different environment
Spec:
| Specification: | |
| Hardware: | |
| Chipset | Qualcomm QCA9531 |
| Wireless | 802.11N, 2T2R 300M MIMO Technology |
| Memory | 64MB DDR2 RAM (128MB available by extra cost) |
| Flash | 16MB |
| Interface | 1* 10/100 Mbps RJ45 Port, support 12~24V PoE |
| 1 * Reset Button | |
| Antenna | N Connector, can connect with panel antenna/omni antenna |
| LED Light | Power, WiFi |
| Size | L: 153.2mm, W: 79.5mm, H: 234.5 mm |
| Power | POE 24V/1A (48V PoE is optional);110V/220V |
| RF Date: | |
| Frequency | 802.11b/g/n: |
| 2.312GHz to 2.4835GHz | |
| Korea, Japan, ETSI, FCC, Debug | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Data Rate | 300 Mbps |
| Receive Sensitivity |
802.11n: -70dbm@MCS7, -88dbm@MCS0. 802.11g: -72dbm@54Mbps, -88dbm@6Mbps. 802.11b: -85dbm@11Mbps, -94dbm@1Mbps. |
| RF Output Power |
802.11n: @MCS7:25±2DB, @MCS0:27±2DB. 802.11g: @54M:26±2DB, @6M:28±2DB. 802.11b: @11M:27±2DB, @1M:29±2DB |
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
| PPM | ±20ppm |
Working Diagram:
