| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | CPE960Q |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000PCS/ WEEK |
| Material: | ABS | Chipset: | QCA9531 |
|---|---|---|---|
| Flash: | 16M | RAM: | 64M |
| WiFi Standard: | IEEE802.11b/g/n | PoE: | 24V Passive |
| Band: | 2.312GHz -2.4835GHz | WDS: | Support |
| High Light: | 2.4 ghz wireless cpe,wireless wifi bridge |
||

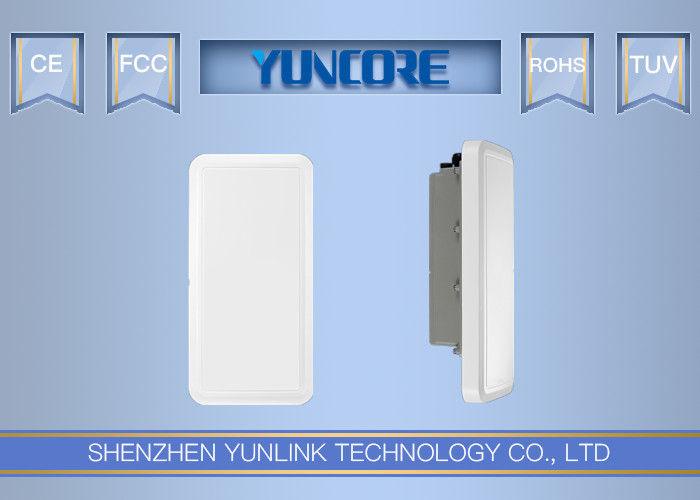

300mW 15dBi Directional Antenna Long Distance Outdoor Wireless Repeater
CPE960Q is a long range 2.4GHz Outdoor Wi-Fi Bridge for outdoor wireless networking applications. Comply with IEEE 802.11b/g/n standard, 300Mbps high speed, 2T2R MIMO 18dBi high gain antenna, 1000mW high power, the outdoor Wi-Fi range is more than 10KMs.
It support wireless AP, Gateway, Wi-Fi Repeater, Bridge, WISP, WDS operation mode, user can flexibly choose a suitable wireless mode to build or extend the wireless networking based on exist networking structure.
CPE960Q with ABS IP65 waterproof, dustproof and sunscreen shell, temperature adaptive and board ESD protective to work in harsh outdoor environment.
And it support special frequency from 2.312GHz to 2.4835GHz, total 27 channels, together with Wi-Fi channel analysis tool, it make this outdoor Wi-Fi Bridge choose the best channel to avoid the Wi-Fi interference, to guarantee the stable wireless connection.
Meantime, it support Power over Ethernet, support passive PoE, easy in setup even no power socket nearby.
Spec:
|
Specification: |
|
| Hardware: | |
| Chipset | Qualcomm QCA9531 |
| Wireless | 802.11N, 2T2R 300M MIMO Technology |
| Memory | 64MB DDR2 RAM (128MB available by extra cost) |
| Flash | 16MB |
| Interface | 1 *10/100Mbps RJ45 Port, support 12~24V PoE |
| Antenna | 18dBi Panel Antenna |
| Size | L: 257mm, W: 87mm, H: 38 mm |
| Power | 12V(POE 24V)/1A;110V/220V |
| RF Data | |
| RF Data | 802.11b/g/n |
| 2.312GHz to 2.4835GHz | |
| Korea, Japan, ETSI, FCC, Debug | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Data Rate | 300Mbps |
| Receive Sensitivity |
802.11n: @MCS7:25±2DB, @MCS0:27±2DB. 802.11g: @54M:26±2DB, @6M:28±2DB. 802.11b: @11M:27±2DB, @1M:29±2DB |
| RF Output Power |
802.11n: -70dbm@MCS7, -88dbm@MCS0. 802.11g: -72dbm@54Mbps, -88dbm@6Mbps. 802.11b: -85dbm@11Mbps, -94dbm@1Mbps. |
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
| PPM | ±20ppm |
| Max users | 64 |
Working Diagram:
