| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FEE,ROHS |
| Model Number: | X930-P48 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000PCS/ WEEK |
| Chipset: | QCA531 | Flash: | 16M |
|---|---|---|---|
| RAM: | 64M | Standard: | IEEE802.11N/G/B |
| Frequency: | 2.4GHz | Interface: | 10/100M WAN*1, 10/100M LAN*1 |
| High Light: | wireless n access point,802.11 n ap |
||

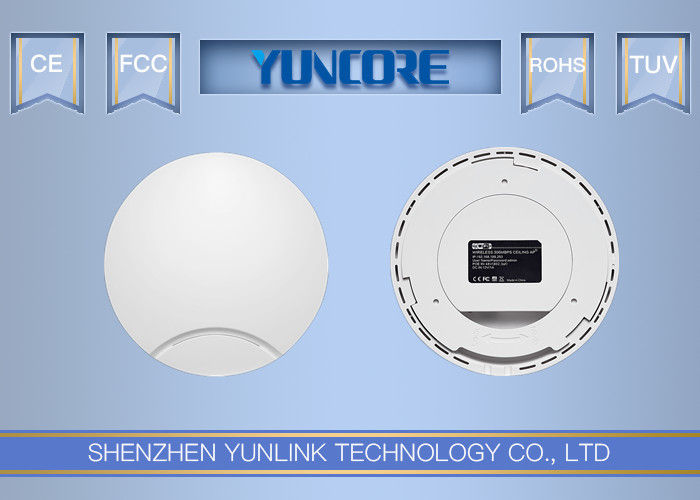

Qualcomm Solution High Performance with Stable WiFi Signal 802.11n Ceiling Access Point
X930-P48 is an indoor ceiling mount wireless access point for hotels, cafe, hosptical,school and home. Comply IEEE 802.11n 2T2R MIMO Technology, 300Mbps high speed, integrated IEEE 802.3af PoE, it can be installed in areas where power outlets are not readily available, easy installation and lower cost; Housed in a ceiling mountable case, the X930-P48 can be installed on a wall or ceiling to blends in nicely with most interior decorations in the house, to extend optimum wireless signal. Work with WLAN Controller, centralized configuration and management, easy to achieve WiFi Coverage and maintenance, access into Cloud Server to do remote monitor and Captive Portal authentication for more business value.
Features
300Mbps High Data Rate
Equipped enterprise high performance Qualcomm Chipset, Comply IEEE 802.11n 2T2R MIMO Technology, 300Mbps high speed, allow all connected devices to achieve faster upload/download Ethernet.
Power over Ethernet(PoE)
Integrated IEEE 802.3af Power over Ethernet (PoE), work with standard PoE switch, pluy and play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Multiple Operation Mode for Multiple Application
Support Wireless AP, Gateway, WiFi Repeater to meet with different installation requirements, such as Gateway for home use, WiFi Repeater to extend the exist WiFi signal to more range
Multi SSID, Tag VLAN, AC Controller Centralized Management, Cloud Server Captive Portal Authentication
Support Multi SSID up to 4, each SSID support tag VLAN for User isolation. Work with WLAN Controller, centralized configuration in IP address, SSID,Password, Tag VLAN, RF power adjustable, then remote management, easy to achieve WiFi Coverage and maintenance. Besides that, access into cloud server to do advertisement and Captive Portal authentication guest, to create more business value.
Spec:
|
Specification |
|
| Hardware | |
| MCU | Qualcomm QCA9531 |
| RF | 2T2R, 300Mbps MIMO tech , comply with IEEE 802.11b/g/n standard |
| Memory | 64MB DDR RAM |
| Flash | 16MB |
| Interface | 2 x RJ-45 for 10/100Mbps WAN/LAN Port (WAN port support IEEE 802.3af POE) |
| 1 x Reset button(Reset & Factory Defaults) | |
| 1 x Power DC Jack | |
|
Power
|
DC: 12V/1A; POE: IEEE 802.3af 48V PoE, 110V/220V |
| Antenna | Build in 2PCS Omni 5dbi antenna |
| Size | 18.8*3.1CM |
| RF | |
| Frequency | 802.11b/g/n, 533MHz |
| 2.4~2.4835GHz | |
| U.S.,Europe and Japan product covering 2.400 to 2.4835 GHz,programmable for different country regulations | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Throughput | 300Mbps |
| Sensitivity |
802.11n: -70dbm@MCS7, -88dbm@MCS0. 802.11g: -72dbm@54Mbps, -88dbm@6Mbps. 802.11b: -85dbm@11Mbps, -94dbm@1Mbps. |
| Output Power |
802.11n: @MCS7:22±2DB, @MCS0:24±2DB. 802.11g: @54M:23±2DB, @6M:25±2DB. 802.11b: @11M:26±2DB, @1M:28±2DB |
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
| PPM | ±20ppm |
| Max Uses | 64+ |

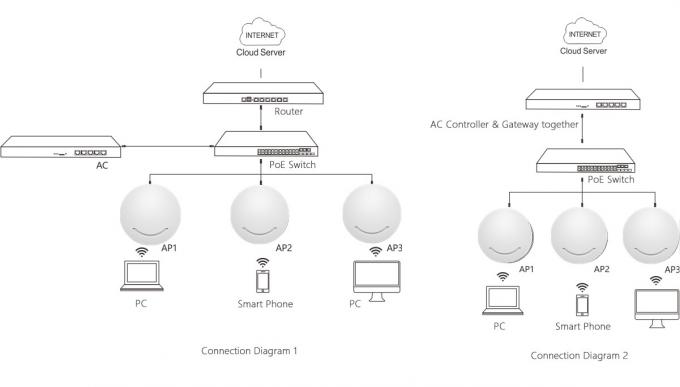

Working Diagram:

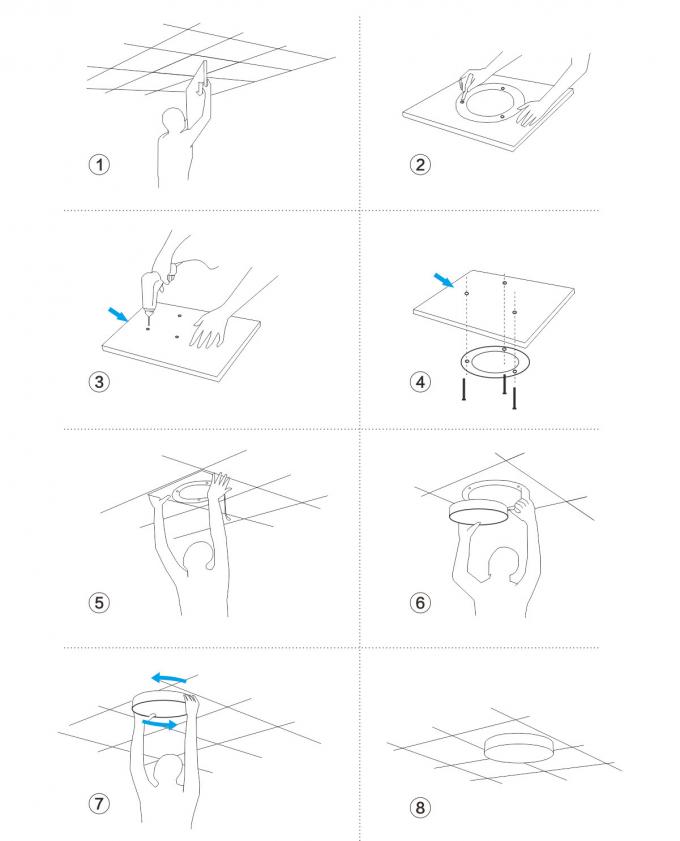

Installation:
