Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC |
Model Number: | AC1600 |
Minimum Order Quantity: | 10 |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 500PCS/ WEEK |
CPU: | MT7621 | RAM: | 256MB |
---|---|---|---|
Material: | Metal | Flash: | 16MB |
Port: | 5*Gigabit Port | Power: | AC100`240V |
High Light: | wifi lan controller,wireless access point controller |

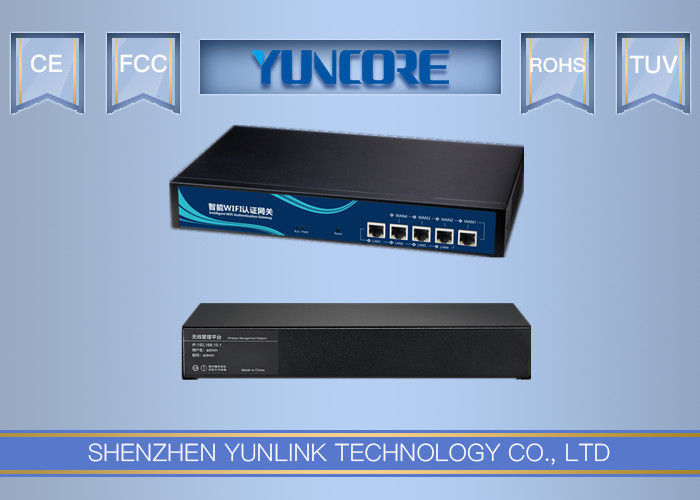

Easily AP Management Multi Function Wireless AP / AC Lan Controller Zero Config
Features:
Multi WAN ports for different ISP access and load balance function
AC1600 with multi Gigabit WAN ports up to 4 to allow different ISP access, and the load balance function to avoid bandwidth overload, Ethernet backup function to recover the dropped networking line to ensure the whole networking smoothly;
Auto detect and manage wireless AP up to 100PCS
1. Automatically detect and allocated IP address for wireless AP: AC1600 can detect the working AP and allocate the IP address for them, then configure and manage the AP centralized, even Zero configuration available to make wireless AP plug and play.
2. Centralized Manage and Control: AC1600 can configure AP's SSID, Password, Channel, QTY of access end users, then reboot, reset, firmware upgrade; Manual adjust AP's coverage threshold and transmission power, to reduce the mutual interference between APs and improve wireless network quality.
3. TAG VLAN: AC1600 can manage the AP based on VLAN Trunk. Deploy it as bypass controller in the networking, can trunk Wireless SSID with VLAN switch's VLAN to do communicate among different VLAN.
4. Real Time Monitor and Analyze: AC1600 will monitor and analyze wireless AP all the time, then show AP’s working status on Web manage page, make maintainer easy to maintain the whole networking.
WEB management interface, and support remote management.
AC1600 support WEB management interface and WEB remote management, we also can configure and manage AC1600 even in another city at any time, Greatly facilitates the adminstrator to maintain a stable network then monitor the AP's working status, greatly saves human, transportation costs
Full Gigabit ports, work as enterprise router in a network
Supports PPPoE, Static IP, Dynamic IP and PPTP, with 5*10/100/1000Mbps RJ45 Port, AC1600 can connect with ADSL/Fiber networking then work as gigabit router in residential or some business area.
Multiple security modes to protect network safety
AC1600 support Tag VLAN binding based on wireless network (SSID), make different wireless network (SSID) to binding different VLAN ID, realize the communication isolation in different wireless networks,to protect networking safety. In addition, AC1600 support multi firewall functions like IP filter,MAC filter, URL filter, port forwarding, DMZ, to allow compliant users to access the wireless network, and ensure that special network application such as FTP, H.323, IPSec/ PPTP VPN, to further protect network security.
Smart Quality of Service(QoS) function
Based on the IEEE 802.11e standard, it provides basic Quality of Service(QoS) features to end users according to IP/MAC address; Besides that, it can control the flow after set priority for instant messaging service, download, video or office
Low power consumption, energy saving and environment protection
AC1600’s running power consumption is lower than 5W, low heat, energy saving and environment protection, can prolong it operation life
Spec:
Hardware Data | |
Model | AC1600 |
QTY of manageable AP | 100PCS max |
CPU | RTL8198C |
FLAH | 128M |
DDR3 | 512M |
Interface |
1*10/100/1000M Gigabit WAN Port, 4*10/100/1000M Gigabit LAN Ports in default; Multi WAN up to 4 if required 1 Reset Button |
Dimension | 294mm X 180mm X 44mm |
Power | 100-240V~ 50/60Hz |
power consumption | < 10W |
Weight | <1.5KGS |
Working Temperature | -10℃~ 50℃ |
Working Humanity | 10% ~ 90%RH (No condensation) |
Storage Temperature | -40℃ ~ 70℃ |
Storage Humanity | 5% ~ 90%RH (No condensation) |
Working Diagram:

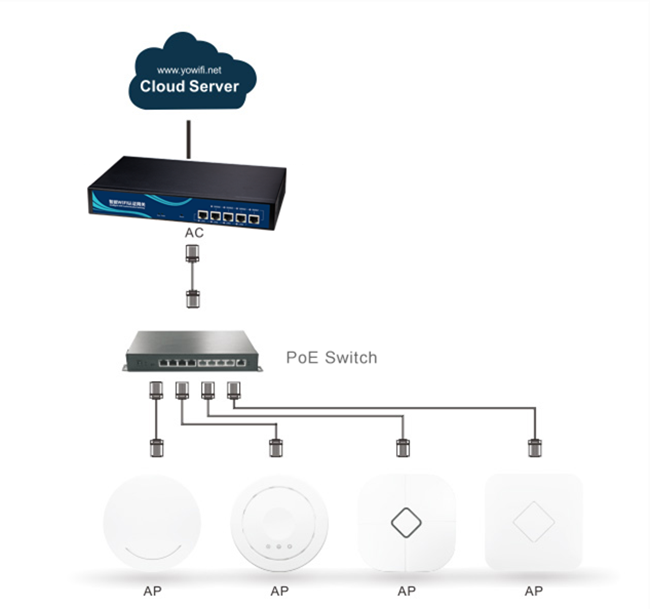

1. Working as AC controller

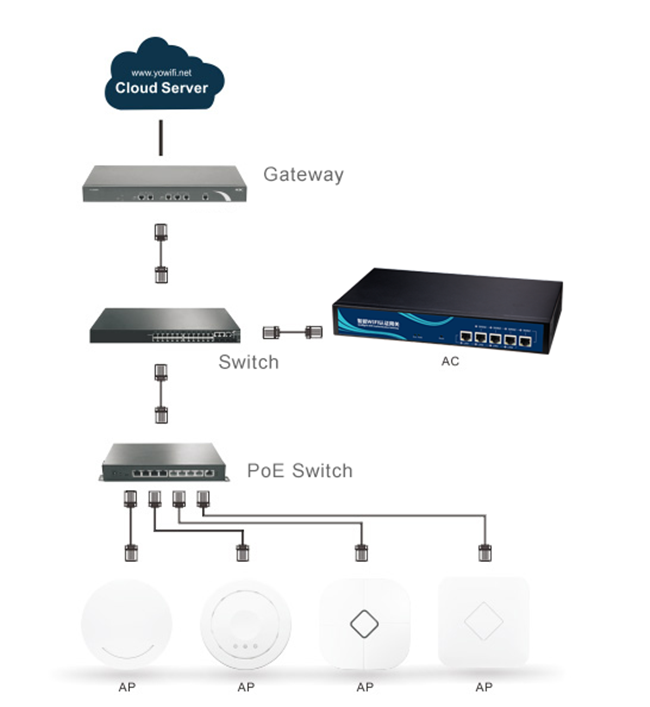

2. Working as Gateway and AC controller
