Place of Origin: | China |
Brand Name: | Yuncore |
Certification: | CE,FCC |
Model Number: | AC1800 |
Minimum Order Quantity: | 10 |
---|---|
Price: | Negotiable |
Packaging Details: | Giftbox + Carton box |
Delivery Time: | 4 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 500PCS/ WEEK |
CPU: | Realtek RTL8198C | RAM: | 512MB |
---|---|---|---|
Material: | Metal | Flash: | 128MB |
Port: | 5*Gigabit Port | Power: | AC100`240V |
Szie: | 294mm X 180mm X 44mm | Power Consumption: | < 10W |
High Light: | wifi lan controller,wireless access point controller |
200pcs AP suppoted Mulit - Wan Intelligent Gateway Wifi Wireless Access Point
AC1800 is a middle and small scale enterprise use authentication gateway, with Gigabit WAN ports up to 4, improved the Ethernet speed and increased the concurrent end users to 200; It can access into cloud server for remote management and multiple captive portal authentication such as SMS, Facebook, Google, member login method, to apply this device into shopping mall, restaurant for advertisement and second time selling. Besides that, AC1800 is an AC controller to manage, control and monitor 200PCS wireless access point in the same networking diagram simultaneous, very easy to set up this desktop AC controller, then to keep the whole networking stability and save human and transportation cost.
Features:
WEB management interface, and support remote management.
AC1800 support WEB management interface and WEB remote management, we also can configure and manage AC1800 even in another city at any time, Greatly facilitates the adminstrator to maintain a stable network then monitor the AP's working status, greatly saves human, transportation costs
Full Gigabit ports, work as enterprise router in a network
Supports PPPoE, Static IP, Dynamic IP and PPTP, with 5*10/100/1000Mbps RJ45 Port, AC1800 can connect with ADSL/Fiber networking then work as gigabit router in residential or some business area.
Multiple security modes to protect network safety
AC1800 support Tag VLAN binding based on wireless network (SSID), make different wireless network (SSID) to binding different VLAN ID, realize the communication isolation in different wireless networks,to protect networking safety. In addition, AC1800 support multi firewall functions like IP filter,MAC filter, URL filter, port forwarding, DMZ, to allow compliant users to access the wireless network, and ensure that special network application such as FTP, H.323, IPSec/ PPTP VPN, to further protect network security.
Smart Quality of Service(QoS) function
Based on the IEEE 802.11e standard, it provides basic Quality of Service(QoS) features to end users according to IP/MAC address; Besides that, it can control the flow after set priority for instant messaging service, download, video or office
Low power consumption, energy saving and environment protection
AC1800’s running power consumption is lower than 5W, low heat, energy saving and environment protection, can prolong it operation life
Spec:
Hardware Data | |
Model | AC1800 |
QTY of manageable AP | 100PCS max |
CPU | RTL8198C |
FLAH | 128M |
DDR3 | 512M |
Interface |
1*10/100/1000M Gigabit WAN Port, 4*10/100/1000M Gigabit LAN Ports in default; |
Dimension | 294mm X 180mm X 44mm |
Power | 100-240V~ 50/60Hz |
power consumption | < 10W |
Weight | <1.5KGS |
Working Temperature | -10℃~ 50℃ |
Working Humanity | 10% ~ 90%RH (No condensation) |
Storage Temperature | -40℃ ~ 70℃ |
Storage Humanity | 5% ~ 90%RH (No condensation) |
Working Diagram:

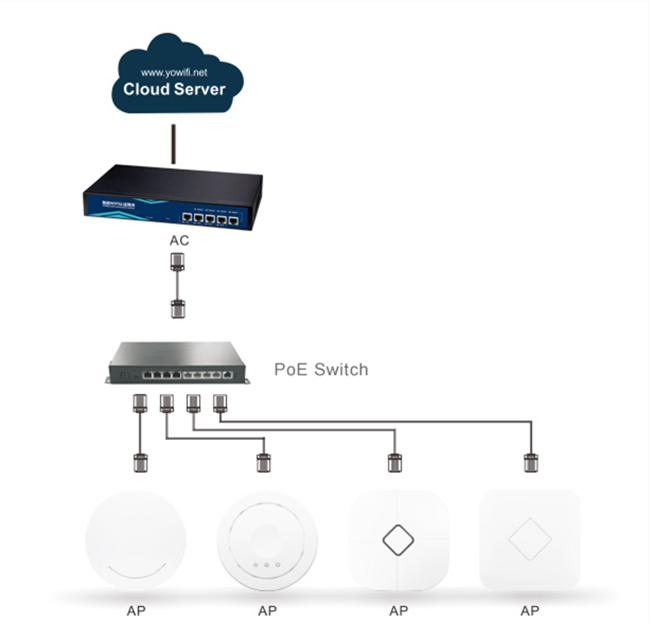

1. Working as AC controller

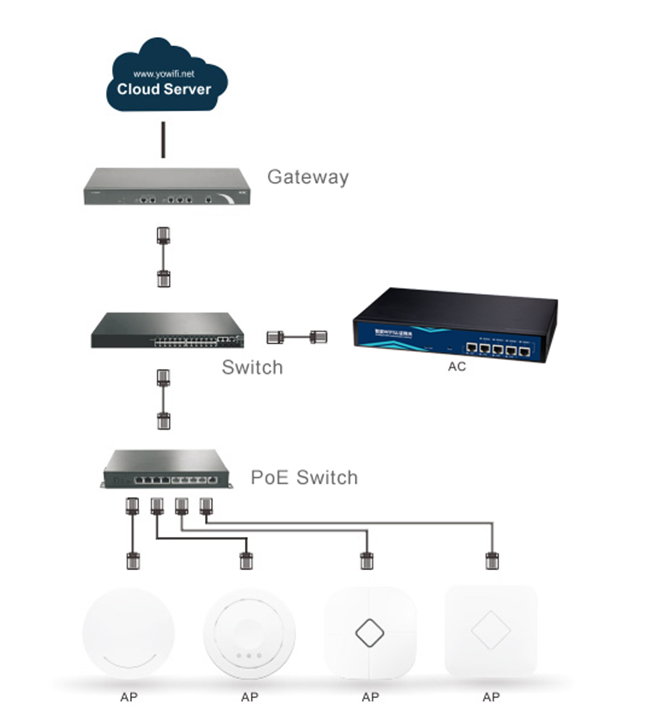

2. Working as Gateway and AC Controller
