| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | HW-AP20Q |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 PCS/ WEEK |
| Material: | Metal | Chipset: | Qualcomm QCA9531 |
|---|---|---|---|
| Band: | 2.4GHz-2.483GHz | Flash: | 16M |
| RAM: | 128M | Power: | 500mW |
| High Light: | outdoor wireless ap,access point base station |
||

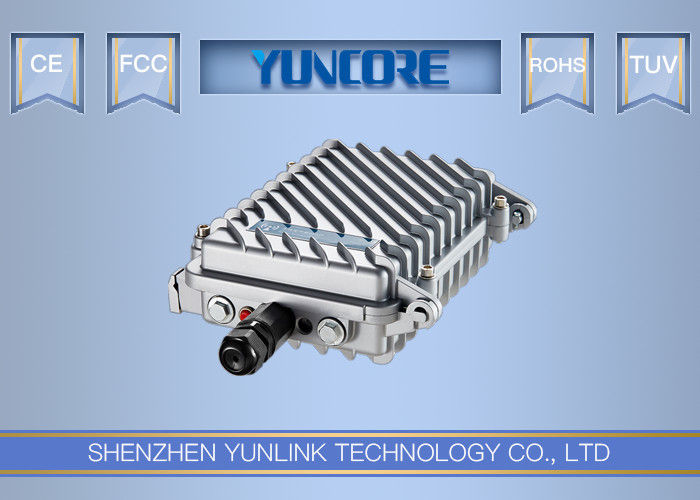

2.4G 300Mbps Metal Case with 2 N Female Antenna Connectors Outdoor Wireless Base Station
HW-AP20Q is an Qualcomm Chipset Outdoor wireless AP/CPE. It comply with IEEE 802.11b/g/n standard, 300Mbps high speed, with N type antenna connector, 800mW high power for wider outdoor wifi range.
It support wireless AP, Gateway, WiFi Repeater, Bridge, WISP, WDS operation mode, then with N type connector for detachable omni/panel antenna, user can flexibly choose a suitable wireless mode to build or extend the wireless networking based on exist networking structure.
HW-AP20Q with metal waterproof, dustproof and sunscreen shell, temperature adaptive and board protective to work in harsh outdoor environment, meanwhile, the auxiliary cooling function make HW-AP20Q work normal at -20℃ to 55℃.
HW-AP20Q support special frequency from 2.312GHz to 2.4835GHz, total 27 channels to avoid the WiFi Interference, to guarantee the stable wireless connection.
Meantime, it support Power over Ethernet, support passive PoE, easy in setup even no power socket nearby.
Last and important, HW-AP20Q work with Yuncore’s AC controller for central management under wireless AP operation mode, then can work with cloud server for captive portal authentication or advertisement when AC controller or HW-AP20Q under gateway operation mode.
Spec:
| Specification: | |
| Hardware: | |
| Chipset | Qualcomm QCA9531 |
| Wireless | 802.11N, 2T2R 300M MIMO Technology |
| Memory | 64MB DDR2 RAM (128MB available by extra cost) |
| Flash | 16MB |
| Interface | 1* 10/100 Mbps RJ45 Port, support 12~24V PoE |
| 1 * Reset Button | |
| Antenna | N Connector, can connect with panel antenna/omni antenna |
| LED Light | Power, WiFi |
| Size | L: 153.2mm, W: 79.5mm, H: 234.5 mm |
| Power | POE 24V/1A (48V PoE is optional);110V/220V |
| RF Date: | |
| Frequency | 802.11b/g/n: |
| 2.312GHz to 2.4835GHz | |
| Korea, Japan, ETSI, FCC, Debug | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Data Rate | 300 Mbps |
| Receive Sensitivity |
802.11n: -70dbm@MCS7, -88dbm@MCS0. 802.11g: -72dbm@54Mbps, -88dbm@6Mbps. 802.11b: -85dbm@11Mbps, -94dbm@1Mbps. |
| RF Output Power |
802.11n: @MCS7:25±2DB, @MCS0:27±2DB. 802.11g: @54M:26±2DB, @6M:28±2DB. 802.11b: @11M:27±2DB, @1M:29±2DB |
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
| PPM | ±20ppm |
Working Diagram:
