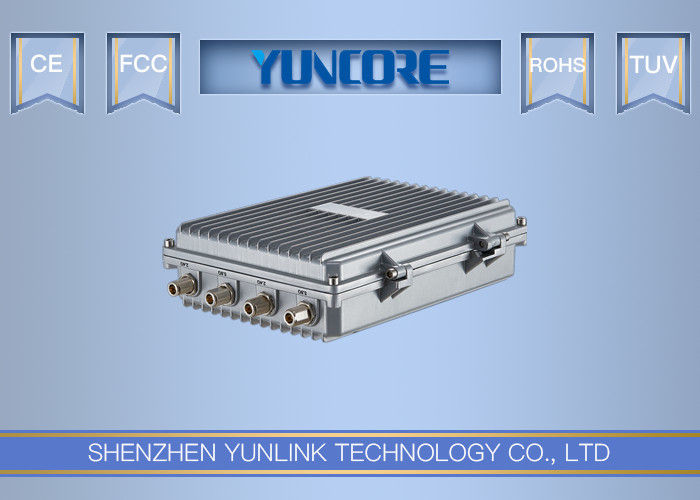

Metal Case 802.11 AC Access Point Bridge 1200Mbps 48V Active PoE Support

Metal Case 802.11 AC Access Point Bridge 1200Mbps 48V Active PoE Support

Metal Case 802.11 AC Access Point Bridge 1200Mbps 48V Active PoE Support

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: HW-AP70

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: Metal Chipset: Realtek RTL8197
Band: 2.4G + 5.8G Flash: 16M
RAM: 128M Power: 1000mW

1200Mbps 48V Active PoE Support Realtek Chipset Metal Case 802.11 ac Outdoor Wireless AP



HW-AP70 is an 11ac high power industrial use Outdoor wireless access point, with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN port, fast Ethernet data rate make more than 100 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.

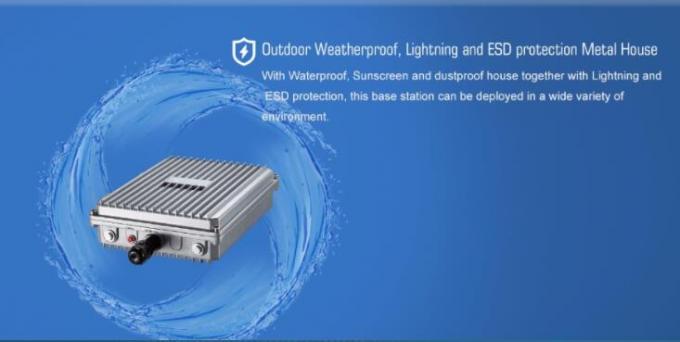

Metal waterproof, dust proof and sunscreen shell, temperature adaptive and board protective


HW-AP70 with metal waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -40℃ to 55℃. Suit for any country.

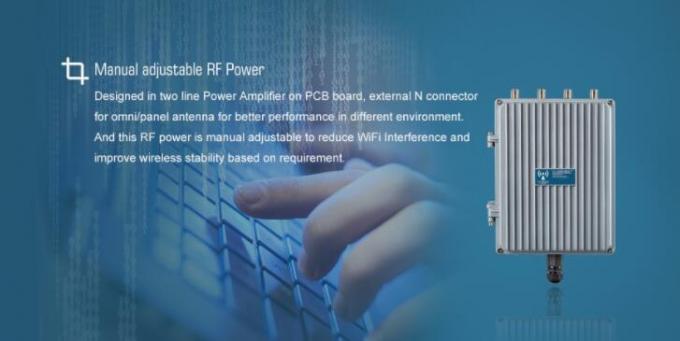

High Power for more range and stable signal


Designed in two line Power Amplifier on PCB board, the power can be 1000mW high power, 4PCS SMA Connector for omni/panel antenna, to expand more Wi-Fi range and greatly to improve the stability Wi-Fi signal for users.



Power over Ethernet


HW-AP70 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.



Access Controller System & Cloud Management System


Work with WLAN controller in wireless AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....



Then work with Cloud Management System, easy to do central and remote management, advertisement and multi authentication make this device more professional in Wi-Fi Projects.



Main Features:


Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
1 10/100/1000Mbps WAN Port,faster Ethernet.
1000mW high power, can connect with external antenna for stronger signal strength and more wireless coverage, 16M Flash, 128M DDR2 RAM, more user, more stable
Support IEEE 802.3at PoE standard
Support SSID broadcasting, Multi SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
With function of build in firewall, IP filter, URL filter and MAC filter
Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security



Spec:



Hardware:
Chipset RTL8197DN+RTL8812AR+RTL8192ER+RTL8211E
Standard 802.11ac/b/g/n, MIMO technology
Memory 128MB DDR2 RAM
Flash 16MB
Interface 1 * 10/100 /1000Mbps RJ45 WAN Port
1 * Reset button, press 15 seconds to revert to default setting
Antenna 4PCS SMA Connector
Power consumption 48V PoE<30W
Weight 4KGS
RF Data
Frequency 2.4G:802.11b/g/n: 5GHz: 802.11a/n/ac
2.4GHz,5GHz
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Throughput 1200Mbps
RF Power

2.4G: 11n @MCS7:24±2DB, @MCS0:26±2DB.

11g @54M:25±2DB, @6M:27±2DB.

11b @11M:26±2DB, @1M:28±2DB.

5.8G: 11a @54M 23±2DB, @6M 26±2DB.

11n @HT20:MCS7 22±2DB, @MCS0 25±2DB.

11ac@HT80:MCS9 20±2DB, @MCS0 23±2DB.

Receive Sensitivity

2.4G: 11n: -70dbm@MCS7, -88dbm@MCS0.

11g: -72dbm@54Mbps, -88dbm@6Mbps.

11b: -85dbm@11Mbps, -94dbm@1Mbps.

5.8G: 11a: -72dbm@54Mbps, -90dbm@6Mbps.

11n@HT20: -70dbm@MCS7, -90dbm@MCS0.

11ac@HT80:-60dbm@MCS9, -86dbm@MCS0.

EVM

802.11n: ≤-28 DB

802.11g: ≤-25 DB

802.11b: ≤-10 DB

802.11a: ≤-25 DB

PPM ±20ppm
Max Users 128
Firmware Features:
Operation mode Wireless AP, Gateway, WISP, Wi-Fi Repeater
WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SSID Multiple SSID (4 SSID for 2.4G, 4 SSID for 5.8G)
Firewall DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols IPv4
Others:
Package Contents

1200Mbps Dual Band Outdoor Wireless AP

Ethernet Cable

Quick Installation Guide

Setting Accessory

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment

Operating Temperature: -40~55 ℃

Storage Temperature: -40~70 ℃
Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing

Management Firmware GUI , Remote Management, WLAN Controller, Cloud Management System

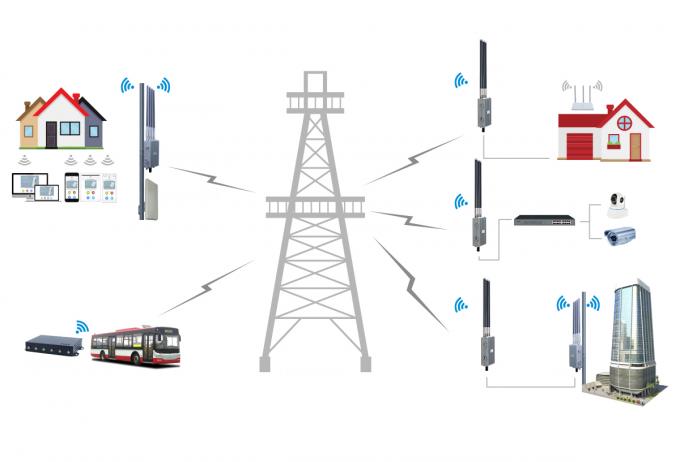

Working Diagram:

Metal Case 802.11 AC Access Point Bridge 1200Mbps 48V Active PoE Support

Metal Case 802.11 AC Access Point Bridge 1200Mbps 48V Active PoE Support

Metal Case 802.11 AC Access Point Bridge 1200Mbps 48V Active PoE Support
