Hotel PoE Ceiling Mounted Wifi Access Point 2.4G 24V 500mW High Power

What It Does

A930-P24 is a 300Mbps high power Ceiling Wireless Access Point with Qualcomm QCA9531 Chipset. Comply with IEEE 802.11b/g/n standard, 300Mbps data rate, with MIMO omni antenna inside, 500mW high RF power together with 24V passive PoE, easy to set up in different environment.

Ceiling Mount case, Hardware with Qualcomm chipset, 16M Flash, 64M DDR2, firmware work with AC controller for central management and captive portal authentication function, it designed specifically for business-class environments such as hotels, airports, coffee shops, shopping centers, sporting venues, and university campus.

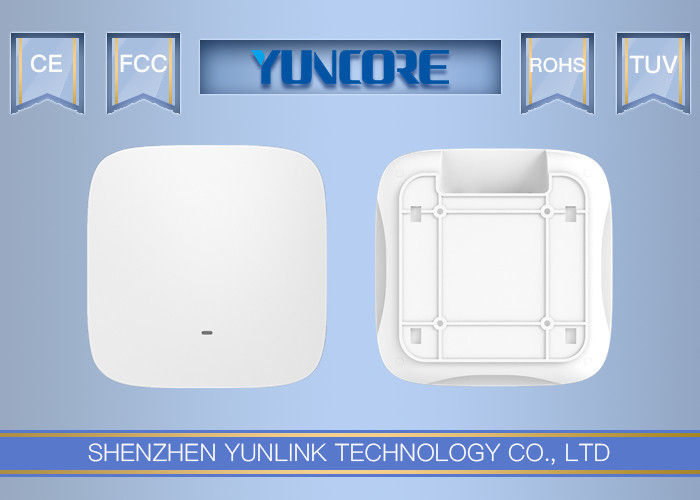

Stylish Ceiling Mount Design

Housed in a stylish ceiling mountable case, the A930 can be installed on a wall or ceiling to blends in nicely with most interior decorations in a modern hotel. With big space and Installed highly on ceiling, it extends optimum wireless signal to multiple neighboring rooms and better heat radiation.

High Power and Whole Coverage

With 500mW high power, Internally equipped with 2X2 multiple-input, multiple-output (MIMO) 5dBi omni antennas improve range and maximize data rates. Field tested to wirelessly cover 6~8 hotel rooms at an indoor operating distance of 50 meters and allow simultaneous accesses by up to 50 users. Up to 300Mbps wireless rate ensures multiple users an adequate level of service.

Power over Ethernet

The device has integrated Power over Ethernet (PoE) for easy installation and lower cost, with 24V passive PoE, it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

WLAN Controller & Cloud Server support

This A930-P24 work with Access Control System, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore...

What’s more, this wireless access point work with Cloud Server, easy to do remote management, Advertisement, captive portal authentication, even Billing and Radius supported in the near future, which make this AP more professional in WiFi Projects.

Spec:
