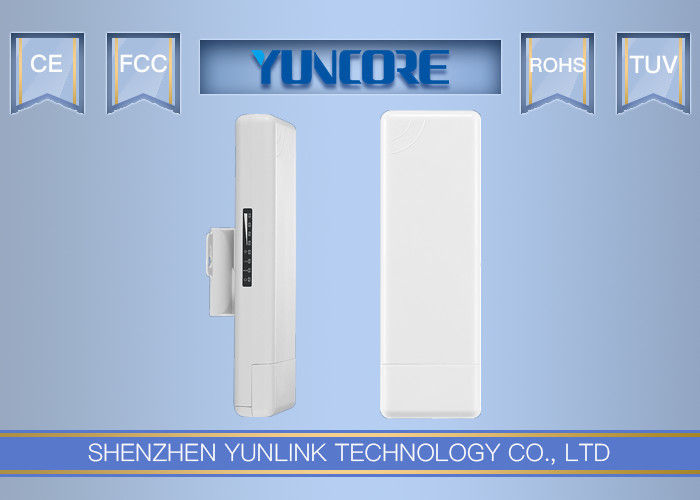

PTP PTmP 5KM 5.8 GHz Outdoor CPE 11AC CPE430 Wireless AP / Client

PTP PTmP 5KM 5.8 GHz Outdoor CPE 11AC CPE430 Wireless AP / Client

PTP PTmP 5KM 5.8 GHz Outdoor CPE 11AC CPE430 Wireless AP / Client

Product Details:

Place of Origin: China
Brand Name: Yuncore
Certification: CE,FCC,ROHS
Model Number: CPE430

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Giftbox + Carton box
Delivery Time: 4 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 PCS/ WEEK
Contact Now
Detailed Product Description
Material: ABS Chipset: Realtek RTL8881AN
Flash: 8M RAM: 64M
Port: 1 * 10/100Mbps WAN, 1 * 10/100Mbps LAN Antenna: 15 DBi Panel Antenna
High Light:

wireless outdoor cpe

,

5.8 ghz wireless bridge

450Mbps 300mW 14dBi Panel Antenna PTP PTmP 5KM 5.8G Outdoor Wireless AP / Wireless Client



CPE-430SR is an high power industrial 5G outdoor CPE but very competitive price in the market. It comply with 802.11ac Wi-Fi standard, but single band in 5G, Ethernet data rate up to 450Mbps, faster than 802.11a/n products, it make more than 50 end users or 16+ IP camera can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks.



433Mbps Data Rate


CPE-430SR features 802.11ac Wi-Fi and MIMO technology, 450Mbps wireless speed ensures high speed internet access and more end users access.



High Power and High Gain Antenna for more range


Designed in Power Amplifier on PCB board, the power can be 300mW high power, 12dBi MIMO high gain antenna, increase the WiFi range to 2KMs distance and supply the stable WiFi signal for users.



Power over Ethernet


CPE-430SR has integrated passive Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.



Access Controller System & Cloud Management System


With Access Control System under AP operation mode, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore....



Then work with Cloud Management System, easy to do central and remote management, advertisement and multiple authentication make this AP more professional in WiFi Projects.



Main Features:


Comply with IEEE 802.11ac/a standard, 5G,450Mbps Data Rate
1*10/100/100Mbps WAN Port,1*10/100Mbps LAN Port
300mW high power, build in 12dBi MIMO panel antenna, stronger signal strength, more wireless coverage
Support passive PoE
Support SSID broadcasting, Multi SSID up to 4
Support Gateway (PPPOE, static IP, dynamic IP), Wireless AP, Repeater, WISP operation mode
With function of build in firewall, IP filter, URL filter and MAC filter
Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security



Spec:



Hardware:
Chipset RTL8881AN
Standard 802.11ac/a/n
Memory 64MB DDR2 RAM
Flash 8MB
Interface 1 * 10/100Mbps RJ45 WAN Port
1 * 10/100 Mbps RJ45 LAN Port
1 * WDS Switch Button for WDS Connection
1 * DC Injector
1 * Reset button, press 15 seconds to revert to default setting
Antenna Build in 12dBi MIMO Panel Antenna
Power consumption 24V PoE<17W
Size L 230mm, W: 75mm, H: 40mm
RF Data





Frequency

5GHz: 802.11a/n/ac
5GHz
Country code FCC,IC,ETSI,MKK,MKK1,MKK2,MKK3,NCC,RUSSIAN,CN
Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Throughput 450 Mbps
RF Power

802.11a:54M 20±2DB,6M 23±2DB.

802.11n HT20:MCS7 19±2DB, MCS0 22±2DB.

802.11n HT40:MCS7 18±2DB, MCS0 21±2DB.

802.11ac HT80:MCS9 18±2DB, MCS0 21±2DB.

Receive Sensitivity

802.11a: -72dbm@54Mbps; -90dbm@6Mbps.

802.11n HT20: -70dbm@MCS7, -90dbm@MCS0 .

802.11n HT40: -66dbm@MCS7, -90dbm@MCS0 .

802.11ac HT80:-60dbm@MCS9, -86dbm@MCS0 .

EVM

802.11a: ≤-25 DB

802.11n: ≤-28 DB

802.11ac: ≤-28 DB

PPM ±20ppm

Firmware Features:
Operation mode Wireless AP, Gateway, WISP, WiFi Repeater, WDS
WAN Type Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless Security 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
SSID Multiple SSID up to 4
Firewall DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols IPv4
Others:
Package Contents

450Mbps Outdoor CPE

Ethernet Cable

Quick Installation Guide

Setting Accessory

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Environment

Operating Temperature: -40~55 ℃

Storage Temperature: -40~70 ℃
Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Management Firmware GUI ,Remote Management, WLAN Controller, Cloud Management System

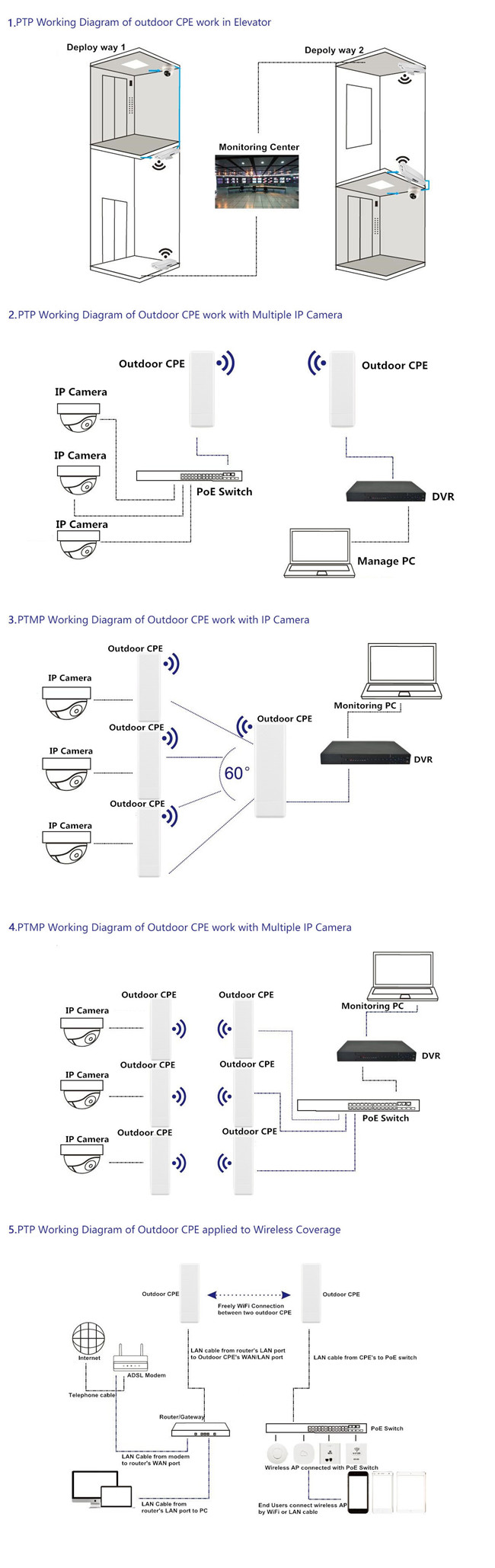

Working Diagram:

PTP PTmP 5KM 5.8 GHz Outdoor CPE 11AC CPE430 Wireless AP / Client
