| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | CPE130 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000PCS/ WEEK |
| Material: | ABS | Chipset: | QCA9531 |
|---|---|---|---|
| Flash: | 16M | RAM: | 64M |
| WiFi Standard: | IEEE802.11b/g/n | PoE: | 24V Passive |
| High Light: | 2.4 ghz wireless cpe,wireless wifi bridge |
||

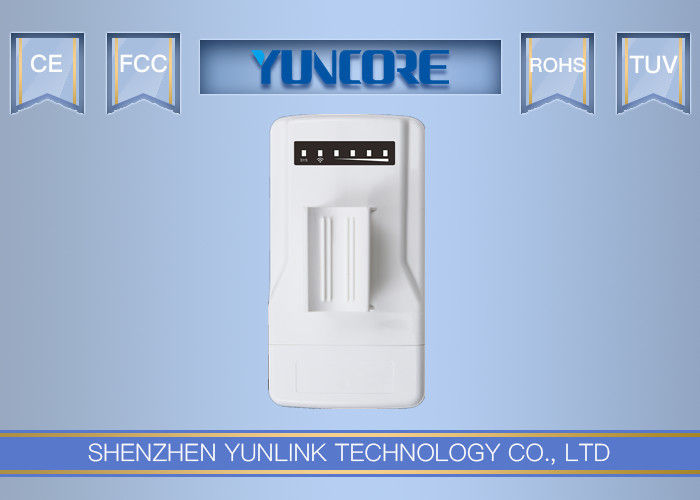

Qualcomm Solution 300mW Outdoor Wireless Client 300Mbps Data Rate 2.4 GHz Outdoor CPE
CPE130 is an economic type high power 300Mbps outdoor CPE/AP. Comply with IEEE 802.11b/g/n standard, adopt AR9531chipset, 300mW high power and 11dBi dual polarized high gain antenna, the PTP/PTMP distance is more than 2000 meters.
It support Wireless AP, Gateway, WISP, Wireless Bridge, WDS operation mode, then there is a WDS switch button on the case, very easy to do the WDS PTP/PTMP connection by press the WDS switch button and reset button, zero configuration, save much human work and cost, more professional in outdoor wireless networking solution.
And it support special frequency from 2.312GHz to 2.4835GHz, total 27 channels, together with WiFi channel analysis tool, it make this outdoor CPE choose the best channel to avoid the WiFi Interference, to guarantee the stable wireless connection.
CPE130 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive, Meantime, it support 24V passive PoE, easy in setup even no power socket nearby, ideal for outdoor use;
Besides that, CPE-130 with LED signal light to show signal strength, easy to find a suitable place of outdoor CPE even in long range distance; Firmware comply with AC controller system and Cloud Management System, which helpful in central management and data setting, to implement Advertisement and authentication function, save much human work and cost, more professional in outdoor wireless networking solution.
Spec:
|
Specification: |
|
| Hardware: | |
| Chipset | Qualcomm QCA 9531 |
| Wireless | 802.11N, 2T2R 300M MIMO Technology |
| Memory | 64MB DDR2 RAM (128MB available by extra cost) |
| Flash | 16MB |
| Interface | 1*10/100Mbps RJ45 Port, support 12~24V PoE |
| 1*WDS Switch Button | |
| 1 Reset Button | |
| Antenna | 11dBi Panel Antenna, V: 60o L: 33o |
| LED Light | SYS, WIFI, Signal Strength |
| Size | 176*95*40MM |
| Power | POE 24V/0.5A |
| RF Data | |
| RF Data | 802.11b/g/n: |
| 2.312GHz to 2.4835GHz | |
| Korea, Japan, ETSI, FCC, Debug | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Data Rate | 300 Mbps |
| RF Power |
802.11n:19±2 DB 802.11g:20±2 DB 802.11b:22±2 DB . |
| Receive Sensitivity |
802.11n: -88dbm@MCS0,-65dbm@MCS7 802.11g: -88dbm@6Mbps;-70dbm@54Mbps 802.11b: -94dbm@1Mbps; -80dbm@11Mbps |
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
| PPM | ±20ppm |
| End Users | 64 |
Working Diagram:
