| Place of Origin: | China |
| Brand Name: | Yuncore |
| Certification: | CE,FCC,ROHS |
| Model Number: | CPE100 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Giftbox + Carton box |
| Delivery Time: | 4 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000PCS/ WEEK |
| Material: | ABS | Chipset: | QCA9531 |
|---|---|---|---|
| Flash: | 16M | RAM: | 64M |
| WiFi Standard: | IEEE802.11b/g/n | PoE: | 24V Passive |
| High Light: | 2.4 ghz wireless cpe,outdoor wifi repeater |
||

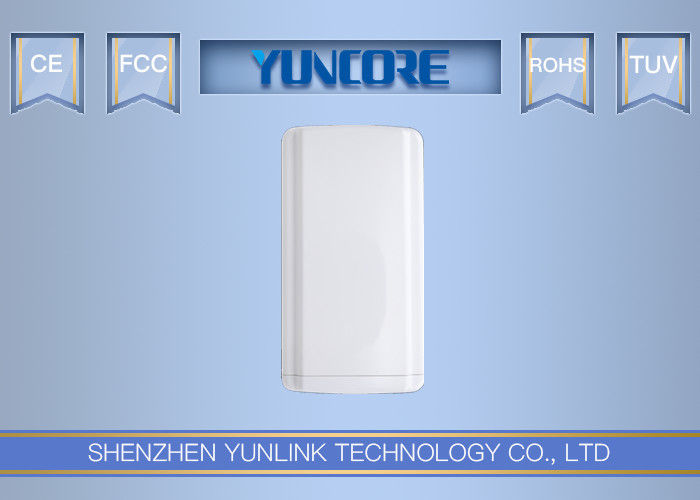

150Mbps 300mW Outdoor Wireless Repeater WDS Support 2.4GHz Outdoor WiFi Transmitter and Receiver
CPE100 is an economic high power outdoor CPE/AP with 150Mbps data rate. Comply with IEEE 802.11b/g/n standard, adopt Qualcomm QCA9531 chipset, 300mW high power with build in 11dBi panel antenna, the transmit/receive wireless distance more than 2000 meters.
It support Wireless AP, Gateway, WISP, Wireless Bridge, WDS operation mode, then there is a WDS switch button on the case, very easy to do the WDS PTP/PTMP connection by press the WDS switch button and reset button, zero configuration, save much human work and cost, more professional in outdoor wireless networking solution.
And it support special frequency from 2.312GHz to 2.4835GHz, total 27 channels to avoid the WiFi Interference, to guarantee the stable wireless connection.
CPE100 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive, Meantime, it support 24V passive PoE, easy in setup even no power socket nearby, ideal for outdoor use;
Besides that, CPE100 with LED signal light to show signal strength, easy to find a suitable place of outdoor CPE even in long range, then it with WiFi Channel Analysis Too help it work in best channel to avoid WiFi interface, improved the performance and save much human work and cost, more professional in outdoor wireless networking solution.
Spec:
|
Specification: |
|
| Hardware: | |
| Chipset | Qualcomm QCA9531 |
| Wireless | 802.11N, 2T2R 150M MIMO Technology |
| Memory | 64MB RAM |
| Flash | 16MB Flash |
| Interface | 1*10/100 Mbps RJ45 Port, support 12~24V PoE |
| 1 * WDS Switch Button | |
| 1 * DC Injector | |
| 1 * Reset Button | |
| Antenna | 11dBi Panel Antenna, V: 60o L: 33o |
| LED Light | SYS WIFI Signal strength |
| Size | 176*95*40MM |
| Power | POE: 24V/0.5A |
| RF Data | |
| Frequency | 802.11b/g/n: |
| 2.312GHz to 2.4835GHz | |
| Korea, Japan, ETSI, FCC, Debug | |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Data Rate | 150 Mbps |
| RF Power |
802.11n:19±2 DB 802.11g:20±2 DB 802.11b:22±2 DB . |
| Receive Sensitivity |
802.11n: -88dbm@MCS0,-65dbm@MCS7 802.11g: -88dbm@6Mbps;-70dbm@54Mbps 802.11b: -94dbm@1Mbps; -80dbm@11Mbps |
| EVM |
802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
| PPM | ±20ppm |
| End Users | 64 |
Working diagram:
